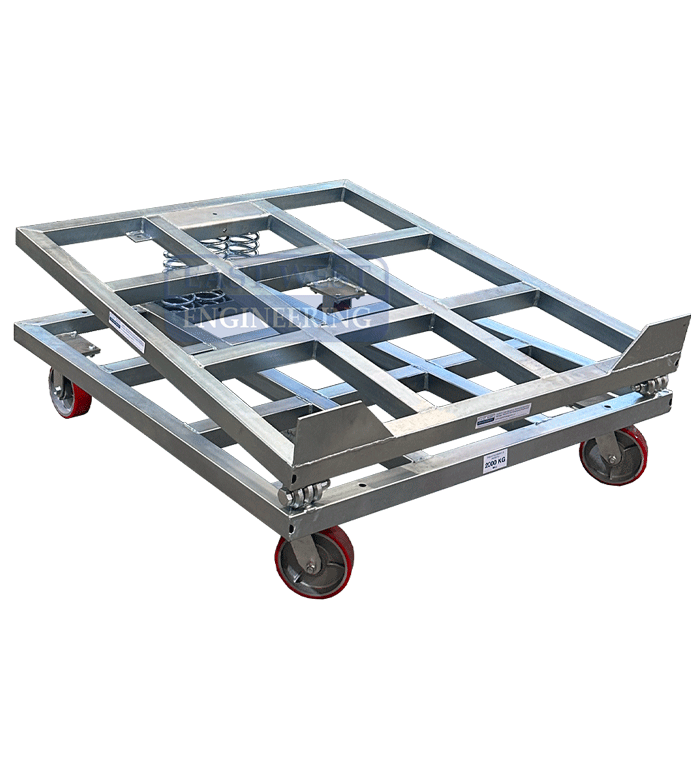

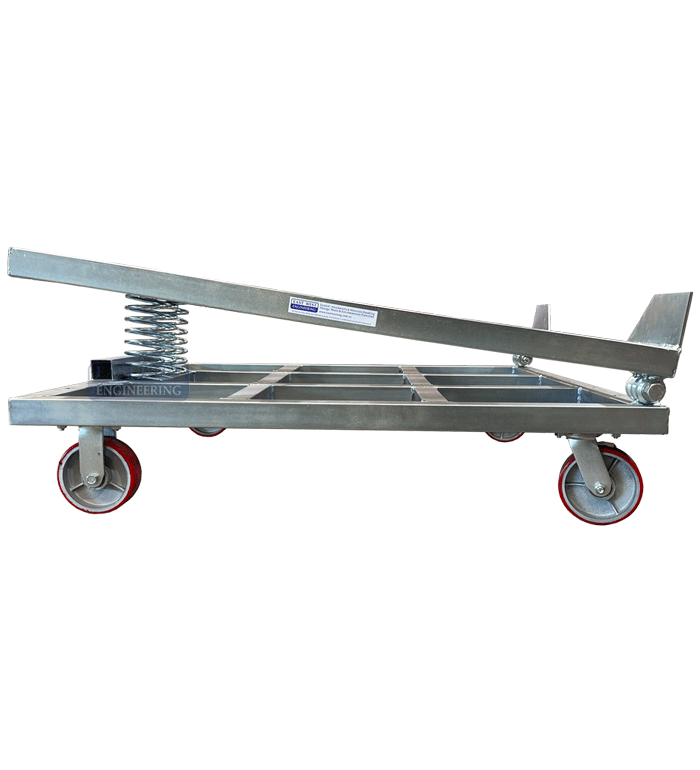

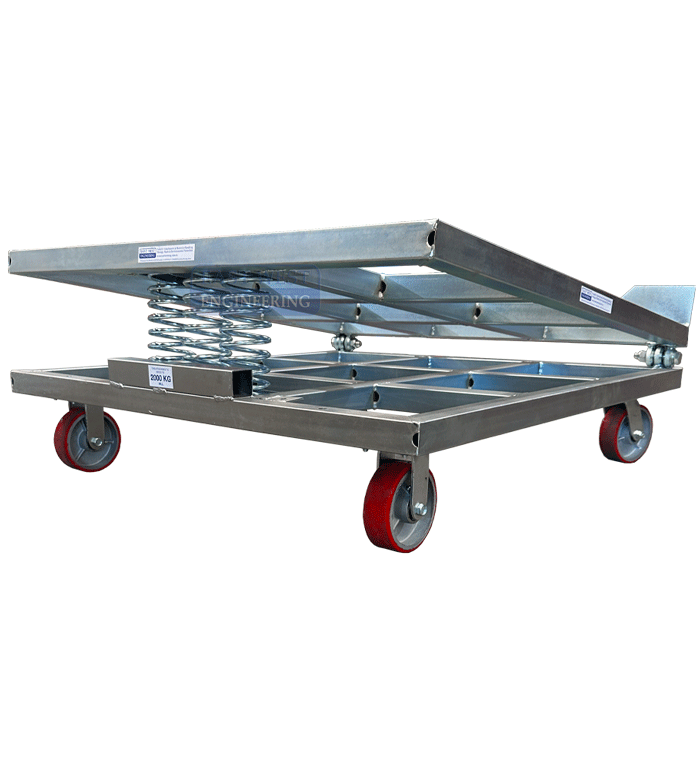

BTS10-W IBC Tilter - wheels

Add to Favourites

Quick Overview

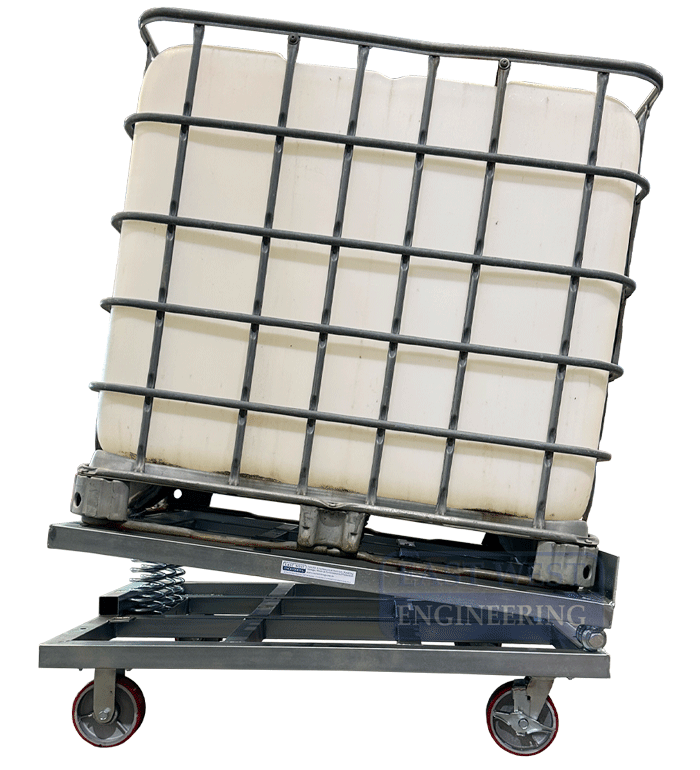

The mobile BTS10-W IBC Tilter is designed to effortlessly allow full discharge of liquid from intermediate bulk containers (IBC). As the volume of liquid contained in the IBC reduces the spring mechanism will raise the rear of the container to an incline of up to 10 degrees. Fitted with wheels, this unit can be wheeled around the workplace without the need for a forklift.

FEATURES:
• 10° tilt allows decanting directly from IBC
• Supplied with 3 springs (1-3 used depending on load weight)
• Easy access for a hose coupling to be attached to drain valve
• 150mm DIA wheels allow the IBC to be manually pushed around the workplace
• Available in model with removable fork pockets (BTS10) for easy positioning around the workplace by forklift
• Zinc finish

Included wheel kit is supplied for easy bolt together fitment onsite, not pre-fitted.

Details

	Working Load Limit (WLL)	2000kg
	Dimensions	1200 x 1130mm
	Wheels	150mm DIA, 2 fixed, 2 swivel with brakes
	Unit Weight	78kg
