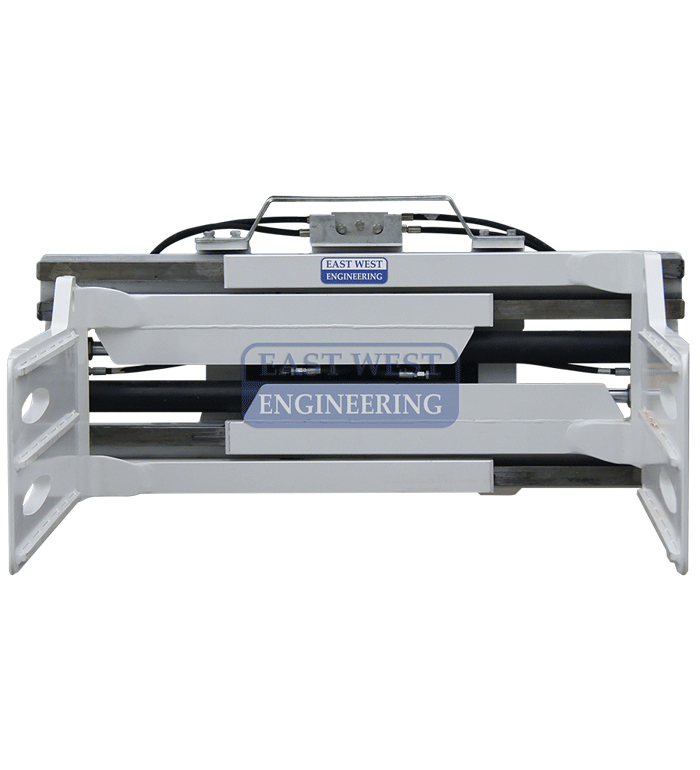

RBC Bale Clamp

Add to Favourites

Quick Overview

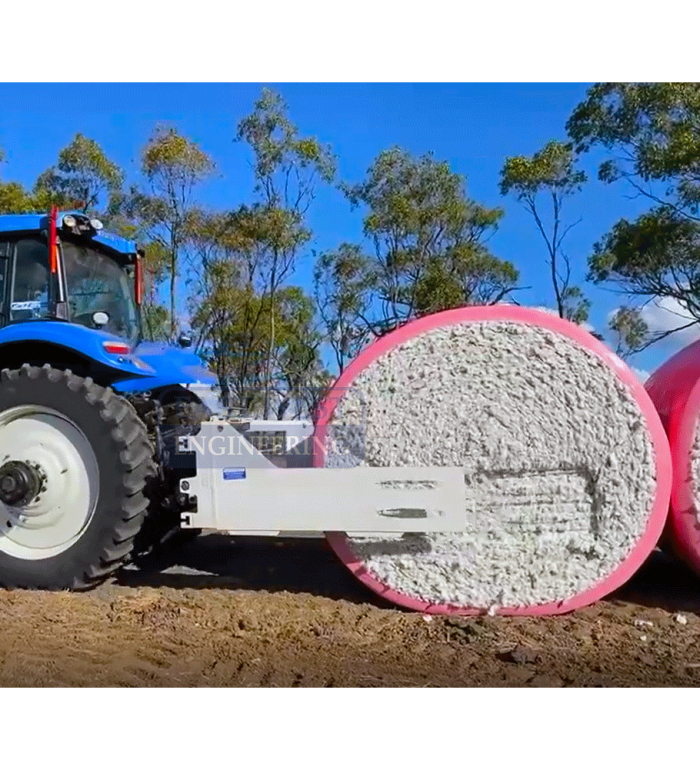

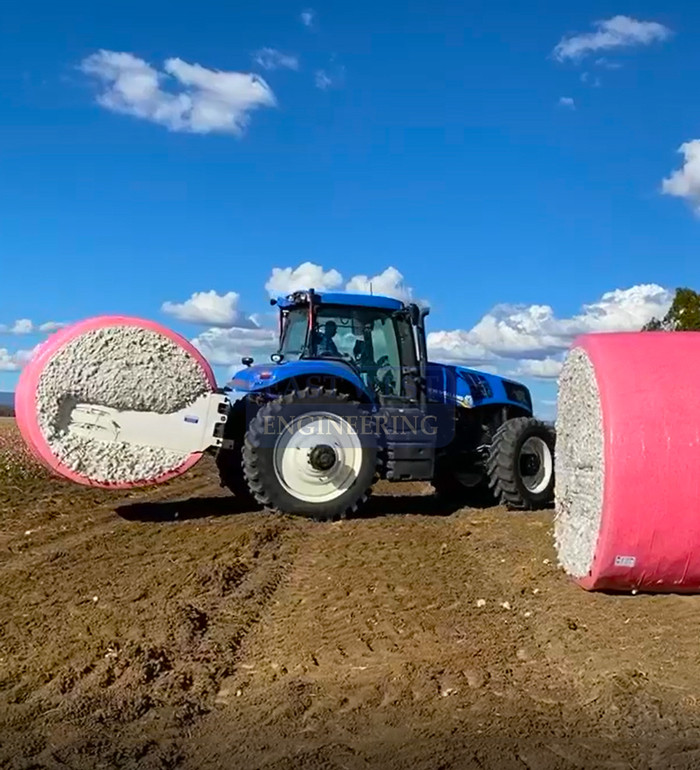

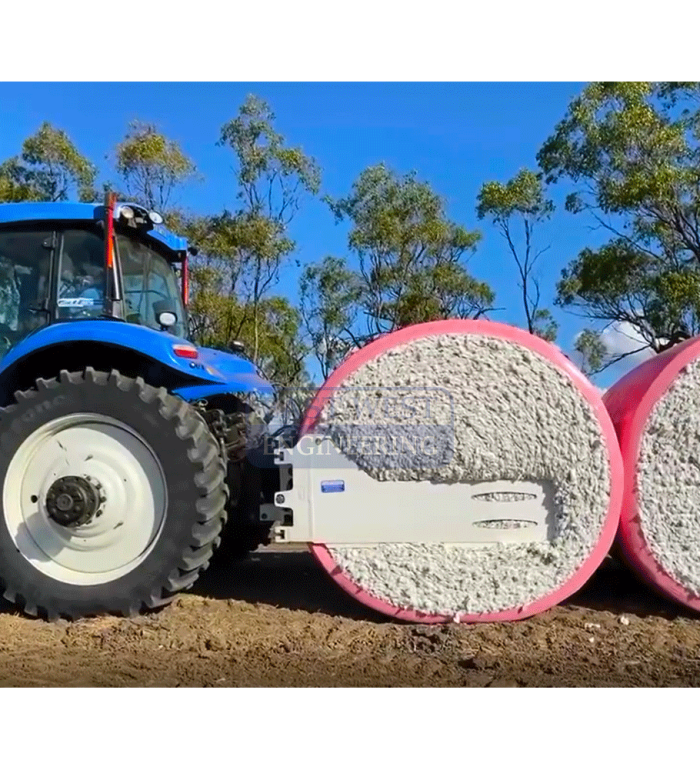

The RBC Bale Clamp range is designed to efficiently handle most baled products used in farming and agriculture. This includes bales of animal feed such as hay or raw materials such as cotton and wool.

FEATURES:
• Enables operator to clamp unpalletised loads
• Enhanced bale clamp includes reinforced structure for heavy duty use

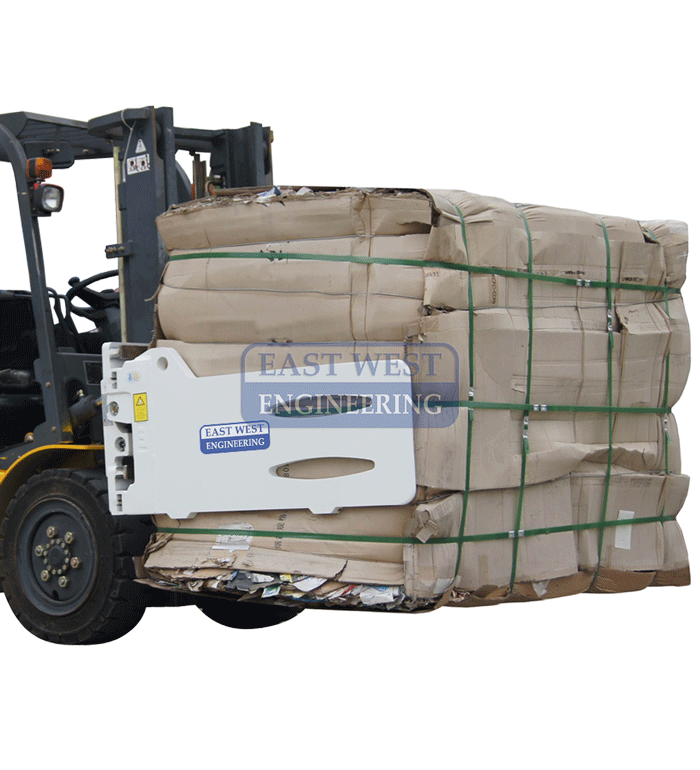

• Commonly used for handling baled products like waste paper, cotton, wool, hay, textile and metal scrap bales
• Lateral sliding arm design for smooth clamping and sideshifting function
• Ribbed arms for secure grip and handling of load
• Available in a wide range of openings and arm lengths
• Maximum residual capacity due to minimum weight and lost load
• Cylinder protection to prevent damage
• Robust design
• Sideshift function
• Wide range of hitches available for fitment to a tractor/loader

NOTE

• Please contact the forklift manufacturer for the residual capacity of attachment
• Two additional hydraulic circuits required
• Opening range refers to the distance between arm tips
• Supplied without hoses
• Further technical details available upon request, please call 1800 061 998

Details

Model	Capacity @ LC (kg @ mm)	Mounting Class	Opening Range (mm)	Arm Height (mm)	Arm Length (mm)	Frame Width (mm)	Arm Thickness (mm)	Lost Load (mm)	Unit Weight (mm)
RBC20D-B002	2000@500	II	450-1730	415	1180	1040	80	130	460
RBC20D-B004	2000@500	II	450-1730	415	780	1040	75	130	377
RBC20D-B007	2000@500	II/III	430-2260	415	1180	1600	80	130	545
RBC22D-C004	2200@500	II/III	490-2330	460	750	1600	75	146	610
RBC28D-C002	2800@500	III	580-1930	460	1180	1015	80	150	585
RBC28D-C004	2800@500	III	590-2110	460	1183	1200	80	150	620
RBC28D-C024	2800@500	III	490-2330	460	750	1600	75	150	610
Heavy Duty Range
RBC30F-C001	3000@500	III	750-2100	460	1200	1265	85	140	776
RBC30F-C002	3000@500	III	460-2300	460	1200	1680	85	140	857
RBC30F-C003	3000@500	III	530-1880	460	1200	1130	85	140	720
RBC30F-C006	3000@500	III	610-2450	460	1200	1680	85	140	845
RBC30F-C007	3000@500	III	520-1870	460	900	1130	75	140	660
RBC35F-D001	3500@600	IV	690-2760	460	1350	1700	90	162	1150
RBC52F-D004	3500@600	IV	660-2560	460	1600	1540	95	162	1220
RBC35F-D006	3500@600	IV	560-2630	460	1000	1820	95	162	1070
RBC35F-D007	3500@600	IV	560-2630	460	1500	1820	95	162	1240
RBC50F-D001	3500@600	IV	580-2500	460	1600	1650	95	182	1530

NOTE:

• Two additional hydraulic circuits required
• Opening range refers to the distance between arm tips
• Sideshift range: +/-100mm
• Hoses not included
• Please contact the forklift manufacturer for the residual capacity of attachment
• Further technical details available upon request, please call 1800 061 998
