CWM Concrete Moulds

Add to Favourites

Quick Overview

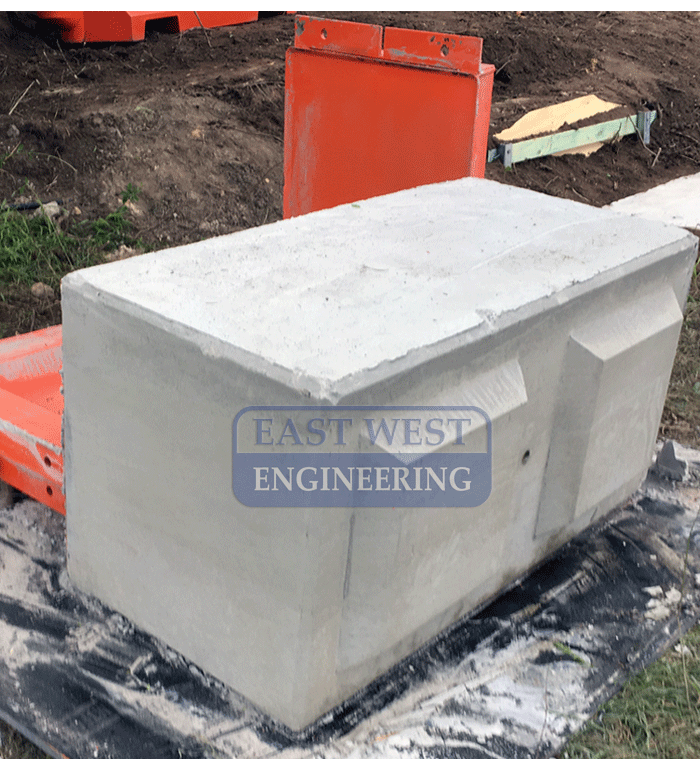

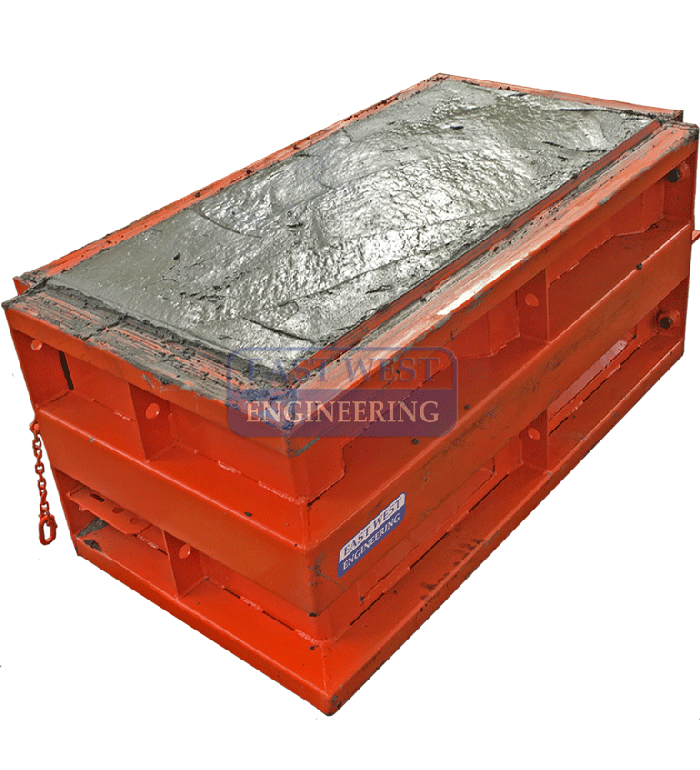

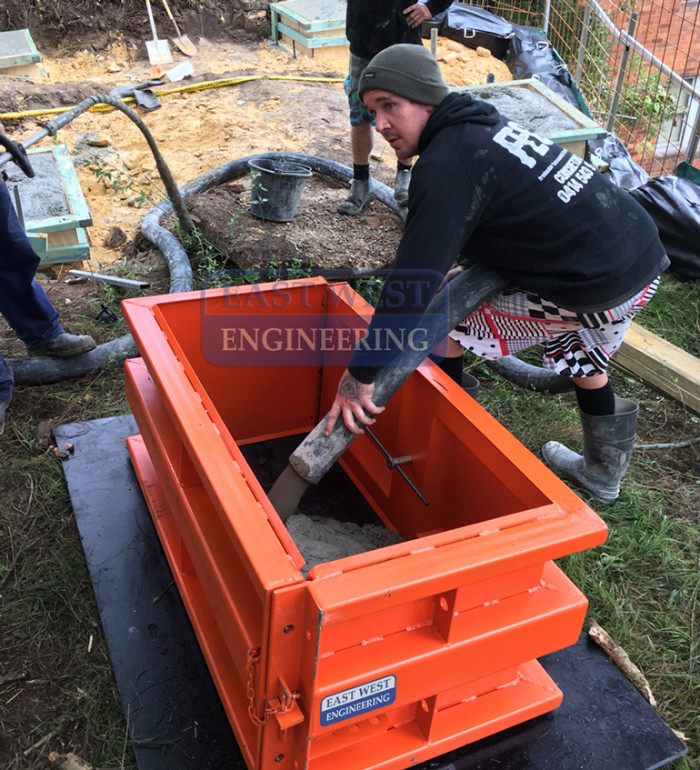

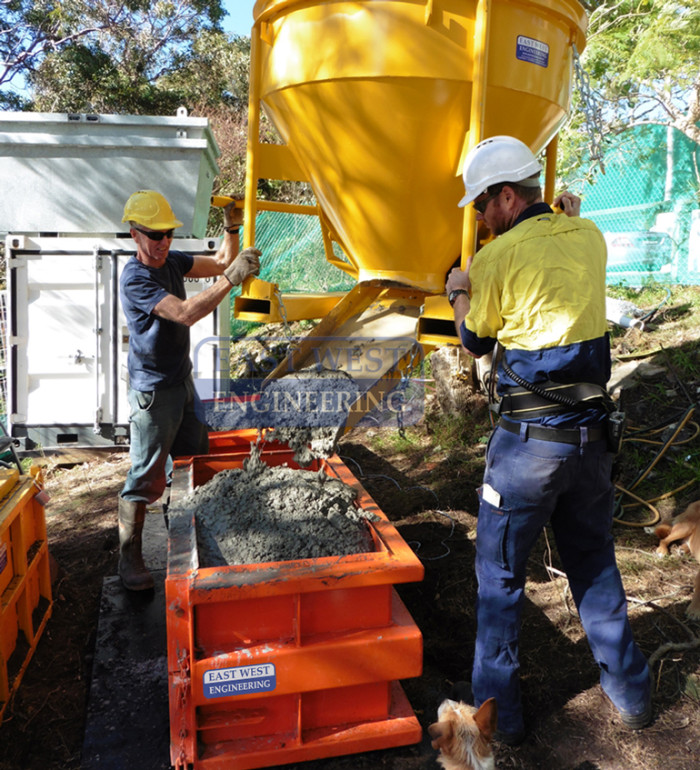

The CWM Concrete Moulds are designed to allow surplus concrete to be processed into concrete blocks, reducing the expense and waste of materials when disposing of leftover concrete at the end of day’s pour. Its simple construction and portable design make it the perfect solution for recycling leftover concrete on-site.

FEATURES:
• Simple construction is fast to assemble
• Lightweight & stackable design is easy to transfer between sites

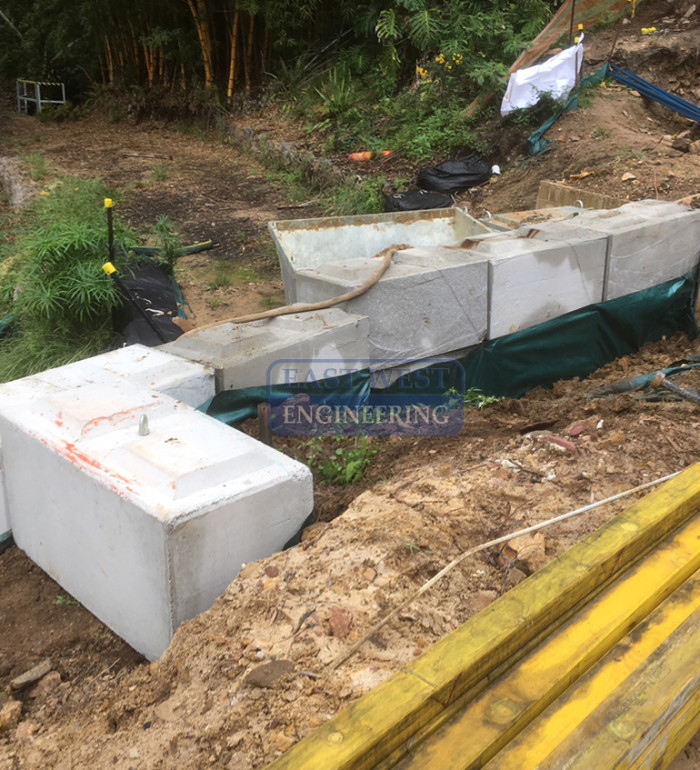

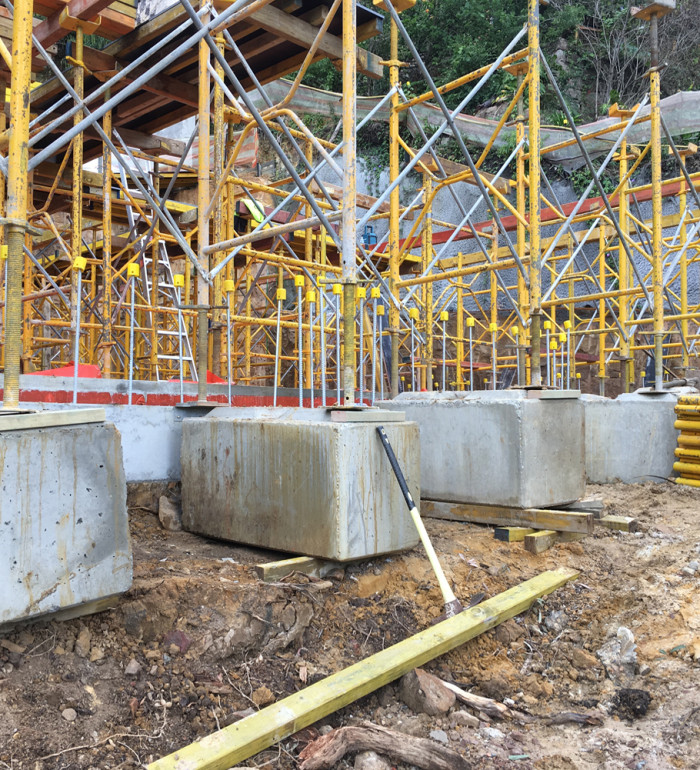

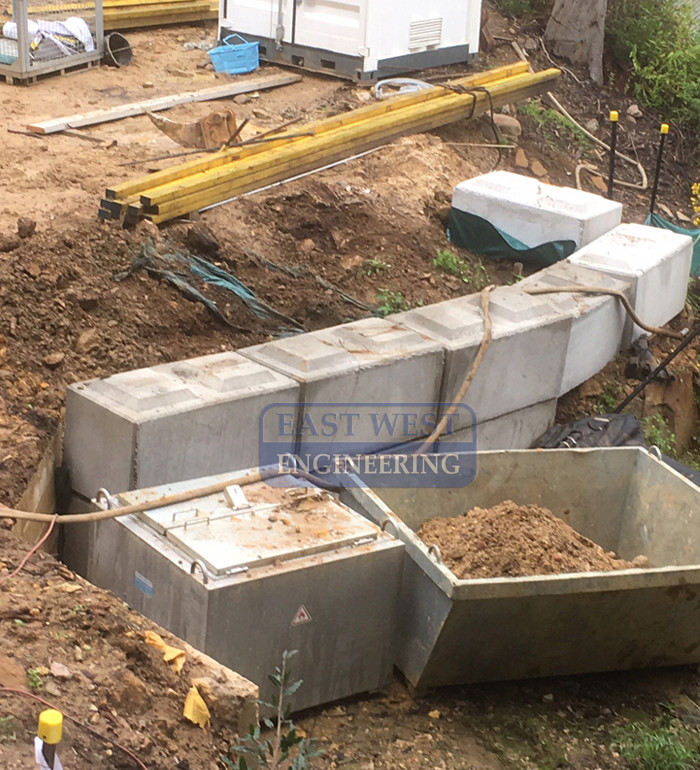

• Concrete blocks can be used as temporary foundation blocks, retaining walls, security blocks and anchor blocks for boat moorings

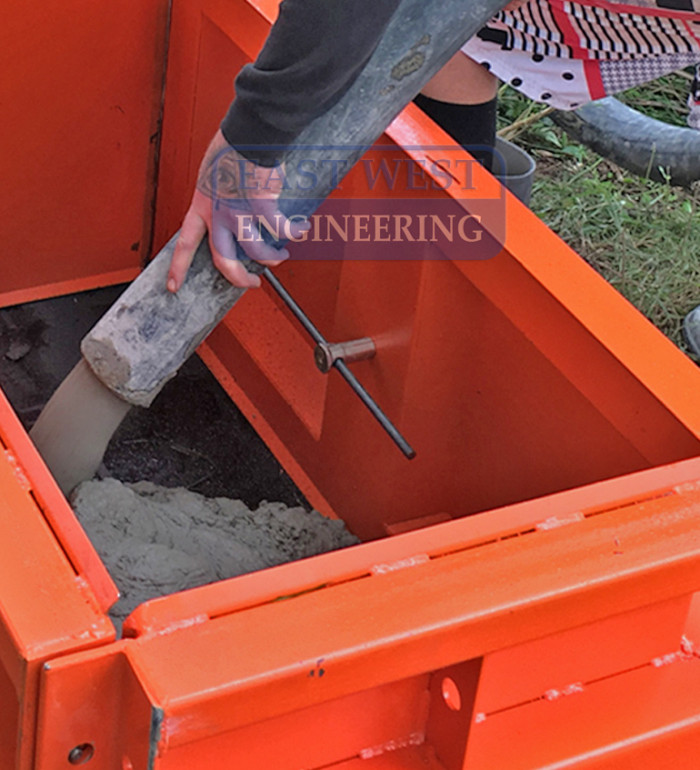

• Provision for cast in ferrule (suits 12mm reinforcing bar)

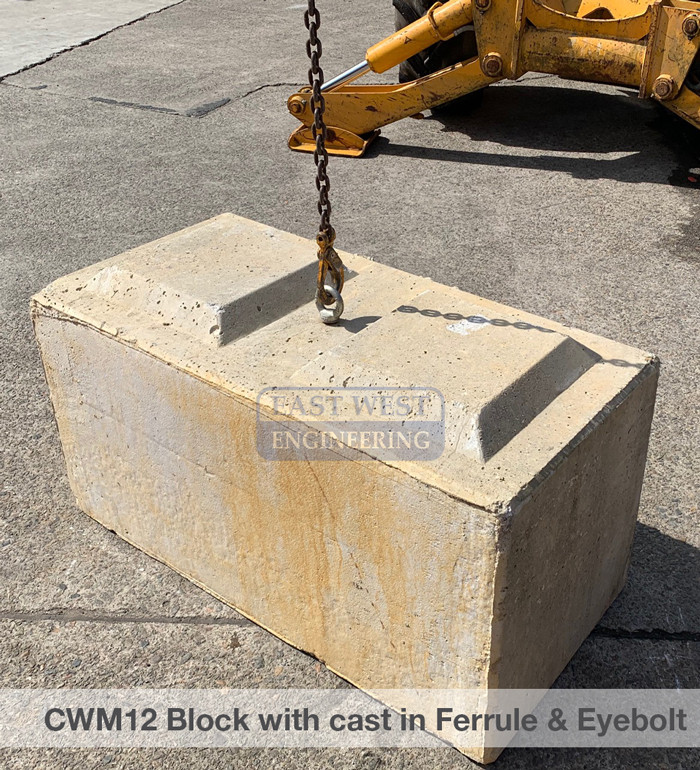

• Supplied with a single M20 eyebolt and ferrule
• Available in 2 sizes

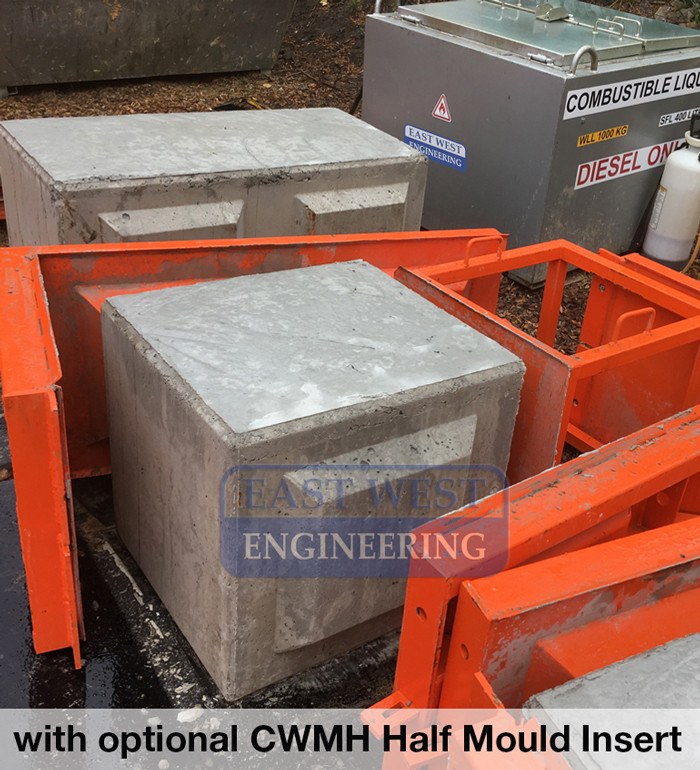

• Half mould inserts available for smaller blocks to be used in retaining wall applications
• Enamel paint finish

The concrete blocks produced by these moulds are not designed to be a precision fit block. Variations may occur when using multiple moulds or blocks for wall construction. The use of a suitable bonding or grouting material may be required to suit the particular application. Concrete mould should be filled in one complete pour. Ensure reinforcement is used where in accordance with engineers direction.

Details

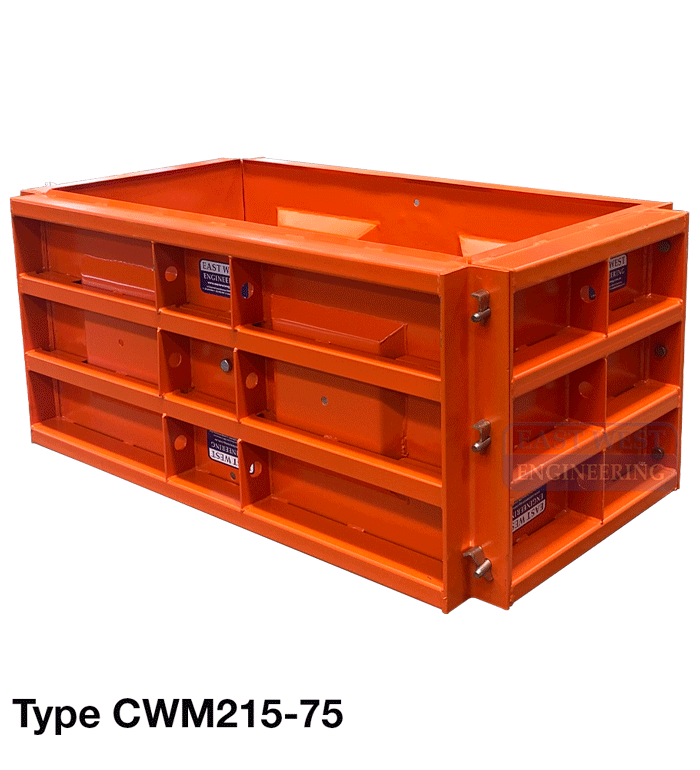

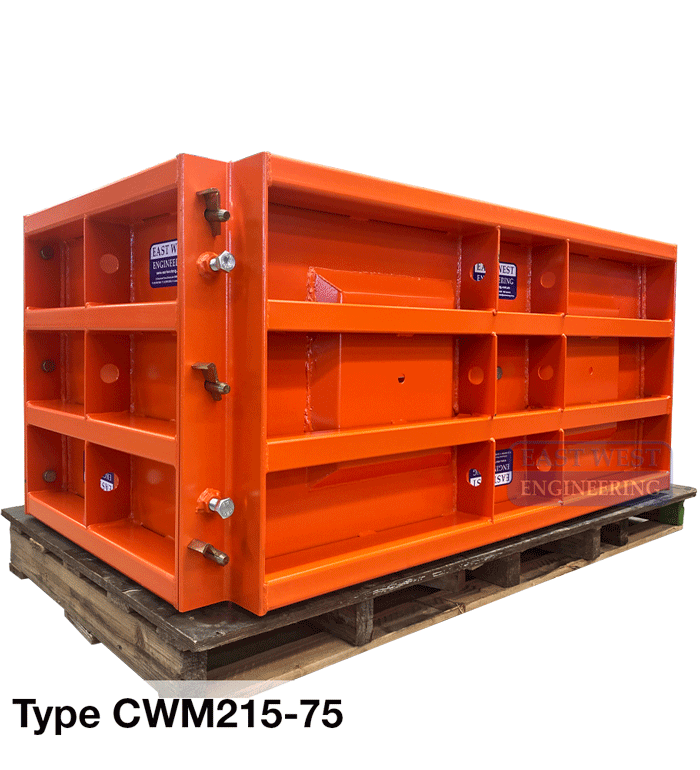

	CWM212.60	CWM215-75
Capacity	0.43cu.m	0.844cu.m
Overall Dimensions	1405 x 950 x 600mm	1700 x 950 x 750mm
Finished Block Dimensions	1200 x 600 x 600mm	1500 x 750 x 750mm
Finished Block Weight	950kg approx	1850kg approx
Unit Weight	165kg	270kg
Half Block Insert	CWMH-60	CWMH-75
Finished Half Block Dimensions	600 x 600 x 600mm	750 x 750 x 750mm
Unit Weight - Half Block Insert	17kg	27kg
