CMLB80 Concrete Mould - Interlocking

  • CMLB80 Concrete Mould - Interlocking CMLB80 Concrete Mould - Interlocking
  • CMLB80 Concrete Mould - Interlocking CMLB80 Concrete Mould - Interlocking
  • CMLB80 Concrete Mould - Interlocking CMLB80 Concrete Mould - Interlocking
  • CMLB80 Concrete Mould - Interlocking CMLB80 Concrete Mould - Interlocking
  • CMLB80 Concrete Mould - Interlocking CMLB80 Concrete Mould - Interlocking

Quick Overview

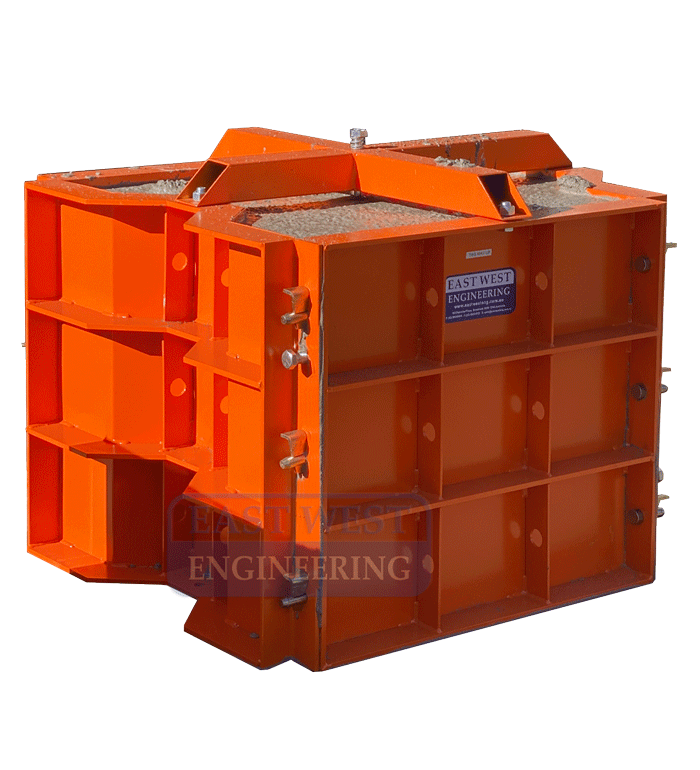

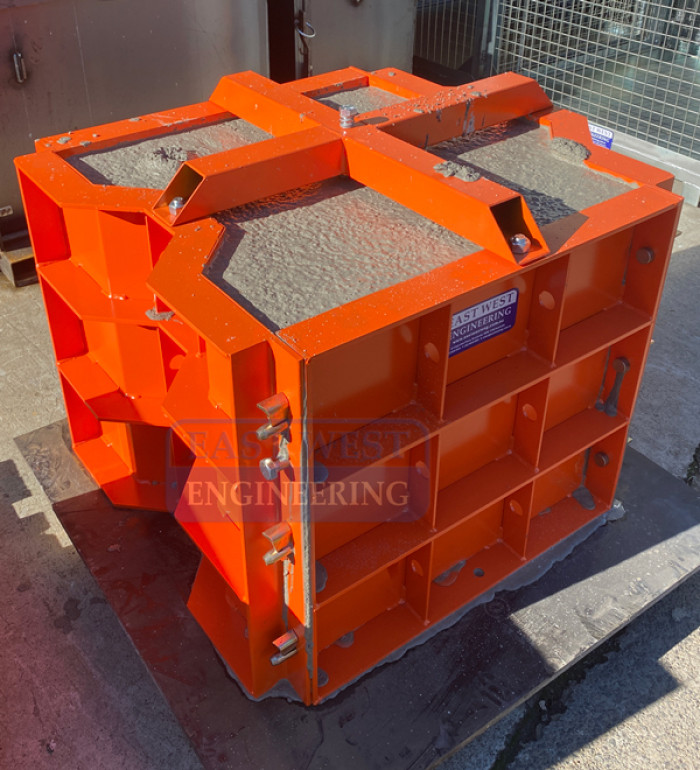

The CMLB80 Concrete Mould - Interlocking is designed to precast interlocking concrete blocks for use in various retaining wall applications.  Its simple construction and portable design makes it the perfect solution for recycling leftover concrete onsite, reducing the expense and waste of materials when disposing leftover concrete at the end of day’s pour.

FEATURES:
• Simple construction is fast to assemble
• Concrete blocks can be used in various retaining walls applications
• Provision for cast in ferrule for fast and easy positioning onsite
• M20 eye bolt, ferrule and reinforcing bar supplied
• Finished block weight approx. 1000kg
• Ferrule Kit (CMHX90-FK) and Box Ferrule Kit (CMFR) available for reorder
• Enamel paint finish

ACCESSORIES:

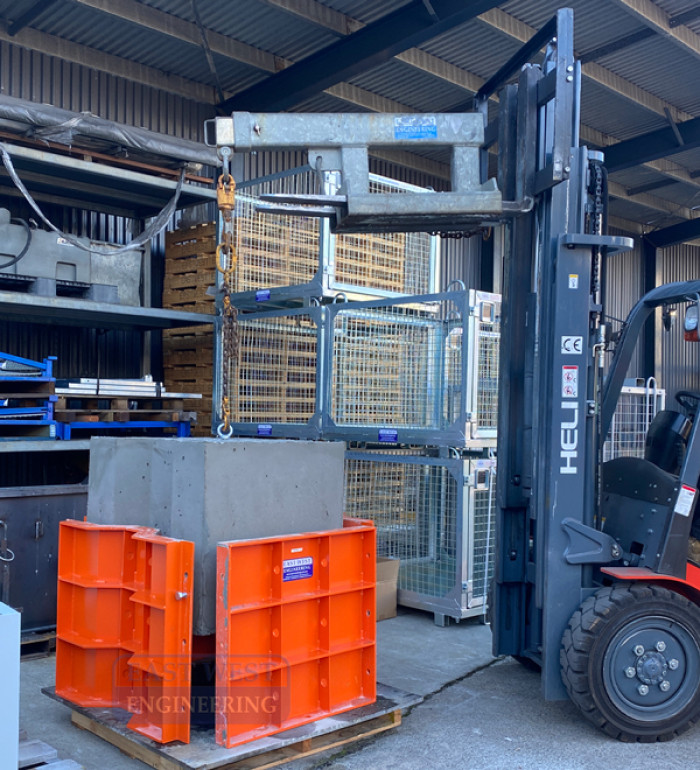

CMHX90-FK Ferrule Kit allows lifting of block with the use of a removable eyebolt

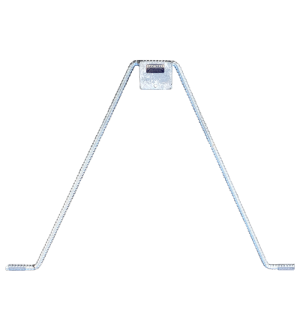

CMFR Box Ferrule Kit eliminates need of eyebolt for lifting, flush surface for stacking

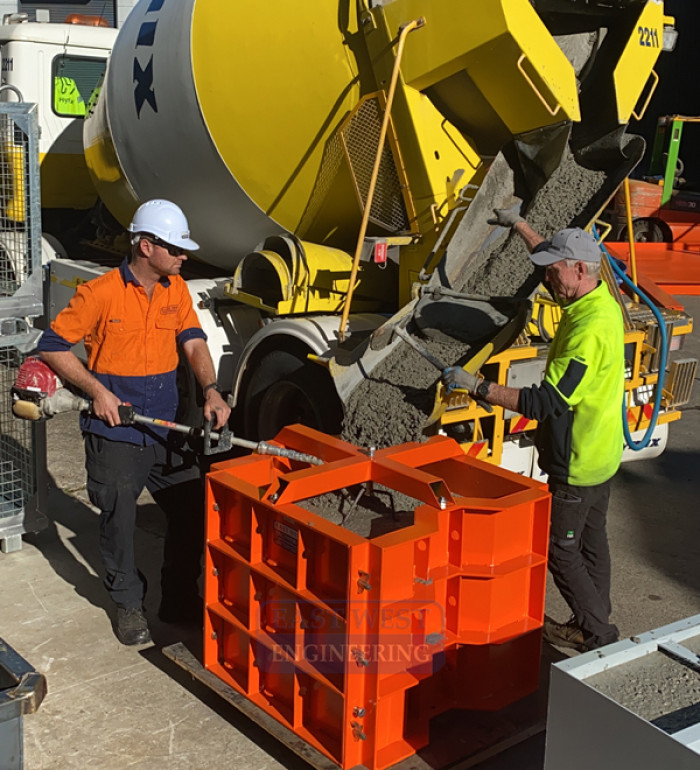

Variations may occur when using multiple moulds or blocks for wall construction. The use of a suitable bonding or grouting material may be required to suit the particular application. Concrete mould should be filled in one complete pour. Ensure concrete reinforcement is used where necessary.

Details

 Capacity  0.47cu.m
 Overall Dimensions  1055 x 955 x 825mm

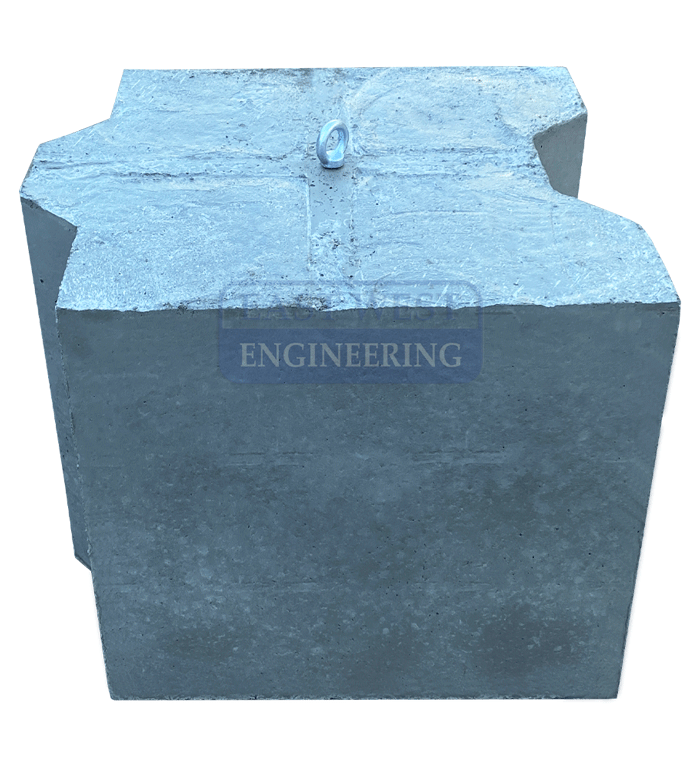

 Finished Block Dimensions        900 x 800 x 750mm
 Unit Weight  215kg
