ATSW Support Trestle + Wheels

Previous

PLF Long Product Stillage

ATSJ Support Trestle - Adjustable Height

  • ATSJ 2T Ajustable Height Support Trestle ATSJ 2T Ajustable Height Support Trestle
  • ATS Support Trestle with ATR120 Rubber for a non slip surface ATS Support Trestle with ATR120 Rubber for a non slip surface
  • ATSJ 2T Ajustable Height Support Trestle ATSJ 2T Ajustable Height Support Trestle
  • ATSJ 2T Ajustable Height Support Trestle ATSJ 2T Ajustable Height Support Trestle

Quick Overview

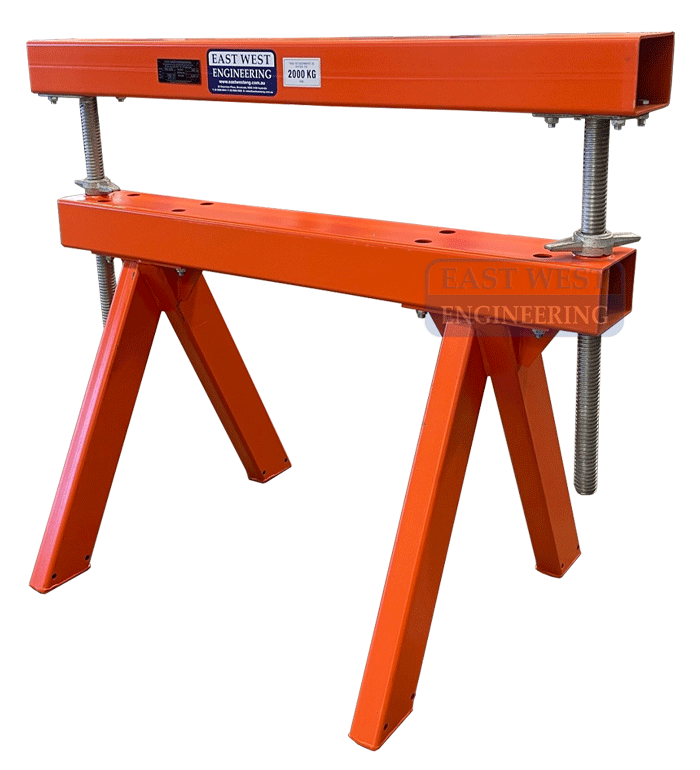

The ATSJ Support Trestle with adjustable height is designed to safely support industrial loads around the workplace or construction site.  These heavy duty steel units come in a range of sizes to suit various applications.

FEATURES:
• Heavy duty steel construction for maximum load support
• Adjustable height

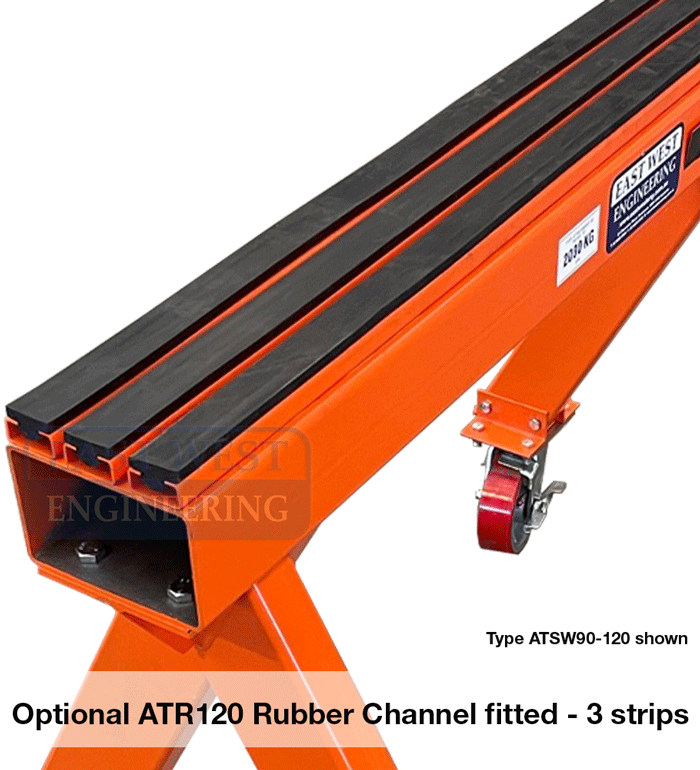

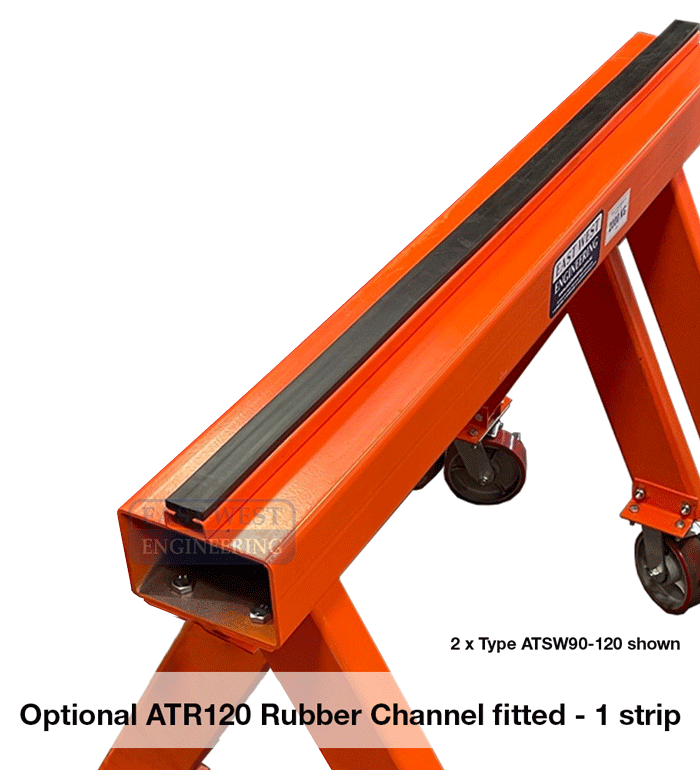

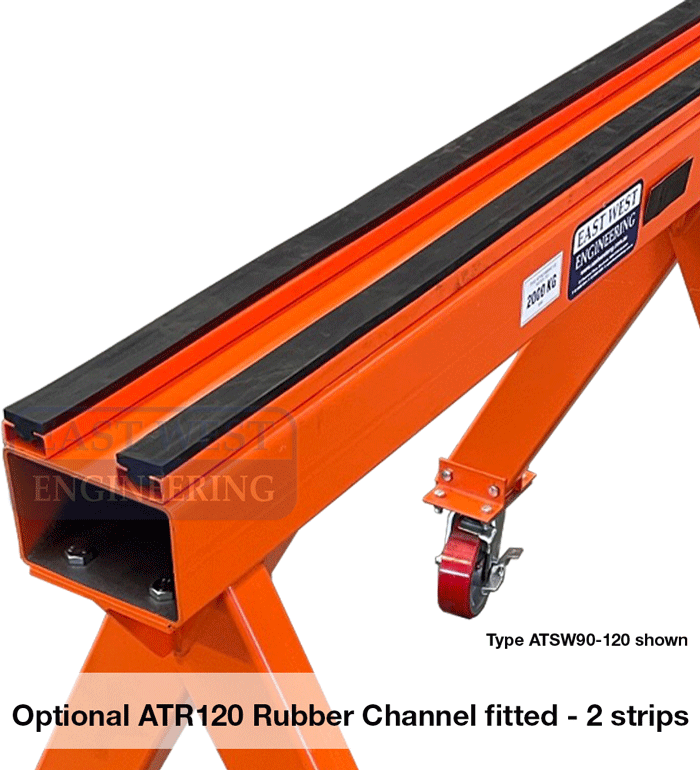

• Optional rubber profiles (ATR120) protect the load from damage and help prevent movement
• Available in standard models (ATS)

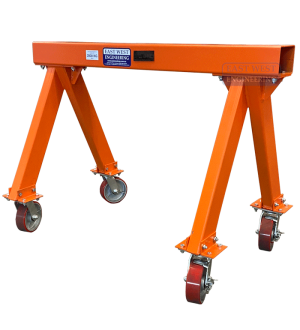

• Available in models with lockable wheels (ATSW) for mobility around the workshop
• Available in models with adjustable height and wheels (ATSJW) for complete flexibility
• Easy to assemble
• Ideal for industrial or construction applications
• Design & engineered to relevant Australian Standards
• Enamel paint finish


Supplied standard as flatpack (for on-site assembly)

Optional ATRC120 Rubber profile channels are supplied in 1.2m lengths. 2 units required for 2.4m length trestles
Trestles sold separately.

Details

 Model


 Distributed
Load
(kg)
 Length
(mm)

 Height w/o
adj. beam
(mm)
Height
 Lowered
(mm)
Height
 Extended
(mm)
Unit
 Weight
(kg)
 ATSJ85-120 2000
1200 700 850 1300 65
 ATSJ105-120  2000 1200 900 1050 1500 75

* per trestle
