ATSW Support Trestle + Wheels

Add to Favourites

Quick Overview

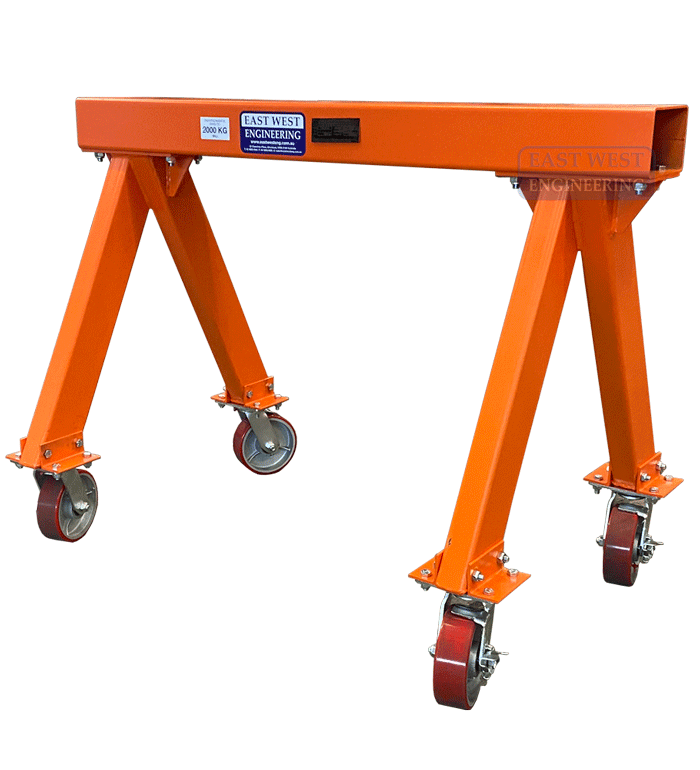

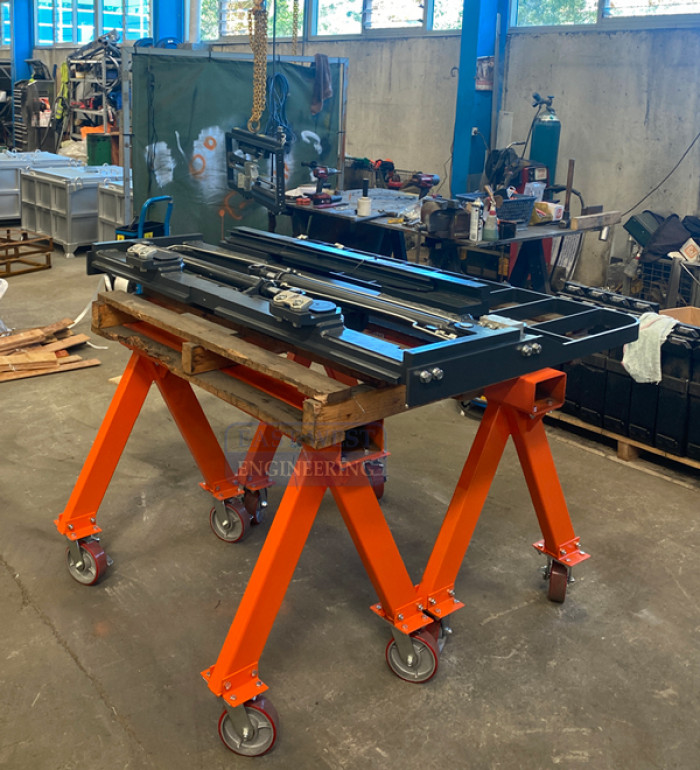

The ATSW Support Trestle with lockable wheels is designed to safely support industrial loads around the workplace or construction site. These heavy duty steel units come in a range of sizes to suit various applications.

FEATURES:
• Heavy duty steel construction for maximum load support

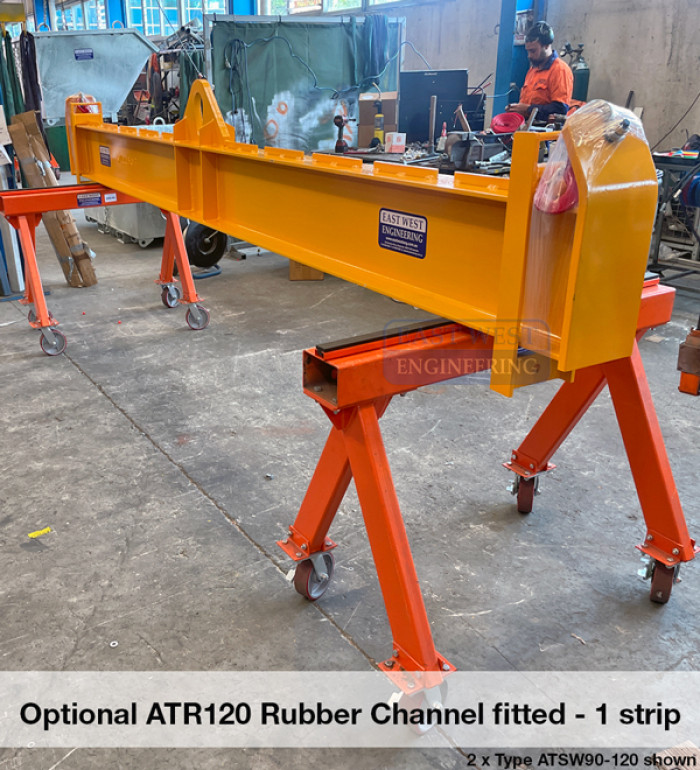

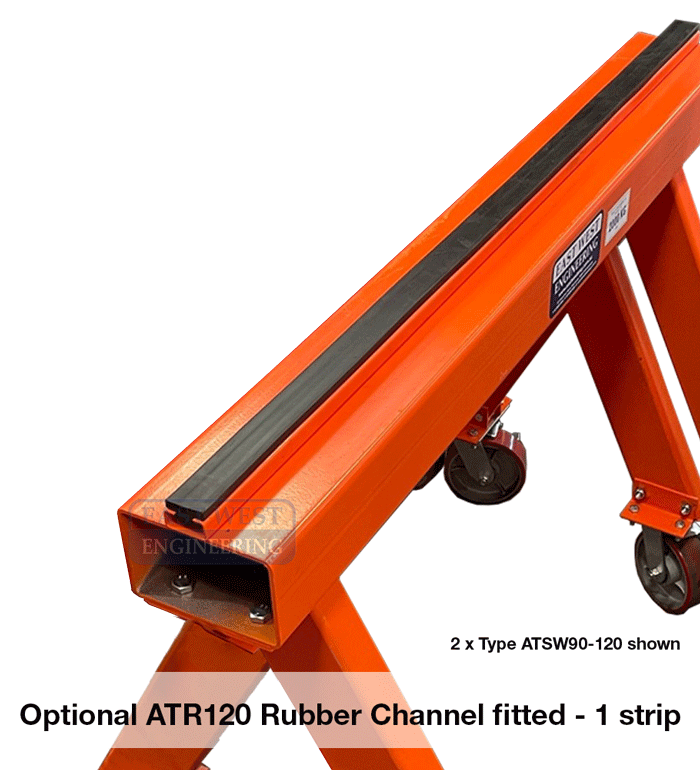

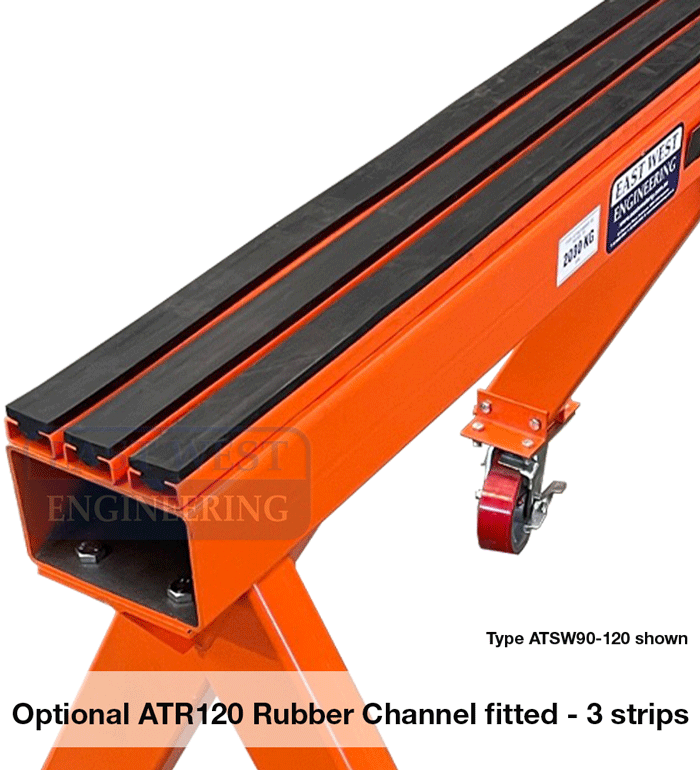

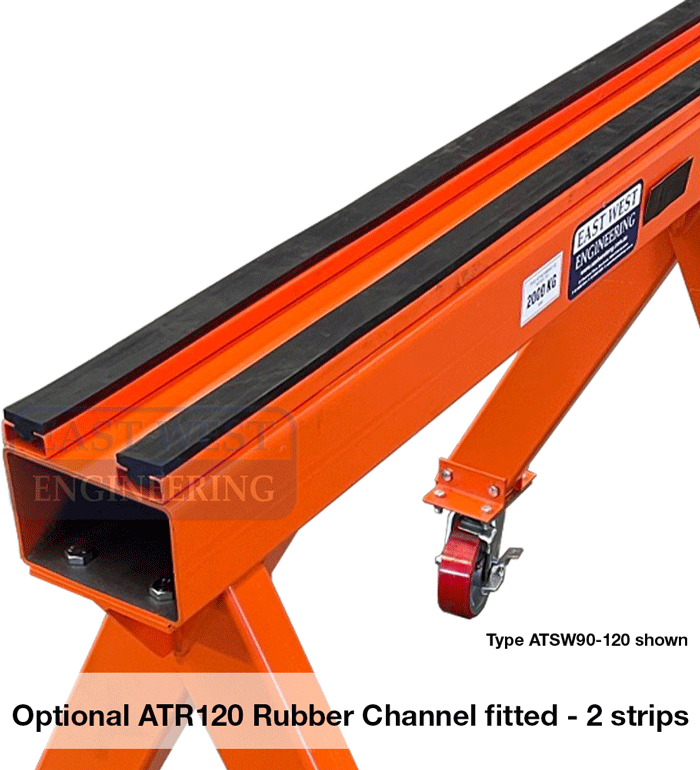

• Optional rubber profiles (ATR120) protect the load from damage and help prevent movement

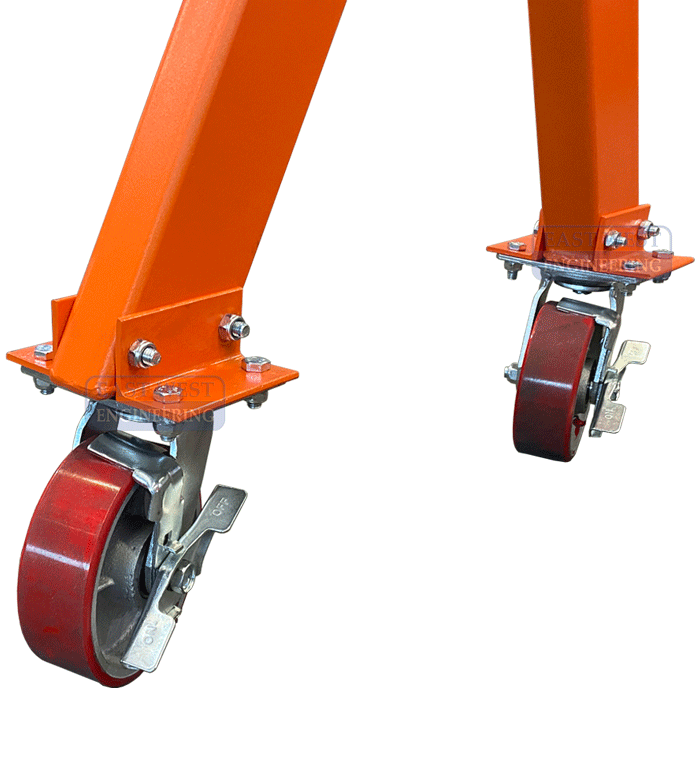

• Lockable wheels allow manoeuvrability around the workplace
• Available in standard models (ATS) without wheels
• Available in models with adjustable height (ATSJ)
• Available in models with adjustable height and lockable wheels (ATSJW) for complete flexibility
• Easy to assemble
• Ideal for industrial or construction applications
• Design & engineered to relevant Australian Standards
• Enamel paint finish

Supplied standard as flatpack (for on-site assembly)

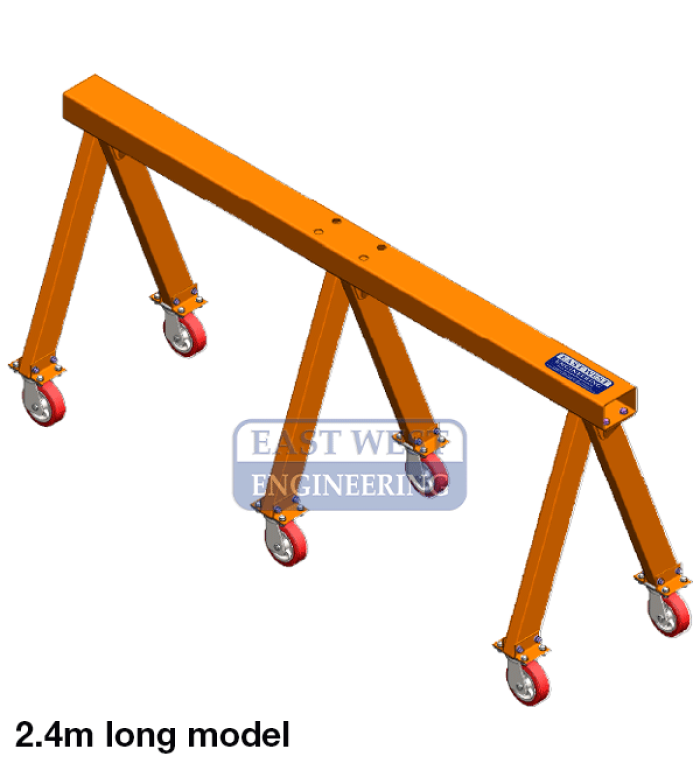

Optional ATRC120 Rubber profile channels are supplied in 1.2m lengths. 2 units required for 2.4m length trestles
Trestles sold separately.

Details

Model	Distributed Load (kg)	Length (mm)	Height (mm)	No. of Legs	Unit Weight (kg)
ATSW90-120	2000	1200	900	2	54
ATSW110-120	2000	1200	1100	2	64
ATSW90-240	3000	2400	900	3	89
ATSW110-240	3000	2400	1100	3	104

* per trestle
