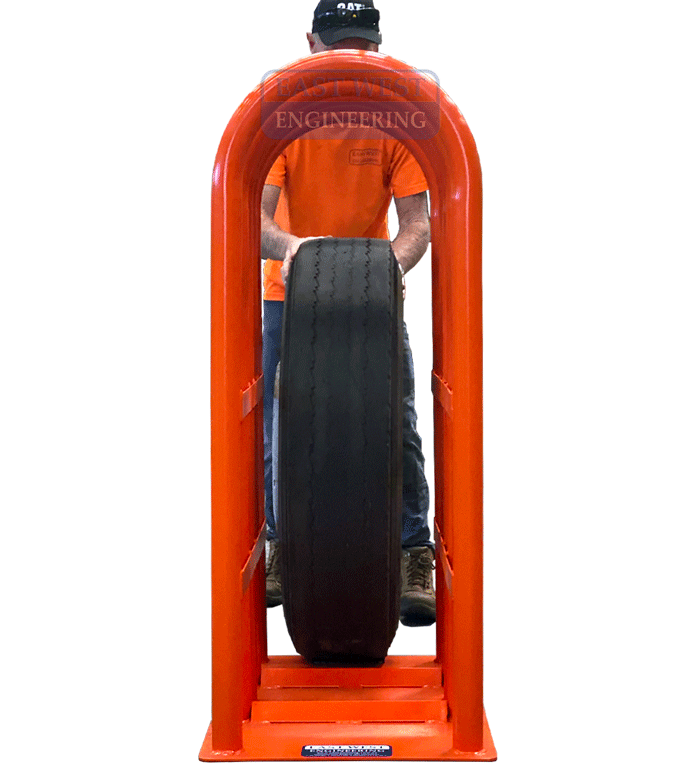

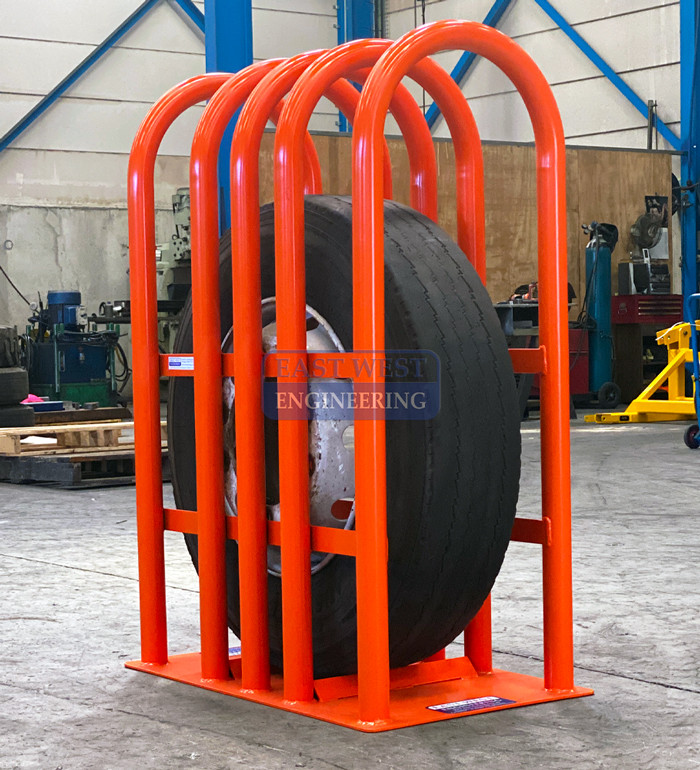

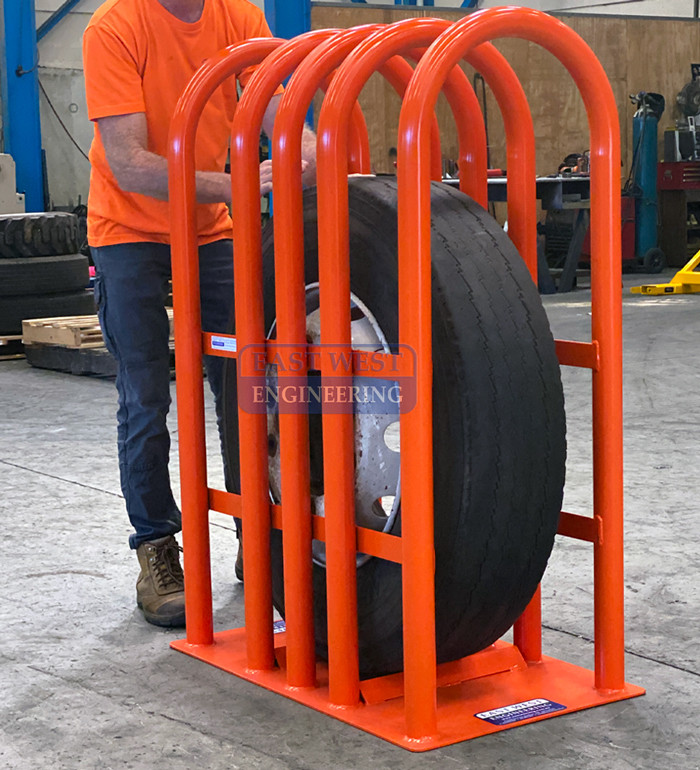

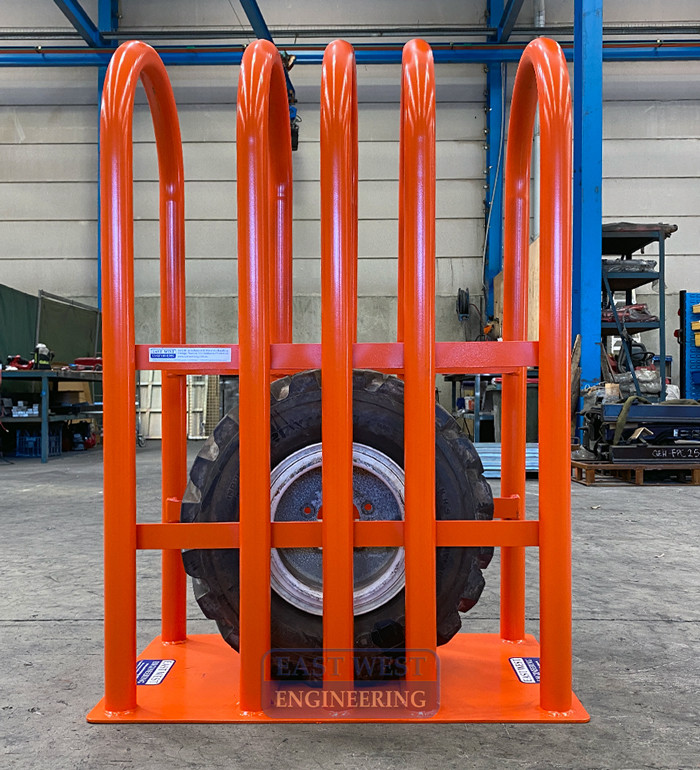

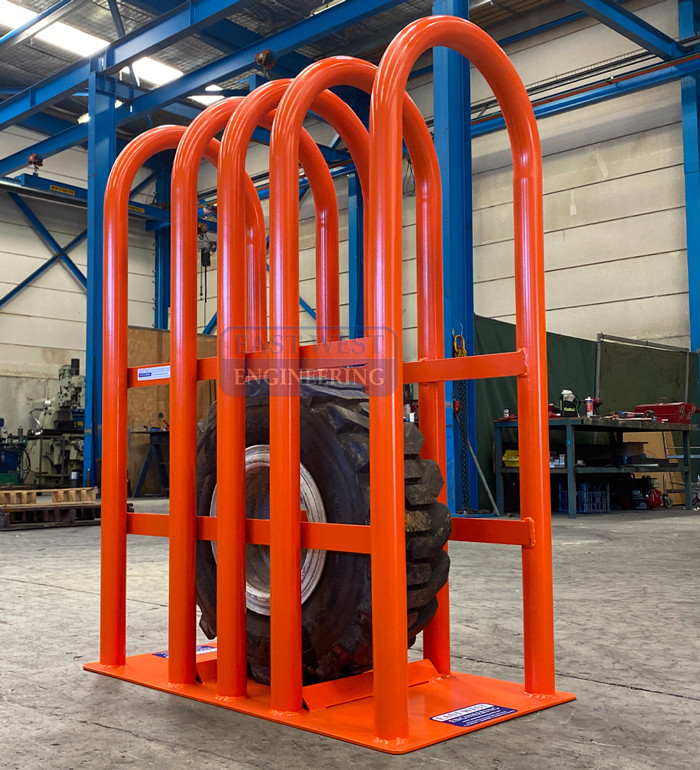

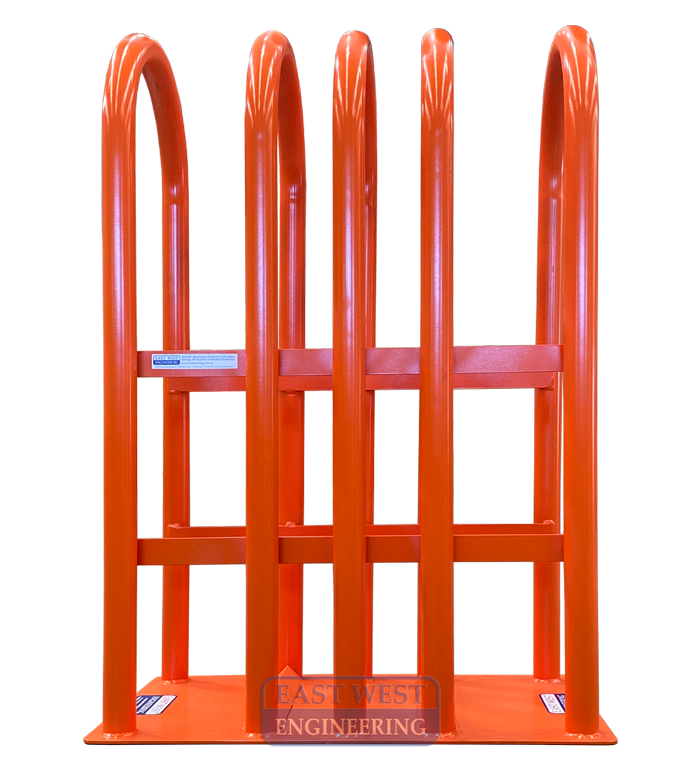

STBC12 Tyre Inflation Enclosure

Add to Favourites

Quick Overview

The STBC12 Tyre Inflation Enclosure is designed for the safe inflation of tyres. Working with tyres, particularly truck and machinery tyres, is dangerous because of their compressed air or gas, size and weight. The uncontrolled release of stored energy can have serious, even fatal consequences. When a tyre bursts or assemblies release, they can be propelled long distance at great speed. This 5-bar heavy duty enclosure is constructed to provide protection against the risk of injury to workers and damage to plant and structures caused by a tyre blast.

FEATURES:
• Provides protection for personnel when inflating tyres
• Prevents risk of injury and damage caused by tyre blast
• Suits tyres sizes up to 1150mm diameter by 400mm wide
• Heavy duty construction designed to withstand impact and force
• Locating guides on base hold wheel in position
• Five 60mm tube bars with reduced spacing in impact zone for strength

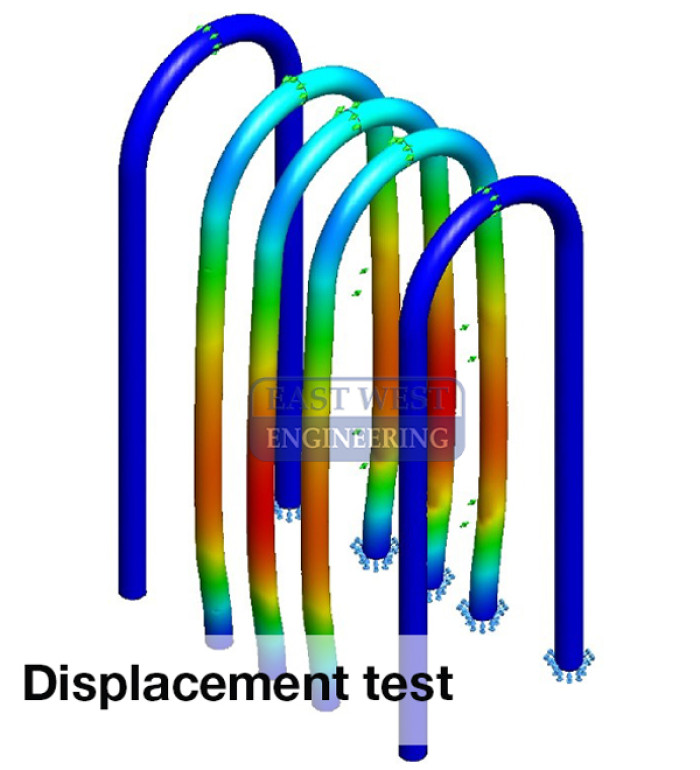

• Finite Element Analysis confirms design is engineered to withstand the most severe blast
• Designed and certified to relevant Australian standards
• Enamel paint finish

Supplied as a fully assembled unit

Details

	Maximum Tyre Size	1150(dia) x 400(w) mm
	Internal Dimensions	400(w) x 1290(h) mm
	Overall Dimensions	950(l) x 580(w) x 1350(h) mm
	Unit Weight	85kg

Features

This video footage was captured by ATS Euromaster to show the catastrophic effects of inflating a truck tyre which has previously suffered run-flat damage. It forms part of an internal training DVD being used to reinforce the safe methods of operation which must be followed with all truck, earthmover and agricultural tyres. The footage also serves as a timely reminder of why tyres should be serviced by professional tyre technicians with the right safety equipment.
