RPS Slip-on Roll Prong

Add to Favourites

Quick Overview

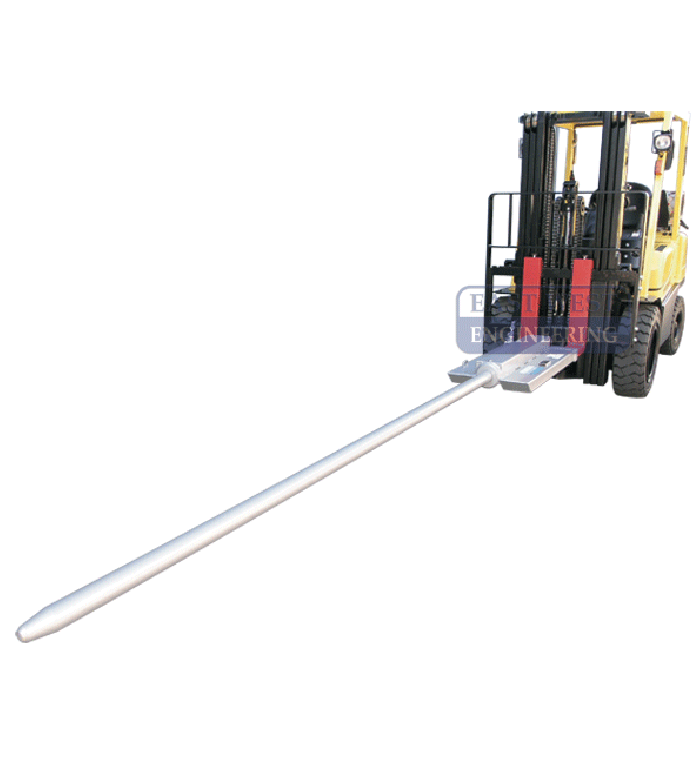

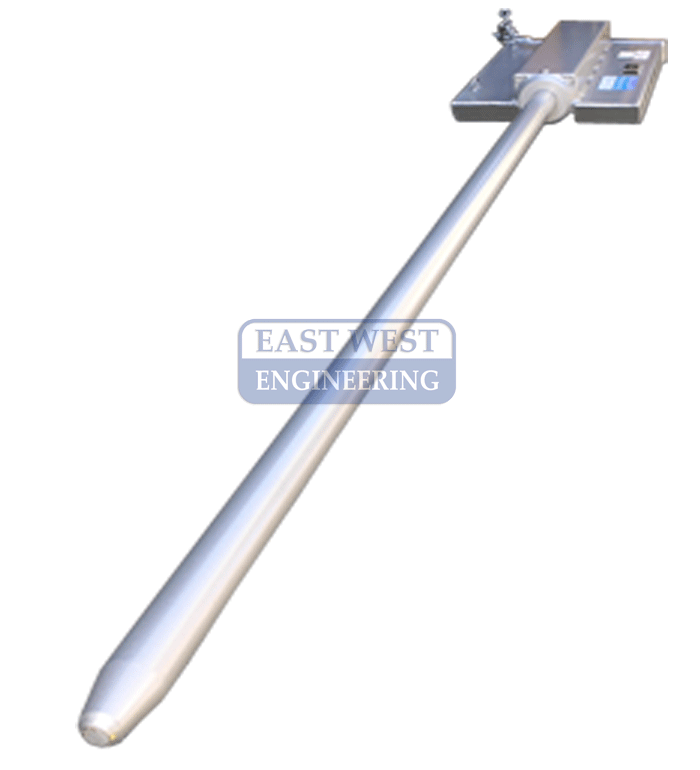

The RPS Slip-on Roll Prong is designed for handling rolled products.

FEATURES:

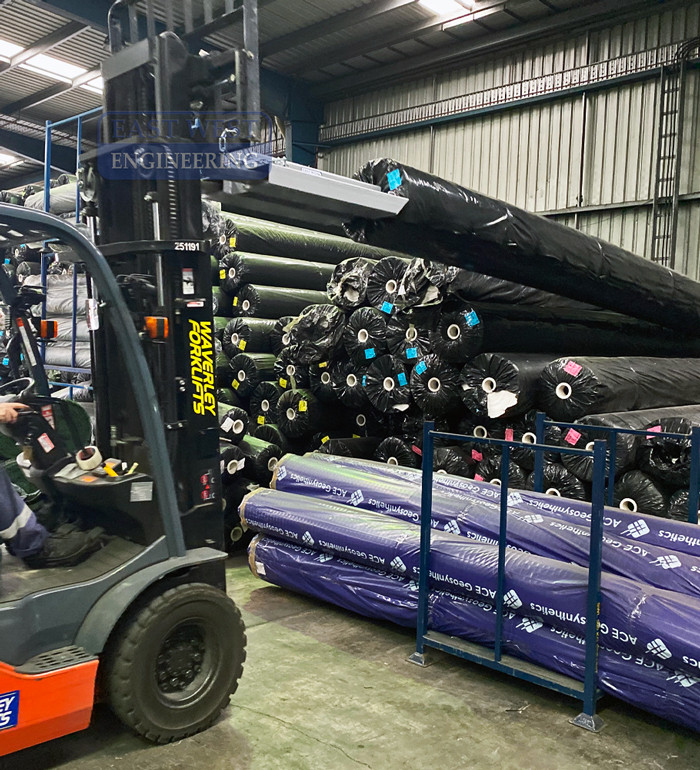

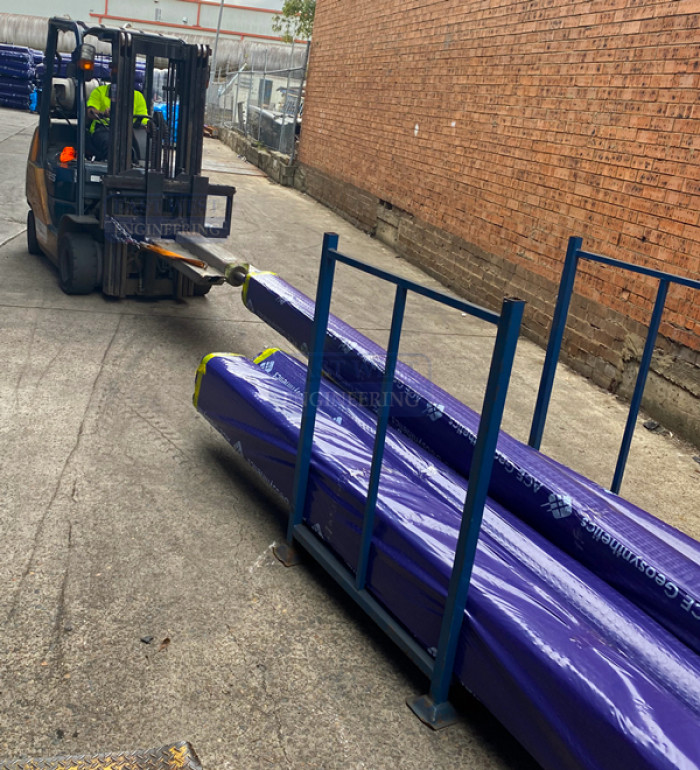

• Suitable for handling fabric, cable and coil products
• Suits larger capacity forklifts due to extended load centre created by the fork tines
• Quick and easy to mount on any forklift
• Safety chain prevents unintentional disengagement
• Manufactured from high tensile steel
• Custom prong lengths available on request
• Enamel paint finish

The prong length should be a minimum of 75% of the roll length. The Working Load Limit (WLL) has been calculated at the centre of the prong. If the product being lifted exceeds the length of the prong, please contact East West Engineering for a revised WLL.

Details

Model	WLL @ Load Centre (kg @ mm)	Prong Diameter (mm)	Prong Length (mm)	Lost Load (mm)	Fork Pocket Size (mm)	Fork Pocket Centres (mm)	Unit Weight (kg)
RPS-2N-40-1200	200 @ 600	40	1200	1040	190x65	345	91
RPS-2N-50-1800	250 @ 900	50	1800	1040	190x65	345	106
RPS-2N-60-2800	340 @ 1400	60	2800	1040	190x65	345	141
RPS-2N-70-2800	510 @ 1400	70	2800	1040	190x65	345	163
RPS-2N-80-2800	850 @ 1400	80	2800	1040	190x65	345	194
RPS-3N-100-2800	1700 @ 1400	100	2800	1040	180x80	360	328

* Custom prong lengths available on request
