APV100-AT Pipe Trolley - All-Terrain

PCDW-01 Double Stillage Cage

APV Pipe Trolley

Add to Favourites

Quick Overview

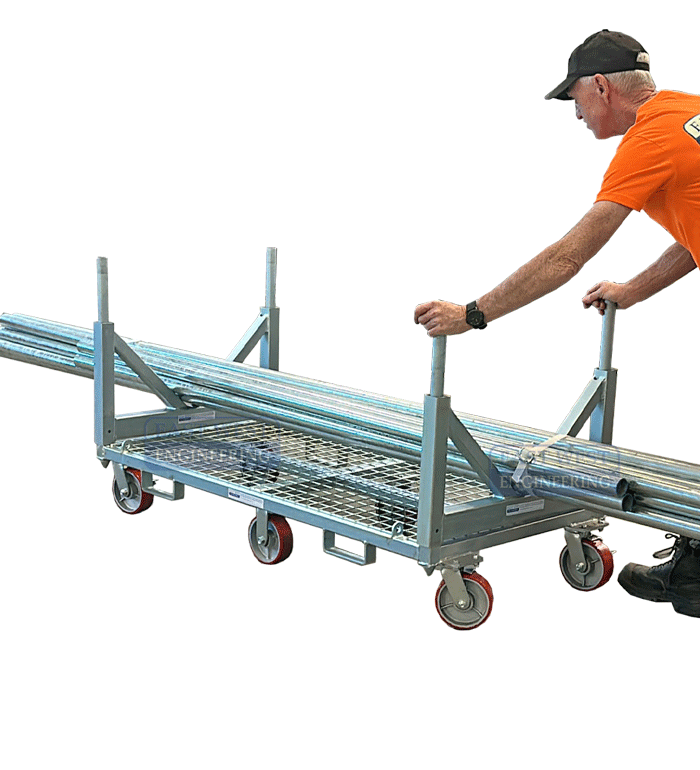

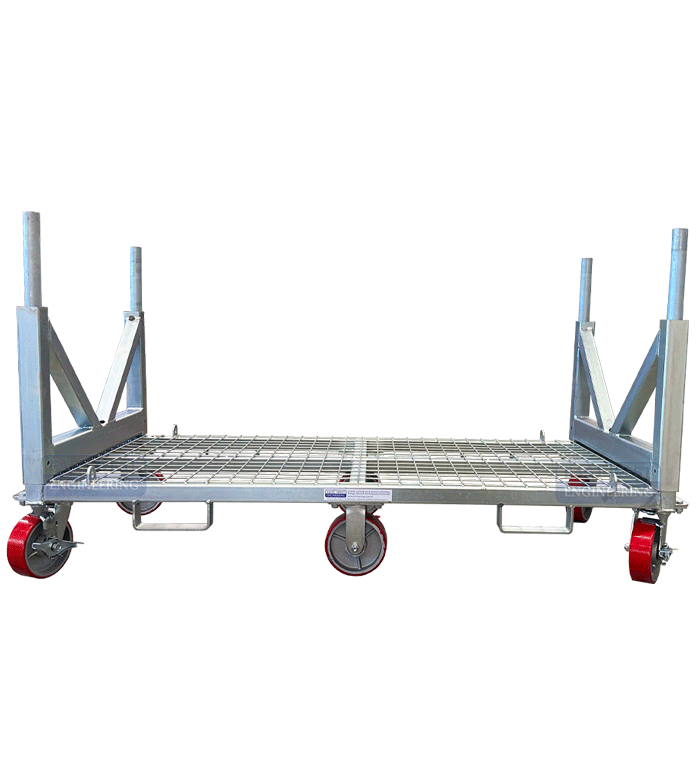

The APV Pipe Trolley is designed to safely store and transport long length materials such as pipe, scaffolding and conduit on site and is sized to fit through a standard doorway. This mobile storage solution increases worker productivity by keeping materials organised and close to work areas.

FEATURES:
• Suitable to store and transport long materials such as pipe, scaffolding, conduit, tubing & bar stock
• Designed to fit through a standard doorframe for carting of loads on-site

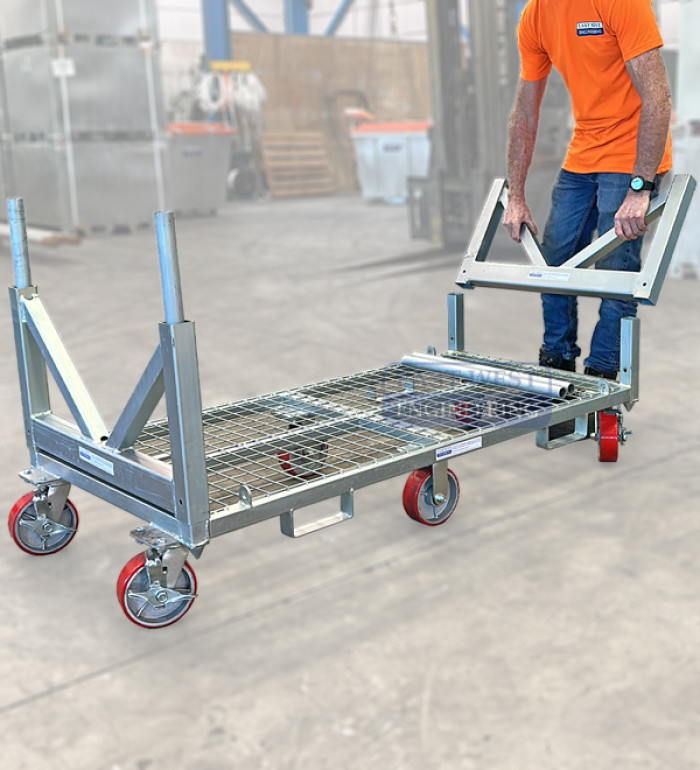

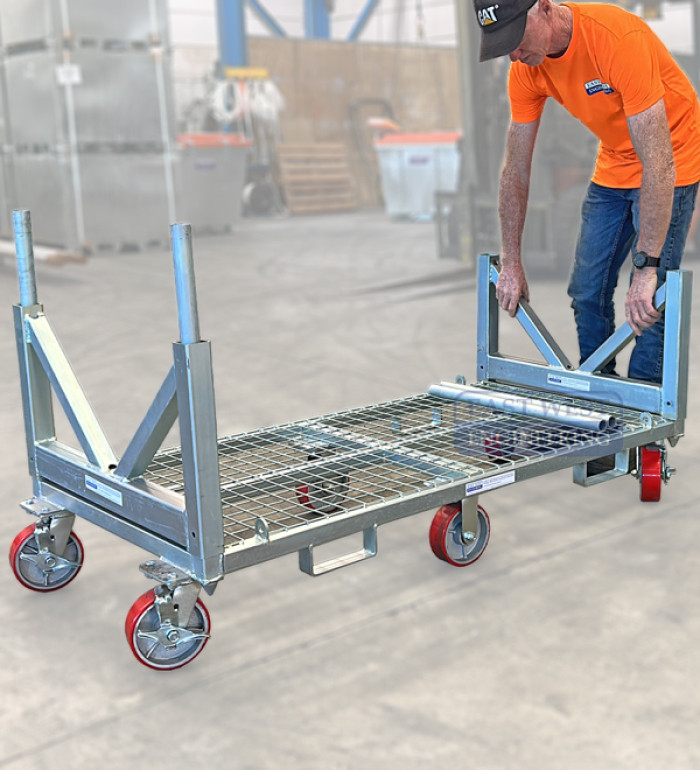

• Removable V frame for alternative loading requirements

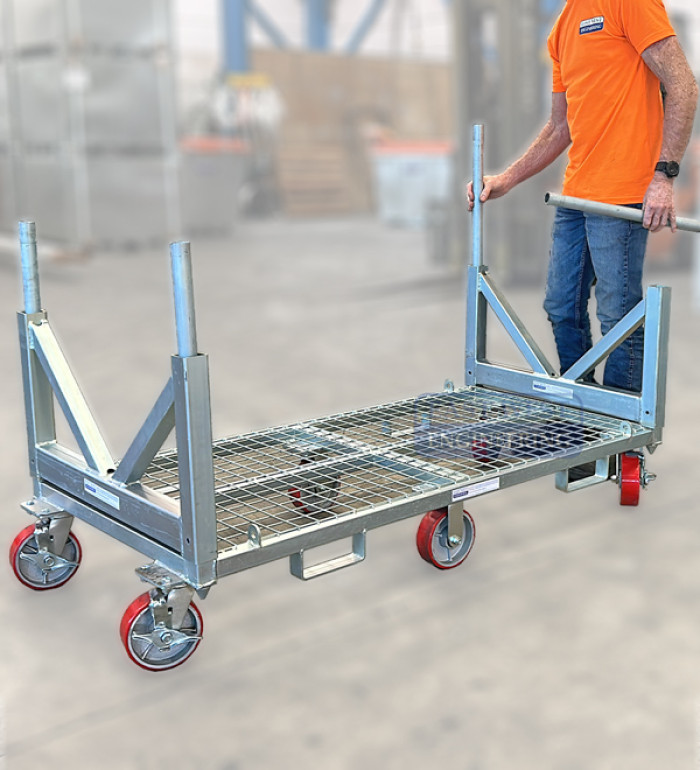

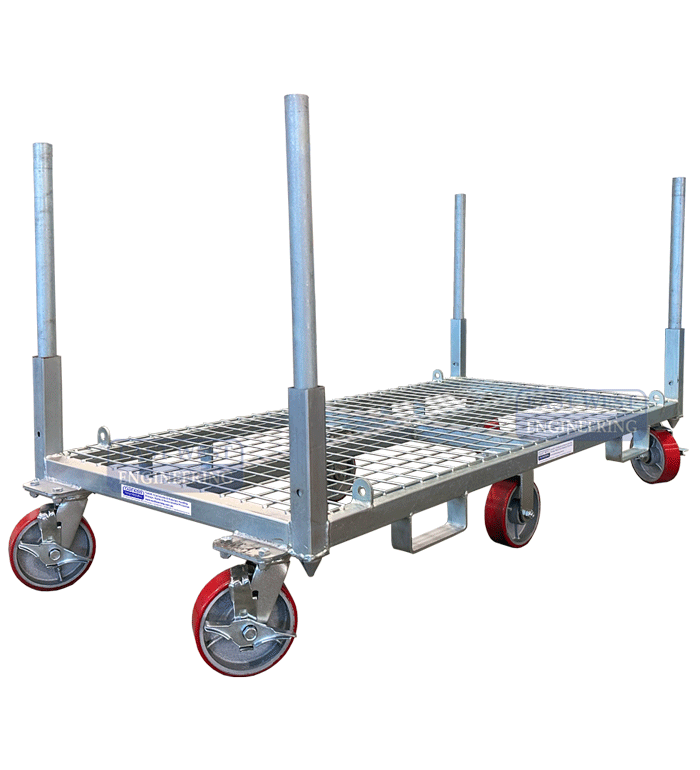

• Removable corner posts supplied to suit higher load sizes
• 6 industrial 150mm poly/cast wheels with brakes for easy manoeuvring around the worksite
• Also available in all terrain model (APV100-AT) for use on rough, uneven ground

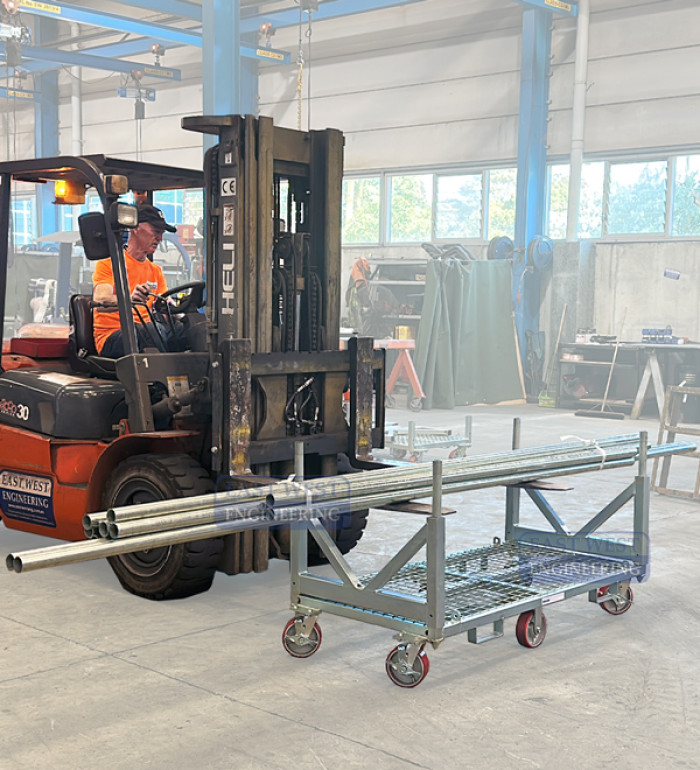

• Fork stirrups allow loaded trolley to be transported around site by forklift
• 4 tie down points for securing load
• Heavy duty construction for maximum stability
• Zinc finish

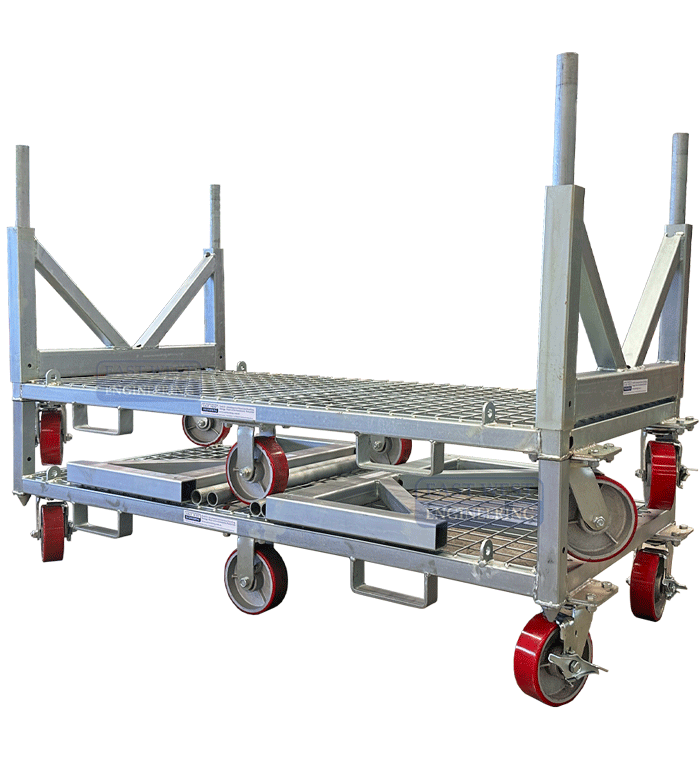

Supplied standard as flatpack (for on-site assembly)

Due to transport safety requirements wheels are supplied for fitment onsite, not pre-fit.

Details

Model	Working Load Limit (kg)	Overall Dimensions L x W x H (mm)	Front Pocket Size (mm)	Front Pocket Centres (mm)	Unit Weight (kg)
APV100	1000	1640 x 760 x 640	155 x 55	850	85
APV200	2000	1930 x 1050 x 725	155 x 55	850	100

* Unit weight includes V-Frame + Corner Posts

** Overall dimensions is excluding removable corner posts (shown in picture)
