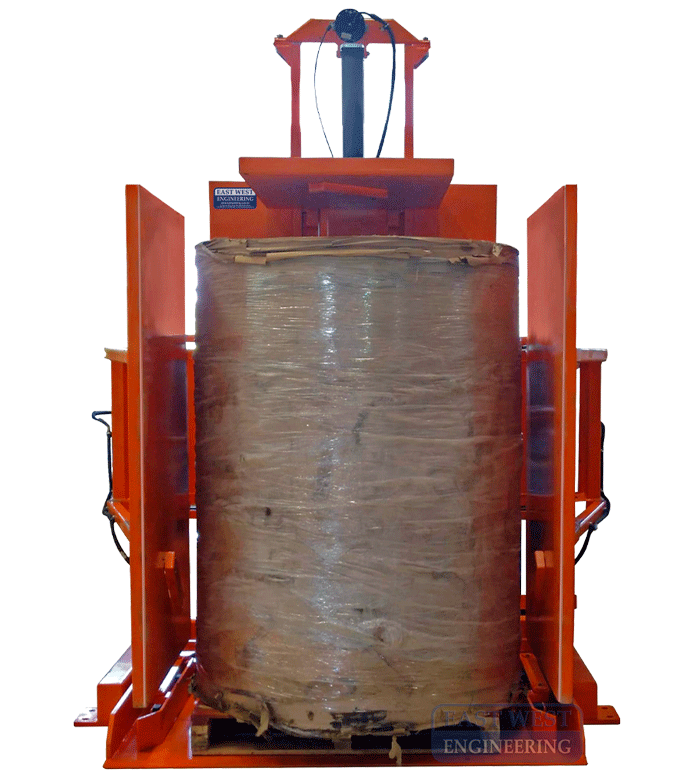

TPQ15B Pallet Changer

Add to Favourites

Quick Overview

The TPQ15B Pallet Changer is designed for the safe and efficient exchange of pallets without the need to invert the product. A specially engineered backward tilt allows pallet changes to be carried out while keeping the load upright, eliminating double handling and reducing the risk of product damage.

FEATURES:
• Designed for efficient pallet exchange without inverting the load
• Backward tilt system ensures products remain upright and stable during pallet change
• Floor-flush loading enables easy access with pallet trucks
• Safe and simple to operate for warehouse and production environments
• Optional automatic sequencing control for enhanced efficiency
• Available in fully automated in-line configurations for high-volume operations
• 95 second full cycle time
• Light curtain and safety barrier fitted standard for safety of workers
• Supplied with protective guard
• 3 phase + neutral 415V/20A power supply

Details

Working Load Limit (WLL)	2000kg @ 650mm LC
Pallet Inverter Dimensions	2120 x 2660 x 2466mm
Platform Size	1300 x 1300mm
Fixed Stabiliser Size	1330 x 1700mm
Opening Range	920 – 1600mm
Rotation	±180°
Unit Weight	2700kg
Pressure (Bar)	16 Mpa
Hydraulic Flow	20L/min
Motor Size	7.5kW
