TLQ20SS Push Pull - Sheet Save

Add to Favourites

Quick Overview

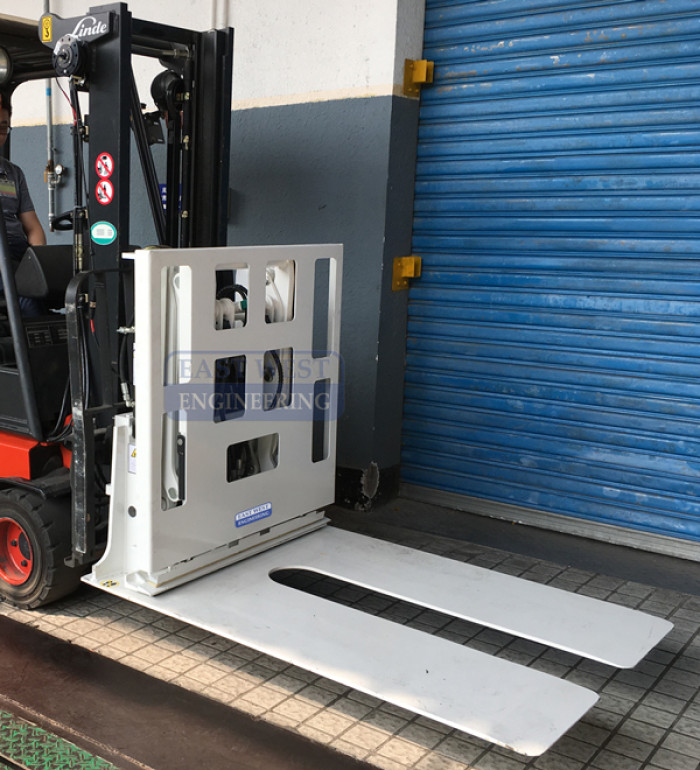

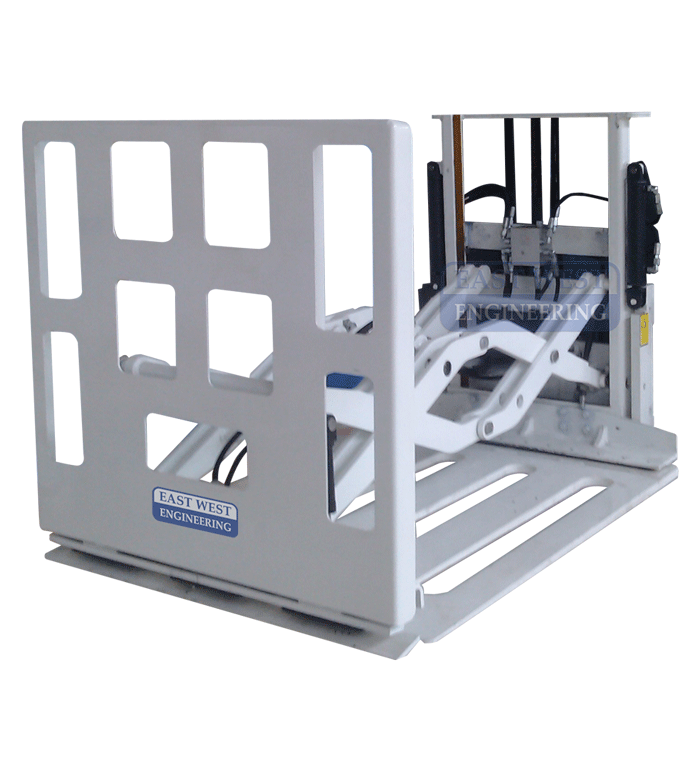

The TLQ20SS Push Pull is designed for handling goods that are shipped, received and/or stored on slipsheets rather than pallets. Replacing pallets with slipsheets increases the volume of goods transported by truck or container, reduces pallet costs and optimises warehouse space. This unit is ideal for operations that retain the slipsheet for in-house use only.

FEATURES:
• Used for palletless handling of packed goods
• Allows the slipsheet to be retained when load is transferred
• Carriage mount suits use on a dedicated forklift
• Also vailable in model with sideshift function for ease of positioning load without moving forklift
• Reduces costs by removing the need for expensive pallets with the use of a slipsheet

Details

Model	Capacity @ LC (kg @ mm)	Mounting Class	Push Platen Size (mm)	Base Platen Size (mm)	Stroke (mm)	Lost Load (mm)	Unit Weight (mm)
TLQ20SS K-B012	2000@600	II	1200 x 1050	1050 x 982	1250	240	550
TLQ20SS K-B014	2000@600	II	1130 x 1050	1130 x 982	1180	240	550
TLQ20SS K-B024	2000@600	II	1220 x 1050	1050 x 1400	1270	240	590
TLQ20SS K-C008	2000@600	III	1220 x 1050	1050 x 982	1270	240	582
TLQ20SS K-C012	2000@600	III	1200 x 1050	1050 x 982	1250	240	570
TLQ20SS K-C014	2000@600	III	1130 x 1050	1050 x 982	1180	240	570

NOTE
- One additional hydraulic circuit required
- Hoses not included
- Also available in model with sideshift function on request
- Please contact the forklift manufacturer for the residual capacity of attachment
- Further technical details available upon request
