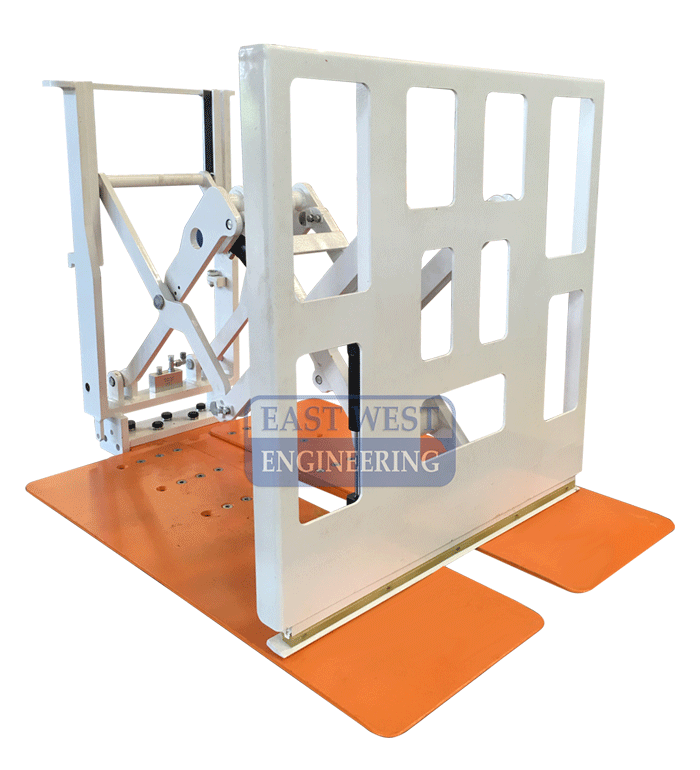

TLQ20QM Push Pull - Quick Mount

Add to Favourites

Quick Overview

The TLQ20QM Push Pull is designed for handling goods that are shipped, received and/or stored on slipsheets rather than pallet. Replacing pallets with slipsheets increases the volume of goods transported by truck or container, reduces pallet costs and optimises warehouse space. This unit is ideal for operations where the volume of loads handled is insufficient to justify a dedicated forklift, requiring an easy to install solution.

FEATURES:
• Used to push a palletless load when used with a slipsheet
• Carriage mount with quick release bottom hooks for easy fitment and removal

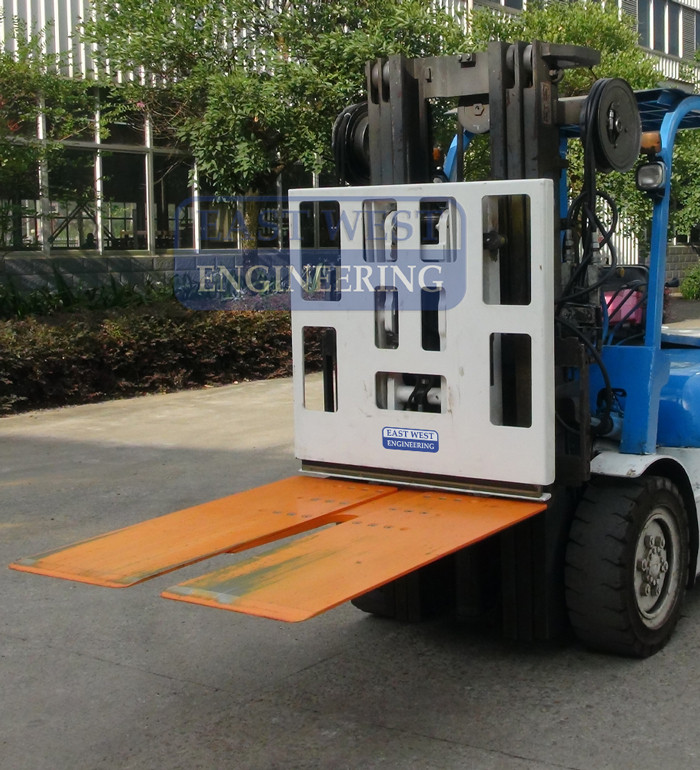

• Mounts on the forks with quick release lower hooks for easy installation
• Reduces costs by removing the need for expensive pallets with the use of a slipsheet
• Commonly used in manufacturing, chemical, pharmaceutical and logistics industries

Details

Model	Capacity @ LC (kg @ mm)	Mounting Class	Push Platen Size (mm)	Stroke (mm)	Min. Truck Carriage Width (mm)	Lost Load (mm)	Unit Weight (mm)
TLQ20QMF-002	2000@600	II/III	1050 x 965	1270	1000	207	430
TLQ20QMF-004	2000@600	II/III	1190 x 965	1180	1000	200	422
TLQ20QMF-006	2000@600	II/III	1050 x 982	1270	1000	180	434

NOTE

- One additional hydraulic circuit required
- TLQ20QM does not have sideshifting function, available upon request
- Hoses not included
- Please contact the forklift manufacturer for the residual capacity of attachment
- Further technical details available upon request
