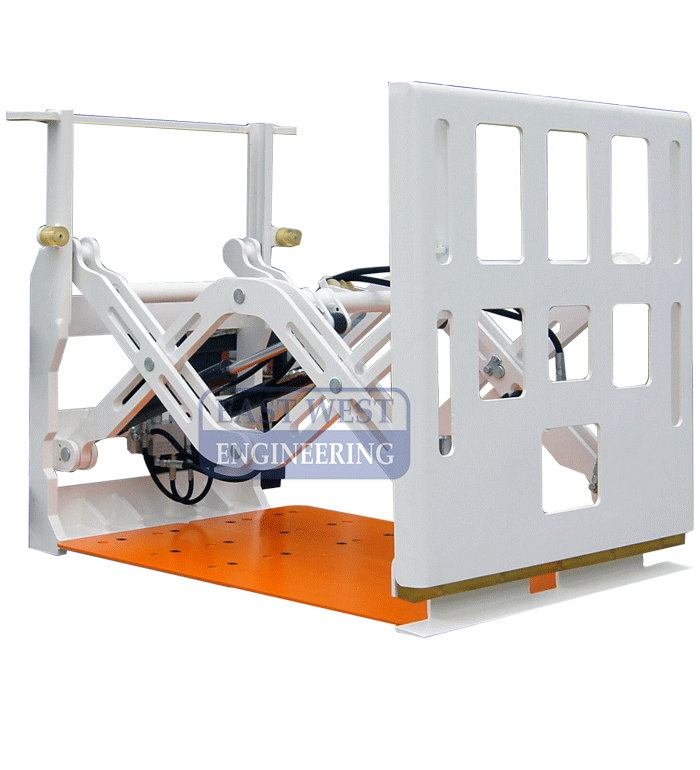

TLQ20D Push Pull - Carriage Mount

Add to Favourites

Quick Overview

The TLQ20 Push Pull is designed for handling goods that are shipped, received and/or stored on slipsheets rather than pallets. Replacing pallets with slipsheets increases the volume of goods transported by truck or container, reduces pallet costs and optimises warehouse space. This unit is ideal for use on a dedicated forklift.

FEATURES:
• Used for palletless handling of packed goods

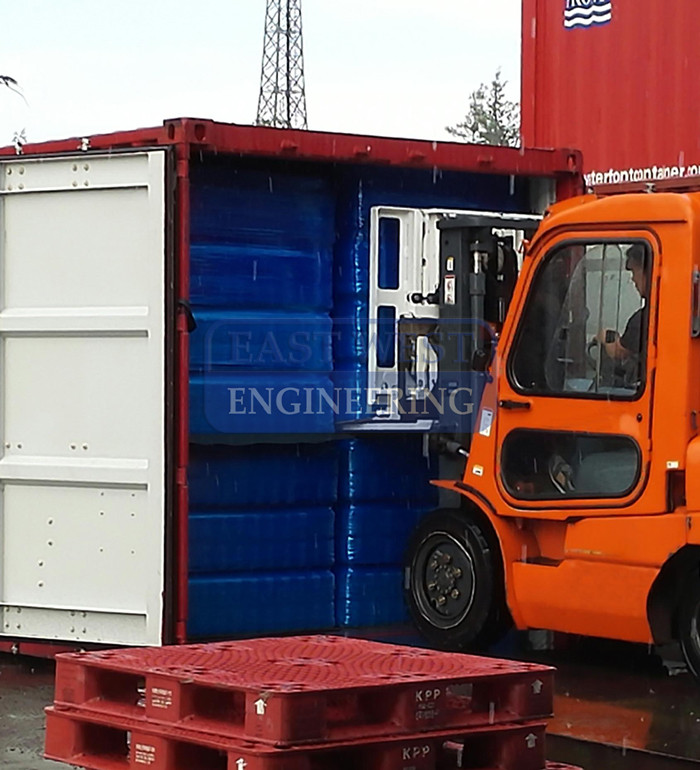

• Pushes a palletless load onto a loading platform when used with a slipsheet
• Carriage mount suits use on a dedicated forklift
• Reduces costs by removing the need for expensive pallets with the use of a slipsheet
• Commonly used in petrochemical, chemical, pharmaceutical and logistics industries etc

Details

Model	Capacity @ Load Centre (kg @ mm)	Mounting Class	Push Platen (mm)	Base Platen (mm)	Stroke (mm)	Lost Load (mm)	Unit Weight (mm)
TLQ20D-B016	2000@600	II	1150 x 1065	1300 x 1100	1350	230	564
TLQ20D-C006	2000@600	III	1050 x 1065	1400 x 1100	1440	230	572
TLQ20D-C008	2000@600	III	1050 x 982	1220 x 1050	1270	230	525

NOTE
- One additional hydraulic circuit required
- Hoses not included
- Please contact the forklift manufacturer for the residual capacity of attachment
- Further technical details available upon request
