BTL200 Spring Lift Table

Add to Favourites

Quick Overview

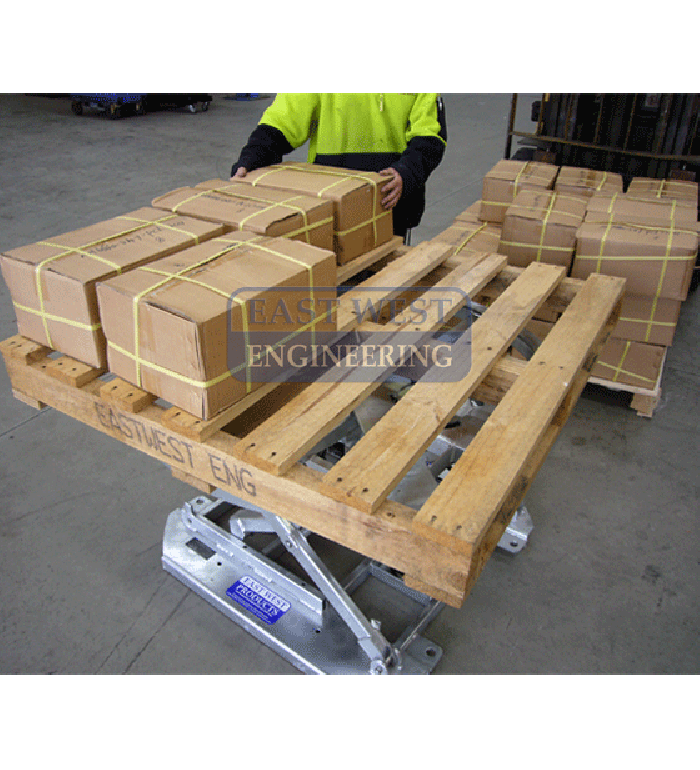

The ergonomic BTL200 Spring Lift Table is designed to position and rotate pallets at an optimal work height when loading or unloading. Nearside loading reduces workplace injuries and strain caused by bending and reaching over the pallet whilst carrying heavy loads and increases productivity as there is no need to walk around pallets.

FEATURES:
• Allows ergonomic loading and unloading of heavy pallets, cages and bins by one person in factories and warehouse operations
• Self levelling mechanism allows table height to vary between 230 to 705mm high

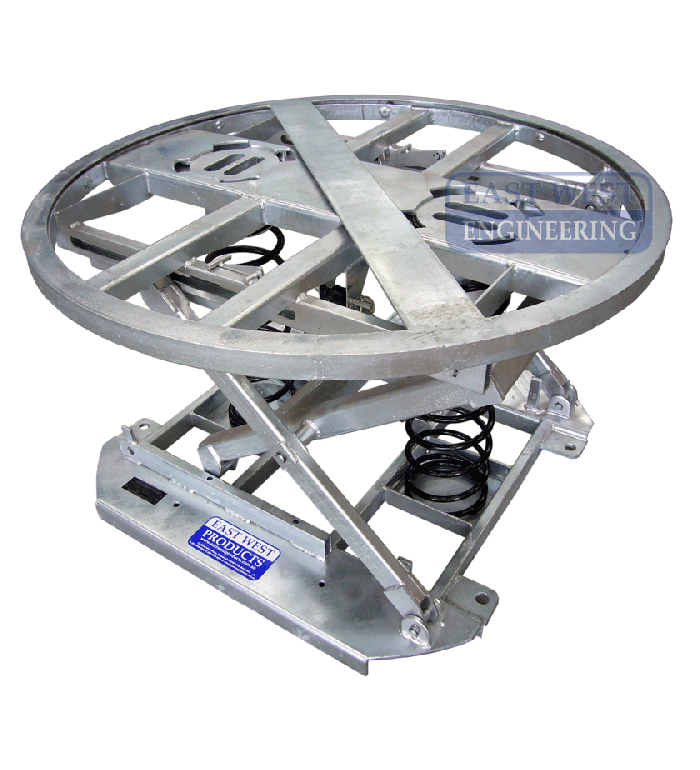

• Rotating upper ring allows access to all sides of pallet
• Rotational lock ensures safe loading operation

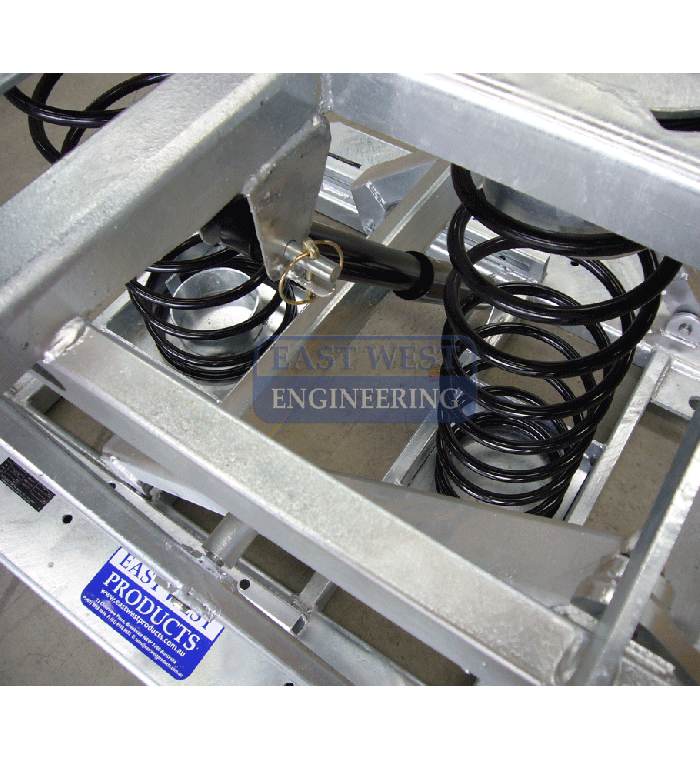

• Supplied with 3 springs (1-3 used depending on weight of pallet)
• Shock absorber provides gradual and controlled raising and lowering
• Fork pockets fitted for easy handling and positioning around the workplace by forklift
• Zinc finish

Details

	Working Load Limit (WLL)	2000kg
	Rotating Table Diameter	Ø 1110mm
	Base Size	915 x 930mm
	Height	230-705mm
	Unit Weight	168kg
	Fork Pocket Size	145 x 40mm
	Fork Pocket Centres	750mm
