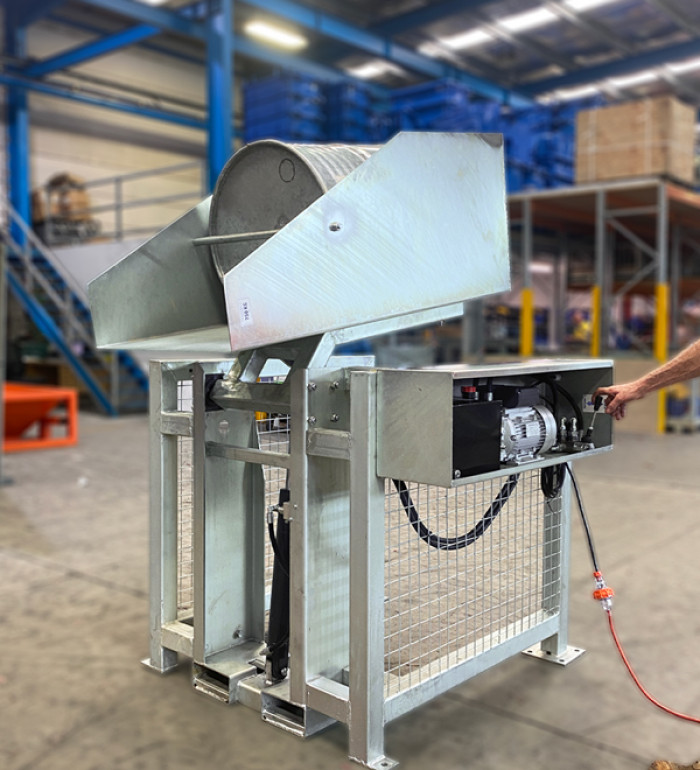

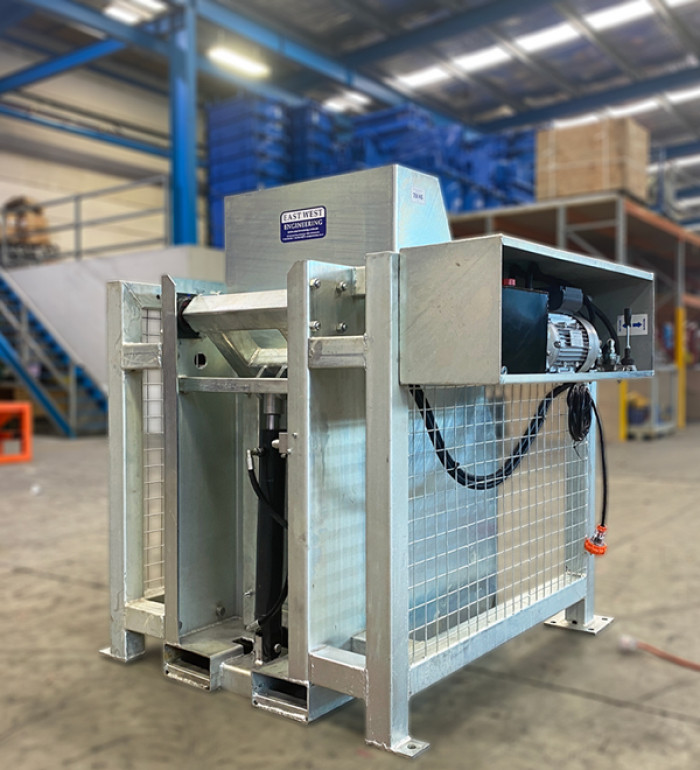

BTS60 Drum Tilter

BKN60 Floor Mounted Drum Tipper

  • BKN60 Floor Mounted Drum Tipper BKN60 Floor Mounted Drum Tipper
  • BKN60 Floor Mounted Drum Tipper BKN60 Floor Mounted Drum Tipper
  • BKN60 Floor Mounted Drum Tipper BKN60 Floor Mounted Drum Tipper
  • BKN60 Floor Mounted Drum Tipper BKN60 Floor Mounted Drum Tipper

Quick Overview

The BKN60 Floor Mounted Drum Tipper is designed to allow safe and effortless tipping of drums.

FEATURES:
• Allows for 130 degree rotation of a standard 205L drum
• Suitable for forklift or hand pallet trolley bin loading
• Operated by hydraulic lever
• Designed with side safety barriers
• Hydraulic power pack, 240-volt, 2.2kw
• Can be customised to suit any application or drum type on request
• Tipping height approx. 1m above floor
• 20 second full tipping cycle
• Stainless steel cradle available on request
• Zinc finish

Details

 Working Load Limit (WLL)  600kg
 Rotation  13
 Overall Dimensions  1360 x 1255 x 1400mm
 Unit Weight   350kg
 Fork Pocket Size  185 x 60mm
 Fork Pocket Centres  350mm

Features
