BKN130 Floor Mounted Mega Bin Tipper

Add to Favourites

Quick Overview

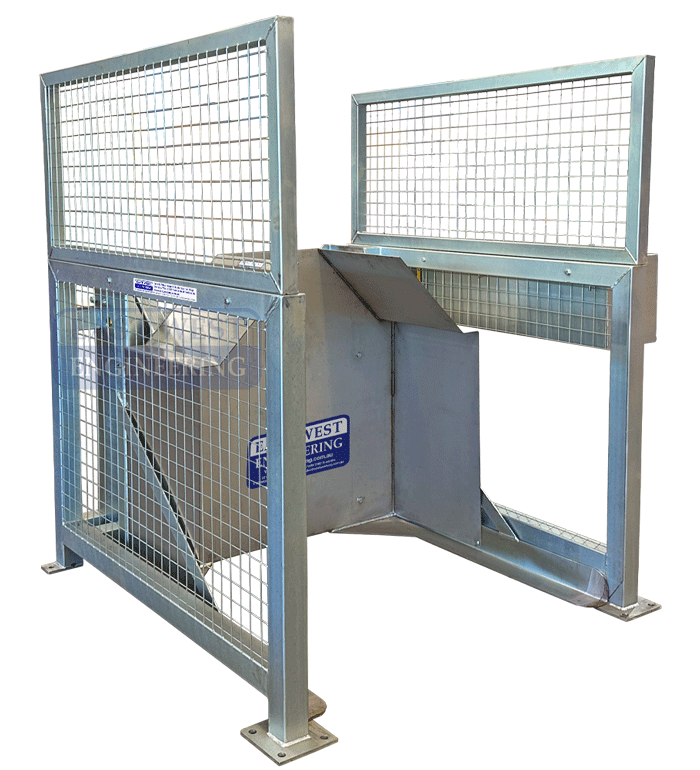

The BKN130 Floor Mounted Mega Bin Tipper with stainless steel chute is designed to allow the effortless tipping of nally bins.

FEATURES:
• Allows for 130 degree rotation of a nally bin
• Operated by hydraulic lever
• Stainless chute guides material flow
• Designed with removable side safety barriers, upper barrier removable
• Suitable for forklift or hand pallet jack bin loading
• Hydraulic power pack, 240-volt, 2.2kw
• Bin retainers secure mega bin in position during rotation
• Tipping height approx. 1100mm above floor
• 42 second full tipping cycle
• Suitable for use in food industry
• Zinc frame / 304 Stainless steel chute

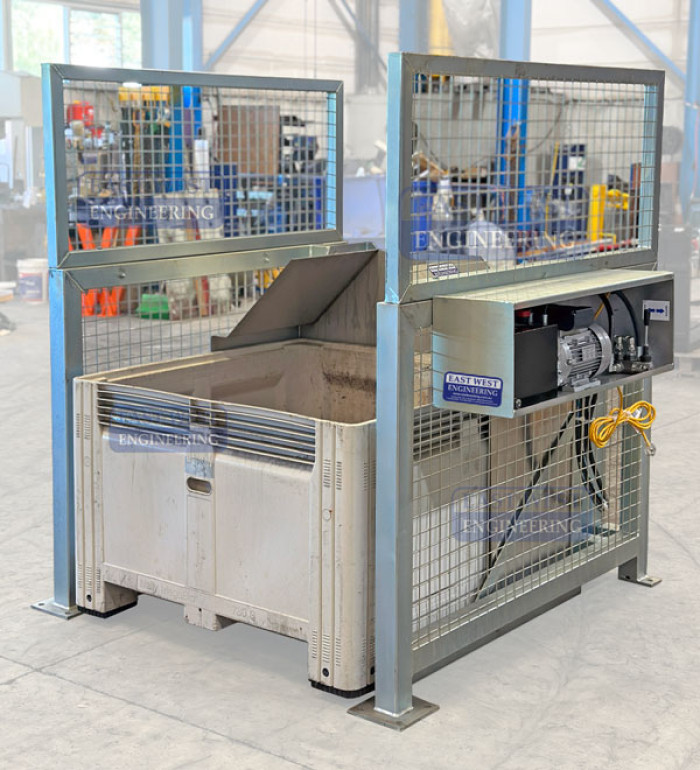

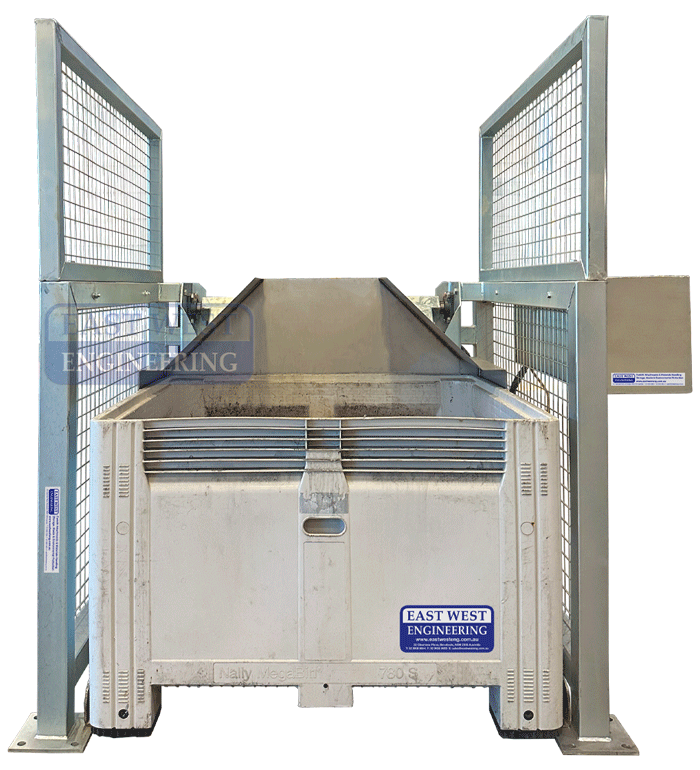

Mega bin not included, shown for illustrative purposes only

Details

Working Load Limit (WLL)	1000kg
Rotation	130°
Tipping Height	1100mm above floor approx.
Tipping Cycle	42 seconds
Overall Dimensions	1745 x 1555 x 1400mm
Dimensions (at full rotation)	1745 x 2155 x 2670mm
Unit Weight	550kg approx.*

* unit weight is subject to configuration supplied
