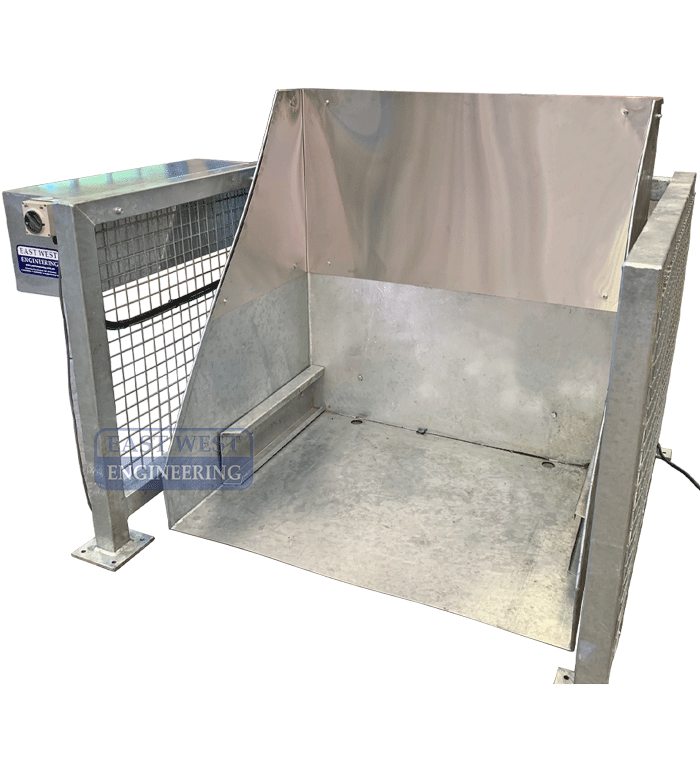

BKN125 Floor Mounted Box Tipper

Add to Favourites

Quick Overview

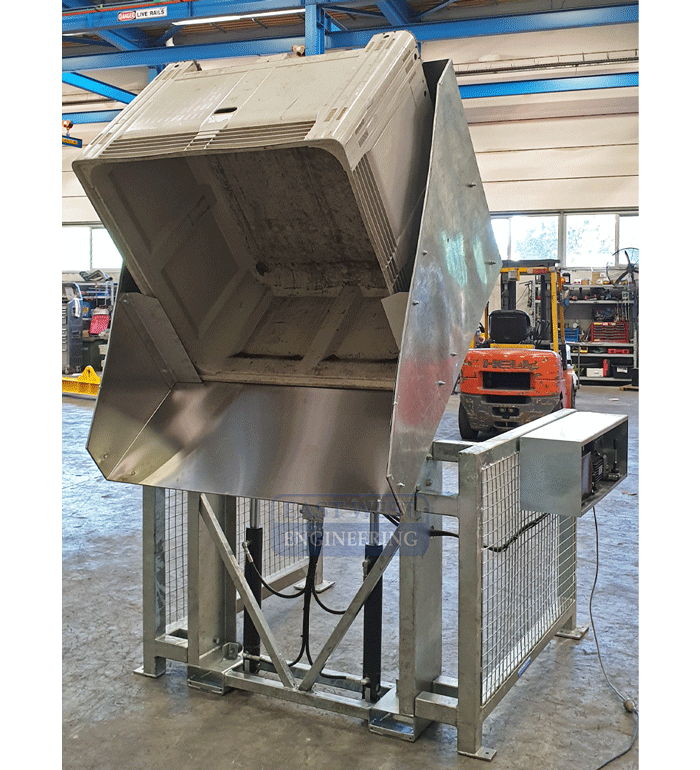

The BKN125 Floor Mounted Box Tipper is designed to allow the effortless tipping of nally bins, chep boxes or wheelie bins.

FEATURES:
• Allows for 130 degree rotation of almost any bin
• Suitable for forklift or hand pallet jack bin loading
• Operated by hydraulic lever
• Supplied with side safety barriers
• Hydraulic power pack, 240-volt, 2.2kw

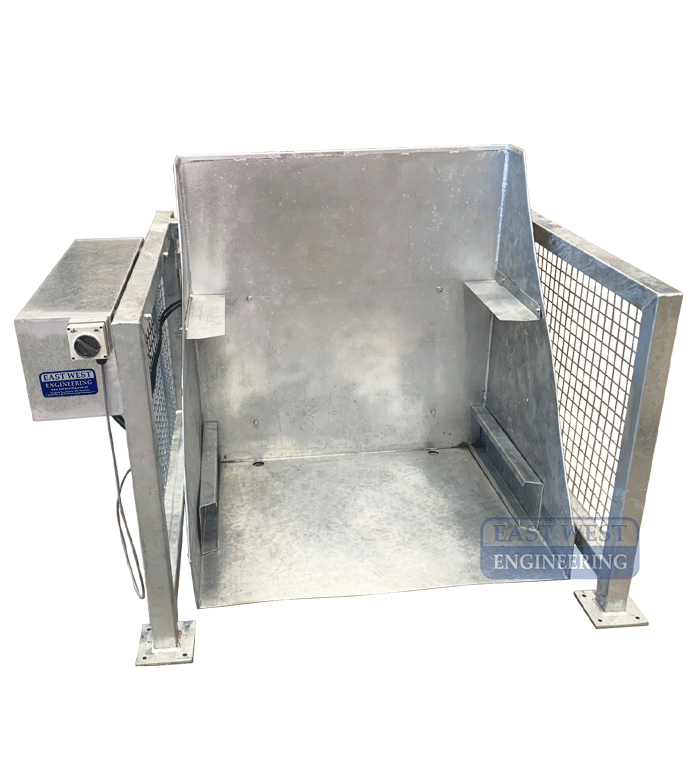

• Bin retainer fitted standard to suit mega bins

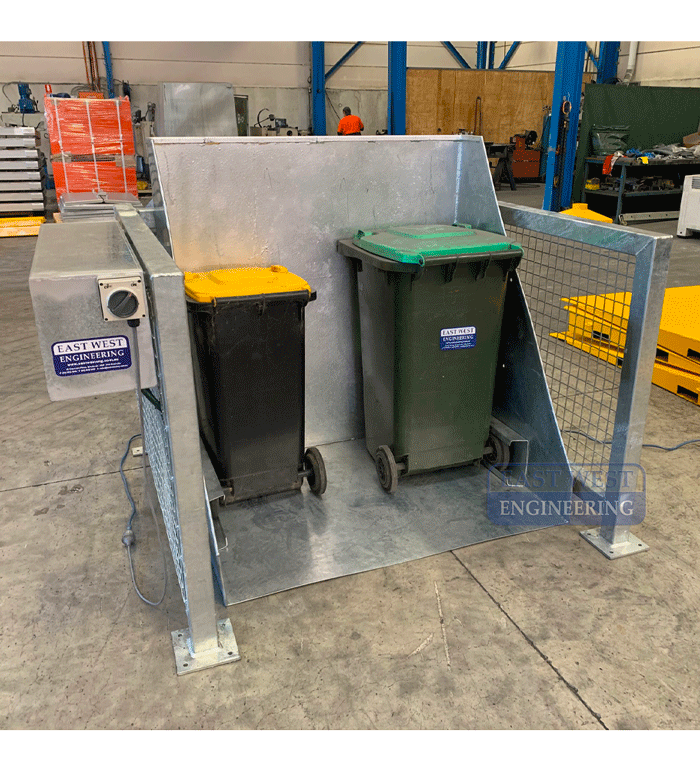

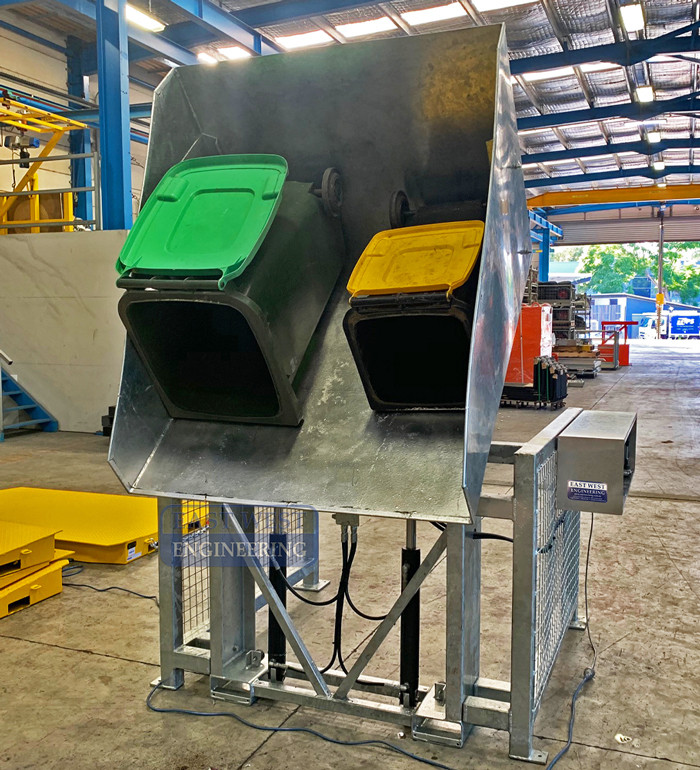

• Wheel guide fitted standard to retain 80/120/240L wheelie bins

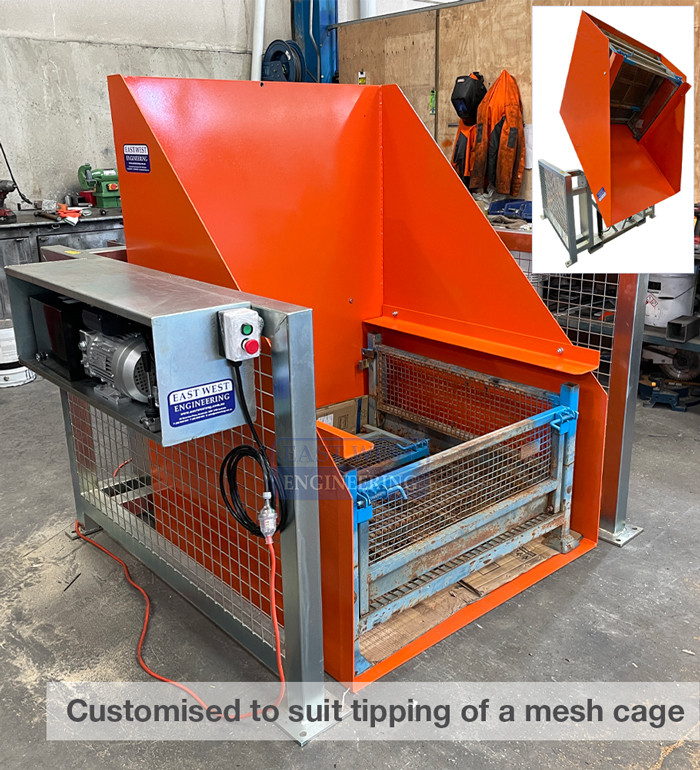

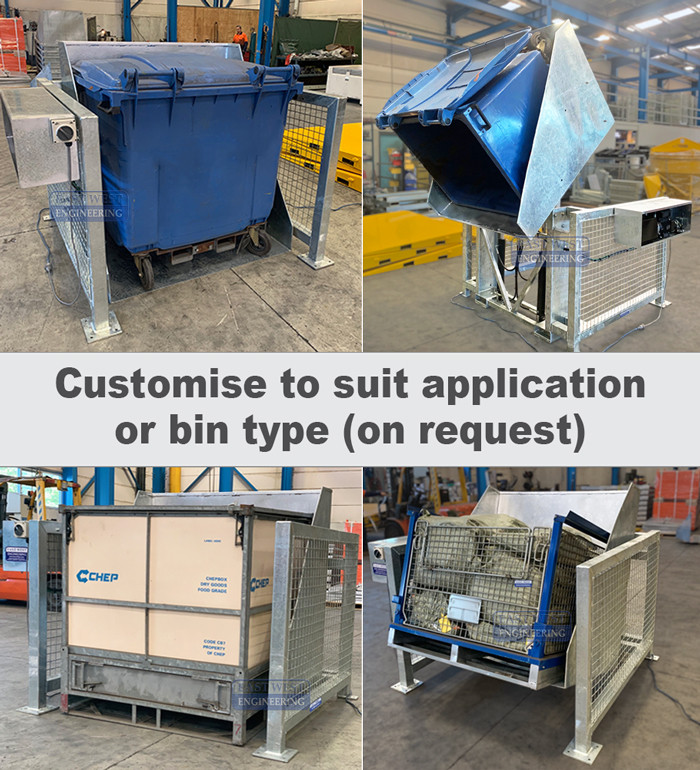

• Can be customised to suit application or bin type on request
• Tipping height approx. 900mm above floor
• 42 second full tipping cycle

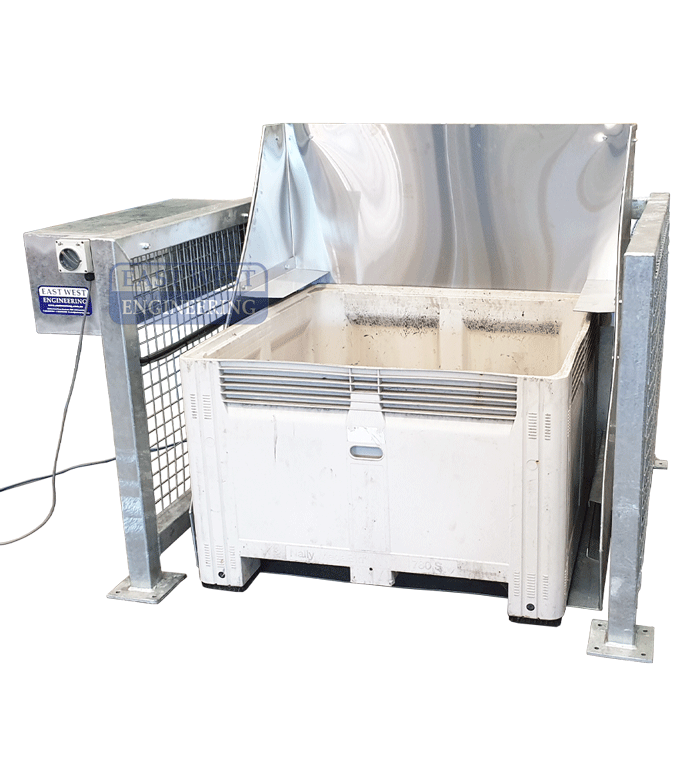

• Available in model (BKN125SS) with stainless back insert

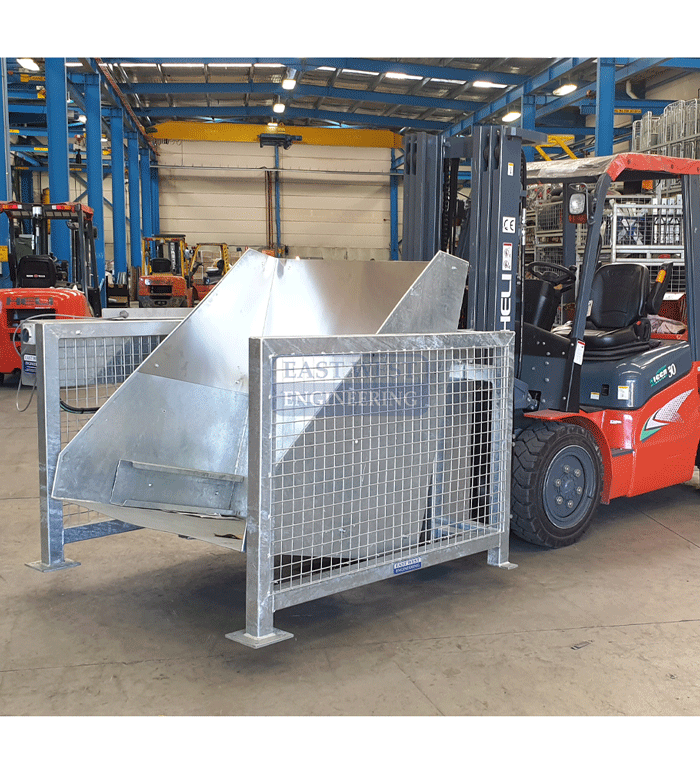

• Available as a fork carriage model on request
• Zinc finish

Details

Working Load Limit (WLL)	1000kg
Rotation	130°
Overall Dimensions	1910 x 1555 x 1400mm
Dimensions (at full rotation)	1910 x 2185 x 2610mm
Unit Weight	500kg approx.*
Fork Pocket Size	185 x 60mm
Fork Pocket Centres	900mm

* unit weight is subject to configuration supplied
