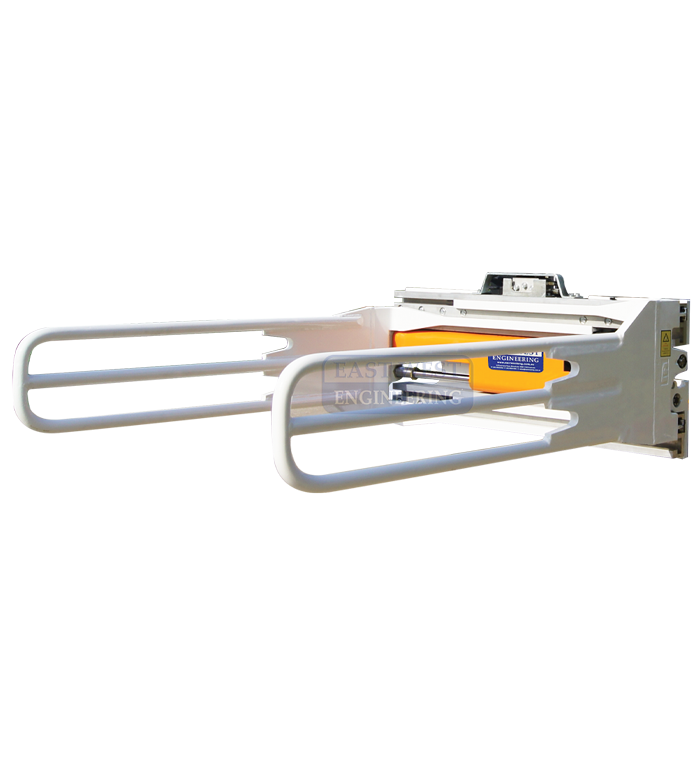

HMC Foam Clamp

Add to Favourites

Quick Overview

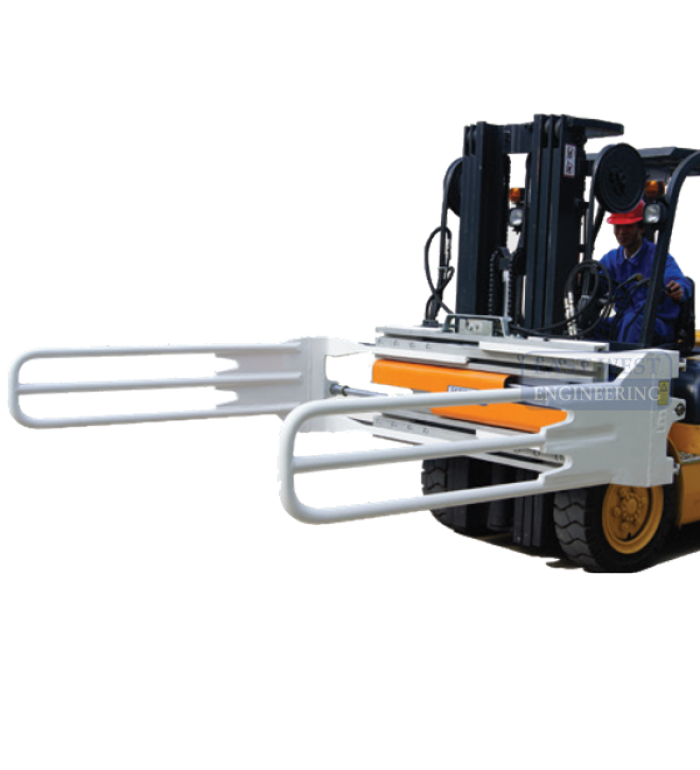

The HMC Foam Clamp is designed to efficiently handle blocks of rubber, polystyrene and other foam materials by forklift.

FEATURES:
• Used to transport non-palletised blocks of rubber and foam
• Lateral sliding arm design for smooth clamping and sideshifting function
• Available in a range of openings and arm designs to suit different loads

• Two additional hydraulic circuits required
• Hoses not included
• Please contact the forklift manufacturer for the residual capacity of attachment

Details

Model	Capacity @ LC (kg @ mm)	Mounting Class	Min. Truck Carriage Width (mm)	Opening Range (mm)	Frame Width (mm)	Arm Length (mm)	Arm Height (mm)	Lost Load (mm)	Unit Weight (mm)
HMC19D-B002	1900@500	II	890	900-2300	1260	1800	400	128	550
HMC19D-B006	1900@500	II	1040	440-2280	1600	1800	600	128	660
HMC19D-C001	1900@500	III	1040	760-2580	1600	1800	600	128	840
HMC19D-C005	1900@500	III	1040	440-2280	1600	1800	400	128	611
HMC27D-C001	2700@500	III	990	760-2600	1600	1800	400	148	710

NOTES:

• Two additional hydraulic circuits required
• Hoses not included
• Opening range refers to the distance between arm tips.
• Please contact the forklift manufacturer for the residual capacity of attachment
• Further technical details available upon request, please call 1800 061 998
