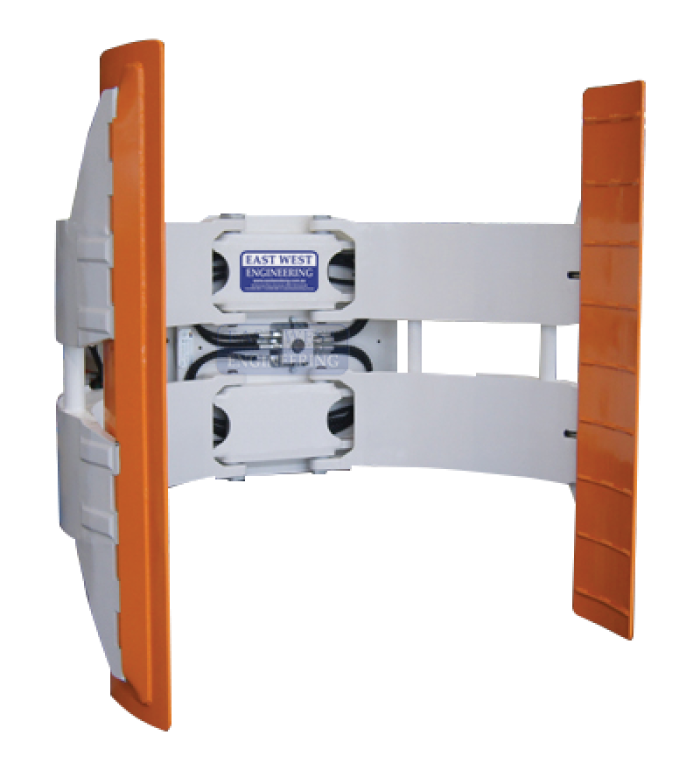

LTJ Tyre Clamp - Rotating

Add to Favourites

Quick Overview

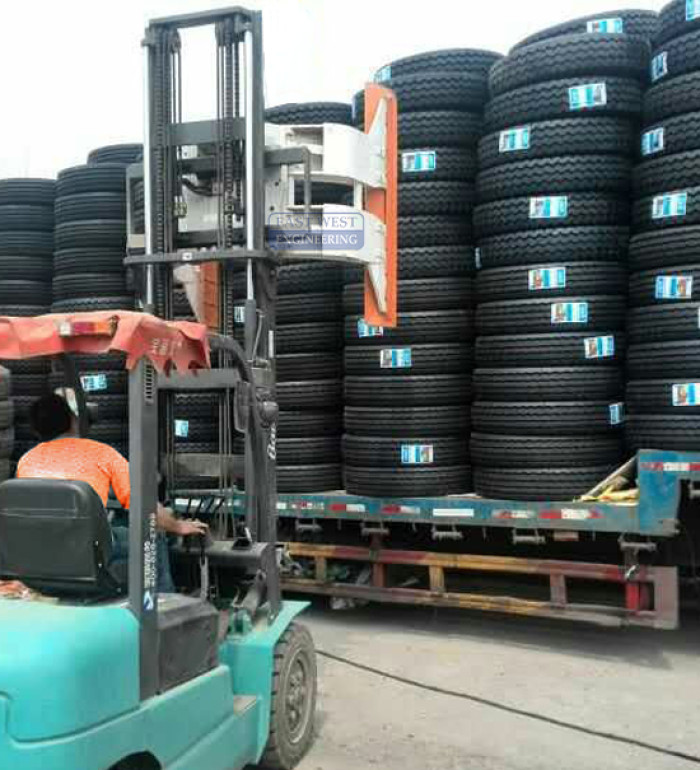

The LTJ Rotating Tyre Clamp is designed for the safe and efficient handling and stacking of tyres during loading and unloading operations by a forklift. 360° rotation allows handling of tyres stacked horizontally or vertically, helping to increase productivity while reducing the risk of manual handling injuries.

FEATURES:
• Used for handling and stacking tyres by forklift
• 360° rotation allows handling of tyres stacked horizontally or vertically
• Contact pad improve grip and safeguard tyres from damage
• Extended arm height allows efficent handling of stacked tyres at once
• Excellent operator visibility
• Commonly used in tyre manufacturing, warehouse, logistics & mining industries

Hoses not included. Two additional hydraulic functions required. Please contact the Forklift manufacturer for the residual capacity of attachment.

Details

Model	Capacity @ LC (kg @ mm)	Mounting Class	Type	Tyre DIA Range (mm)	Long Arm Length (mm)	Short Arm Length (mm)	Long Arm Thickness (mm)	Contact Pad Size (mm)	Lost Load (mm)	Unit Weight (mm)
LTJ12D-B001	1200 @ 500	II	A	410-1300	820	570	95	230x1500	150	460
LTJ17D-C001	1700@900	III	A	750-1800	1175	795	85	300x1500	256	935
LTJ17D-C002	1700@900	III	B	400-1800	1175	795	85	300x1500	256	986
LTJ20D-C001	1900@800	III	B	630-1580	1035	775	95	300x1500	256	810
LTJ20D-C002	1900@800	III	A	350-1580	1035	775	95	300x1500	256	820
LTJ20D-C003	2300@650	III	A	630-1330	835	550	95	300x1500	256	736

NOTES:
• Two additional hydraulic circuits required
• Type A features a fixed position short arm. Type B features an adjustable short arm
• Please contact the forklift manufacturer for the residual capacity of attachment
• Further technical details available upon request, please call 1800 061 998
