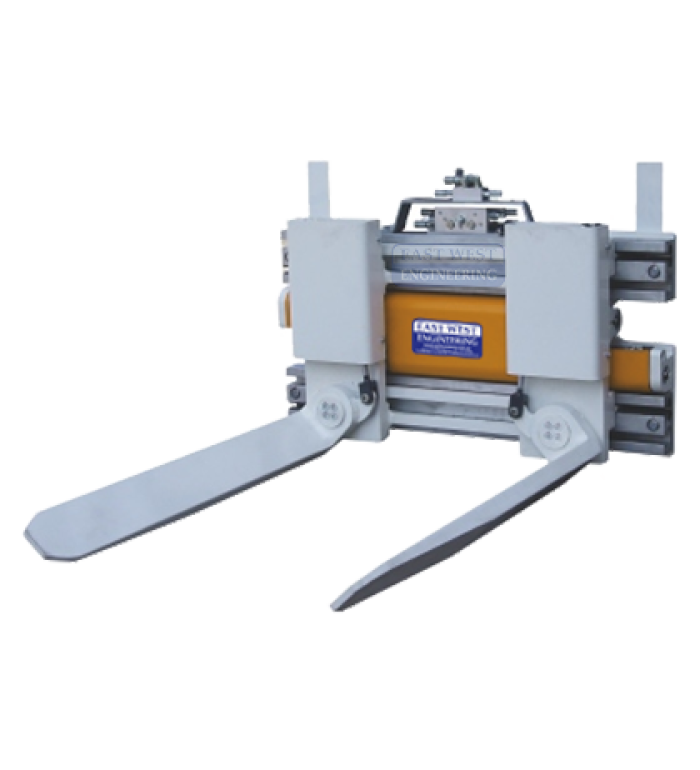

CJL Turnafork Clamp

Add to Favourites

Quick Overview

The CJL Turnafork Clamp is a versatile and multifunction forklift attachment that combines the functionality of conventional forks, fork positioner and a clamp. Its design enables precise positioning, clamping and lifting of various load types.

FEATURES:
• Used to hydraulically position forks for loads with frequently changing widths
• Clamping function allows handling of awkward loads such as barrels, bins, tyres, crates & bales
• Hydraulic (D) or manual (G) rotation of the forks by 90° allows positioning of forks for seamless handling of varying load sizes and shapes
• Inward rotation of forks by 45° allows handling of drums and other cylindrical loads
• Sideshift function enables the forklift to move its load from side to side for ease in stacking, loading & unloading goods
• Lateral sliding arm design for smooth clamping

Opening range refers to the distance between the arm tips. Hoses not included. Please contact the forklift manufacturer for the residual capacity of attachment.

Details

Model	Capacity @ LC (kg @ mm)	Mounting Class	Opening Range P1 (mm)	Opening Range P2 (mm)	Frame Width (mm)	Fork Length (mm)	Lost Load (mm)	Unit Weight (mm)
Hydraulic Rotating Fork Arm Model (D)
CJL23D-C002	2300@600	III	180-1630	450-1900	1260	1220	274	605
Manual Rotating Fork Arm Model (G)
CJX32D-C001	3200@600	III	180-1630	450-1900	1260	1220	272	540

NOTES:
• Hydraulic model (D) requires three additional hydraulic circuits
• Manual model (G) requires two additional hydraulic circuits
• Opening range refers to the distance between the arm tips
• Hoses not included
• Please contact the forklift manufacturer for the residual capacity of attachment
• Further technical details available upon request, please call 1800 061 998
