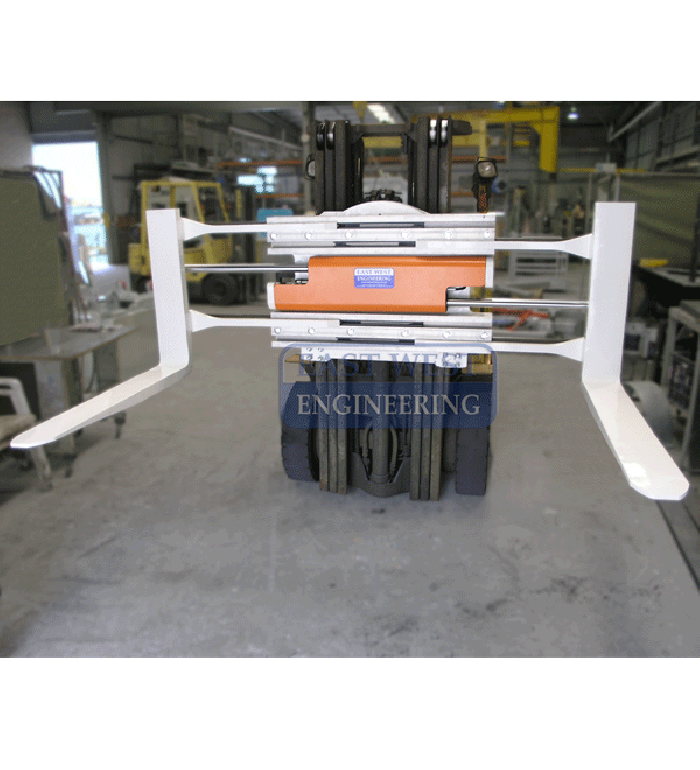

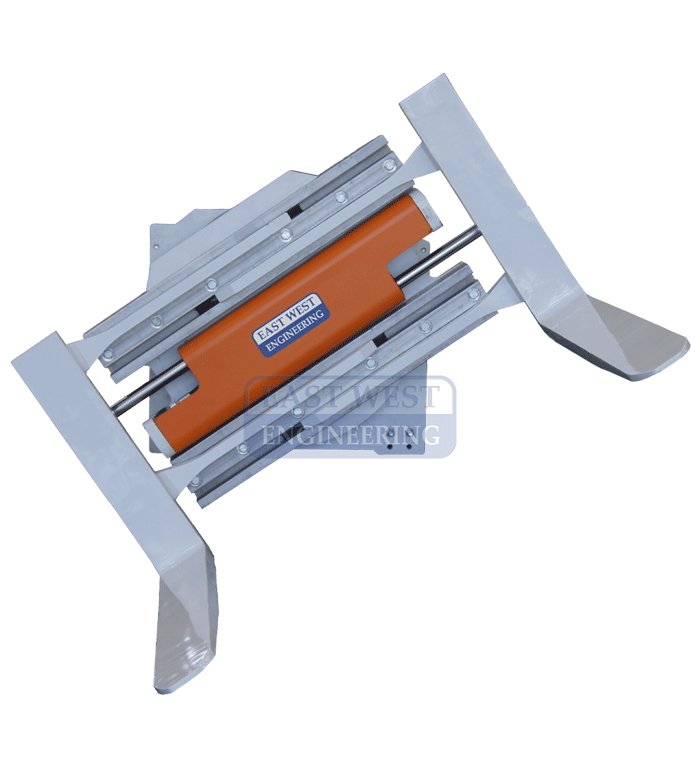

CJX 360° Rotating Fork Clamp

Add to Favourites

Quick Overview

The CJX 360° Rotating Fork Clamp is designed to increased the versatility of a forklift truck to handle a wide range of loads with varying shape and size that require fork positioning, clamping and/or rotating function to handle.

FEATURES:
• Used to hydraulically position forks for loads with frequently changing widths
• Clamping function allows handling of awkward loads such as barrels, bins, tyres, crates & bales
• Rotatabe fork clamps allow different bin types to be handled and emptied
• Lateral sliding arm design for smooth clamping
• Available in a wide range of openings and fork lengths
• Commonly used in industries such as recyling, logistics, warehouse and manufacturing

Two additional hydraulic circuits required. Opening range refers to the distance between the forks inner tips. Hoses not included. Please contact the forklift manufacturer for the residual capacity of attachment.

Details

Model	Capacity @ LC (kg @ mm)	Mounting Class	Opening Range (mm)	Frame Width (mm)	Fork Length (mm)	Lost Load (mm)	Unit Weight (mm)
CJX16D-B002	1600@600	II	405-1660	940	1065	287	579
CJX23D-B009	2300@600	II	310-1550	1065	1200	287	647
CJX23D-C001	2300@600	III	426-1780	1015	1065	366	704
CJX23D-C003	2300@600	III	426-1780	1015	1200	366	713
CJX32D-C001	3200@600	III	420-1950	1260	1220	328	1050
CJX32D-D002	3200@600	IV	400-2100	1450	1500	383	1150

NOTES:
• Two additional hydraulic circuits required
• Opening range refers to the distance between the forks inner tips
• Hoses not included
• Please contact the forklift manufacturer for the residual capacity of attachment
• Further technical details available upon request, please call 1800 061 998
