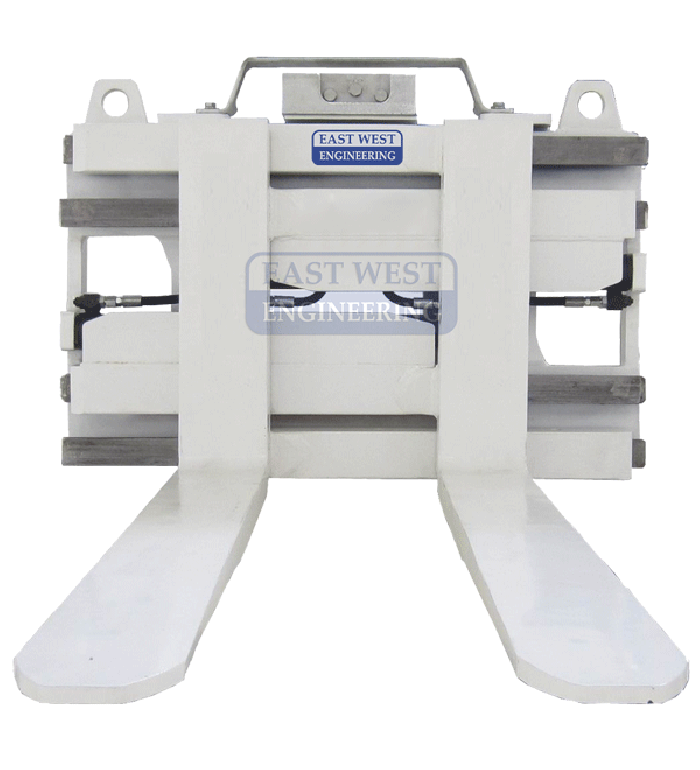

CJC Sideshifting Fork Clamp

Add to Favourites

Quick Overview

The CJC Sideshifting Fork Clamp is designed to increased the versatility of a forklift truck to handle a wide range of loads with varying shape and size that require fork positioning and/or clamping function to handle.

FEATURES:
• Used to hydraulically position forks for loads with frequently changing widths
• Clamping function allows handling of awkward loads such as barrels, bins, tyres, crates & bales
• Sideshift function enables the forklift to move its load from side to side for ease in stacking, loading & unloading
• Lateral sliding arm design for smooth clamping and sideshifting function
• Available in a wide range of openings and fork lengths
• Commonly used in industries such as recycling, logistics, warehouse and manufacturing

Two additional hydraulic circuits required. Opening range refers to the distance between the forks inner tips. Hoses not included. Please contact the forklift manufacturer for the residual capacity of attachment.

Details

Model	Capacity @ LC (kg @ mm)	Mounting Class	Opening Range (mm)	Frame Width (mm)	Fork Length (mm)	Lost Load (mm)	Unit Weight (mm)
CJC23D-B005	2300@600	II	260-1600	1212	1220	216	500
CJC23D-B006	2300@600	II	310-1450	962	1200	197	395
CJC23D-B007	2300@600	II	420-1960	1212	1100	206	440
CJC23D-C001	2300@600	III	430-1780	1015	1066	216	422
CJC23D-C007	2300@600	III	420-1960	1212	1100	206	440

NOTES:
• Two additional hydraulic circuits required
• Opening range refers to the distance between the forks inner tips
• Hoses not included
• Please contact the forklift manufacturer for the residual capacity of attachment
• Further technical details available upon request, please call 1800 061 998
