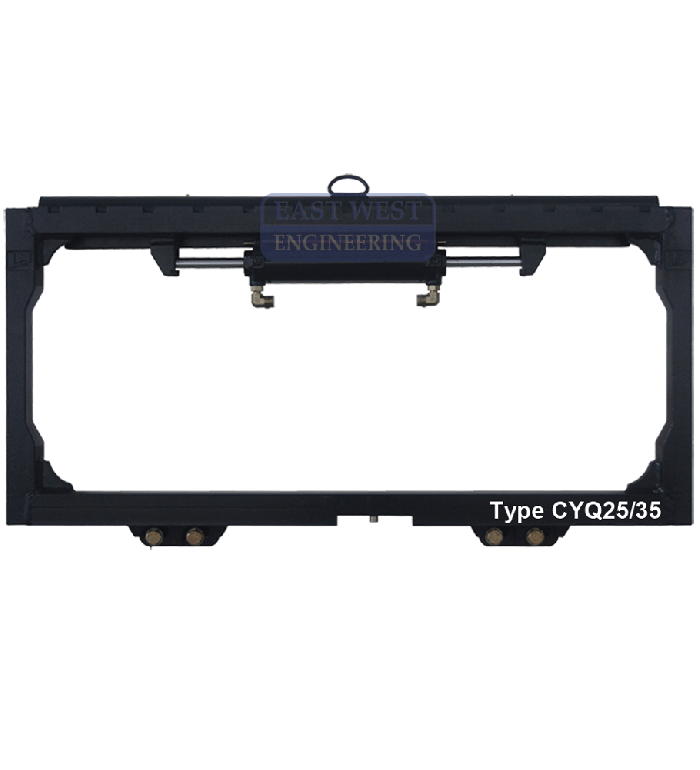

CYQ25/35 Sideshift (2.5-3.5T)

Add to Favourites

Quick Overview

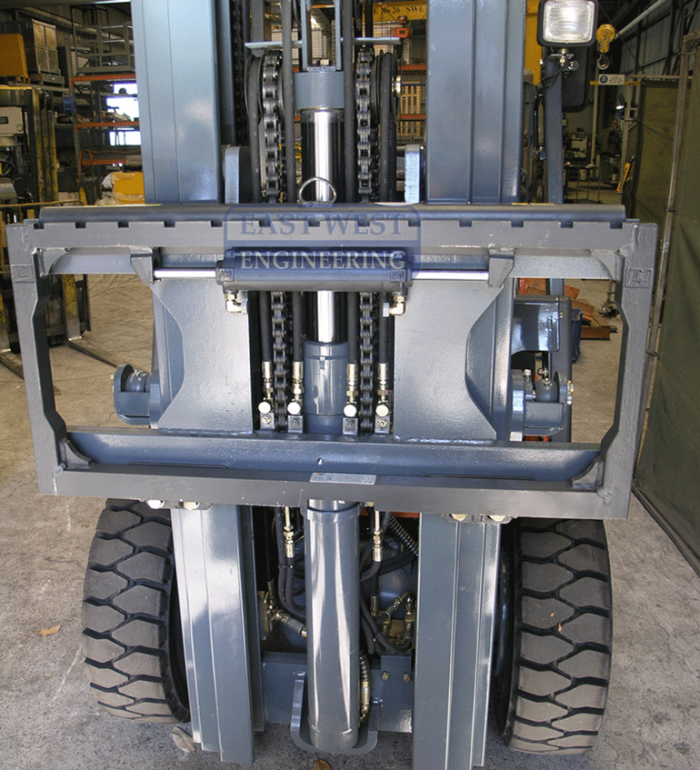

The CYQ25/35 Sideshift allows lateral movement of the load, enabling the forklift operator to place the load in the correct position without various movements of the forklift truck.

FEATURES:
• Enables forklift operator to move loads from side to side
• Adjustment of load provides greater flexibility for stacking, loading, unloading and placement of loads
• Equal sideshifting force
• Maximum residual capacity due to minimum weight and lost load
• Quick and simple installation – no welding required
• Excellent forklift operator visibility

Tines and hoses not included. Sideshift range: +/-100mm. Please contact the Forklift manufacturer for the residual capacity of attachment.

Details

Model	Capacity @ LC (kg @ mm)	Mounting Class	Carriage Width (mm)	Min. Truck Carriage Width (mm)	Lost Load (mm)	Unit Weight (mm)
CYQ25-1020	2500 @ 600	II	1020	895	64	52
CYQ25-1200	2500 @ 600	II	1200	1040	64	59
CYQ25-1260	2500 @ 600	II	1260	1100	64	62
CYQ35-1070	3500 @ 600	III	1070	935	64	67
CYQ35-1200	3500 @ 600	III	1200	1035	64	73
CYQ35-1260	3500 @ 600	III	1260	1070	64	74

* Other sizes and capacities available upon request
