TJCS25 Tiltable Telescopic Jib (Short) 2.5T

Add to Favourites

Quick Overview

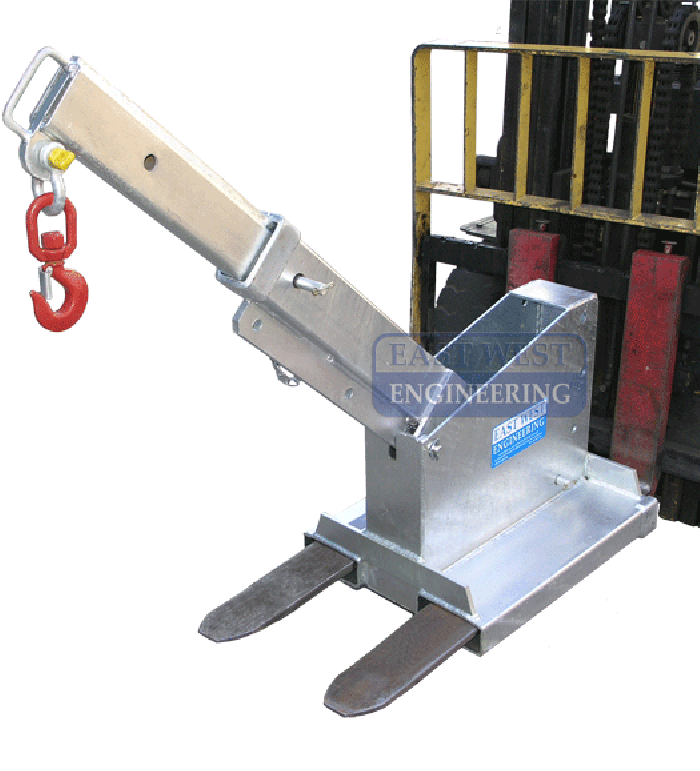

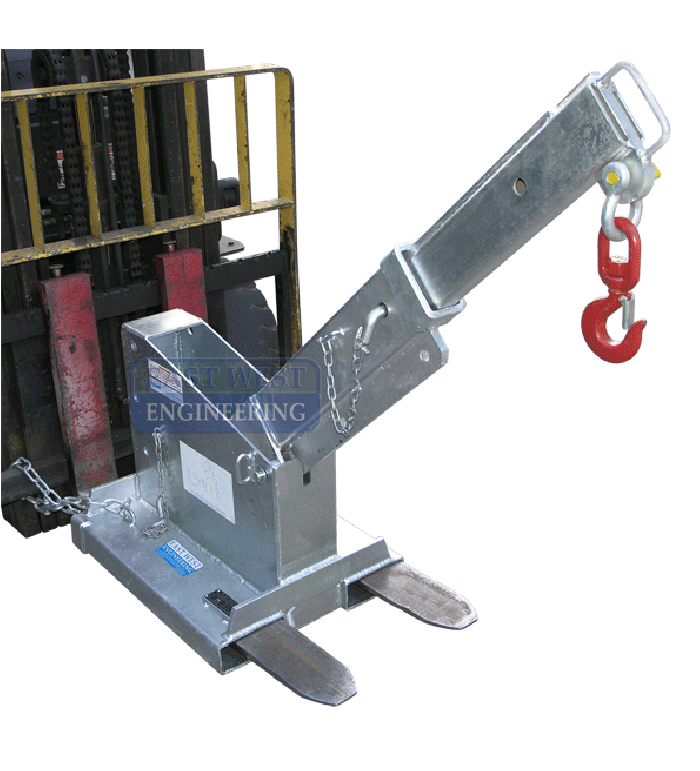

The TJCS25 Tiltable Telescopic Jib is a 2.5 tonne short reach forklift jib with tilt facility allowing extra lift height to compensate the hook and sling length lost, suitable for lifting and general maintenance in confined spaces.

FEATURES:
• 2.02m reach when fully extended
• 3 tilt settings to a maximum height of 1.4m
• 1.35m overall length when retracted
• Supplied with safety swivel hook and shackle
• Slip-on attachment and safety chain allows quick connection to a forklift
• Zinc finish

Details

	Working Load Limit (WLL)	2500kg
	Load Centre	825mm
	Unit Weight	130kg
	Fork Pocket Size	185 x 65mm
	Fork Pocket Centres	362mm

Working Load Limit (WLL) per Position
Position	1	2	3	4	5
Extension	825	1125	1260	1640	2020
WLL (kg)	2500	1800	1200	900	750
