FE Fork Extension Slippers

Add to Favourites

Quick Overview

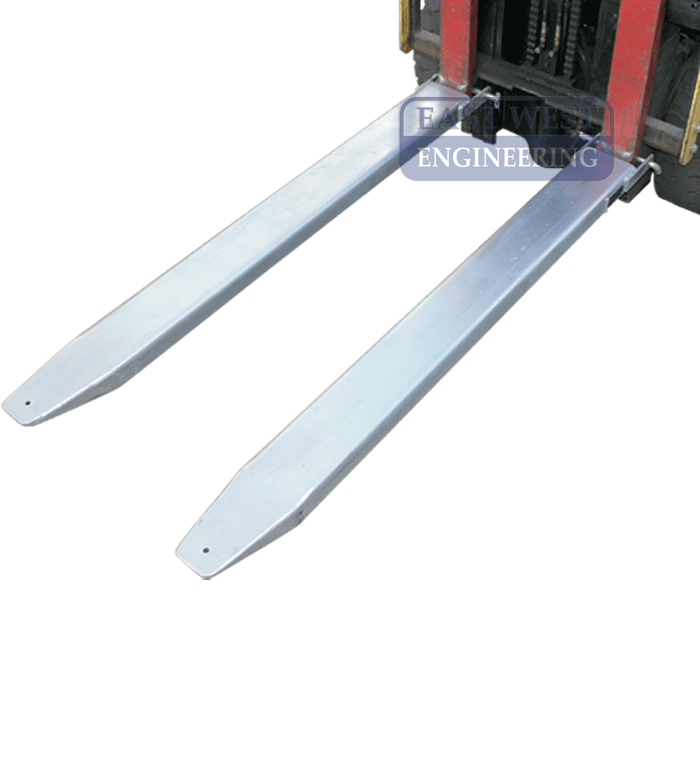

Designed to extend the length of fork tines and versatility of your forklift truck. The slimline profile FE Fork Extension Slippers are designed and manufactured in accordance with AS 2359.15.

FEATURES:

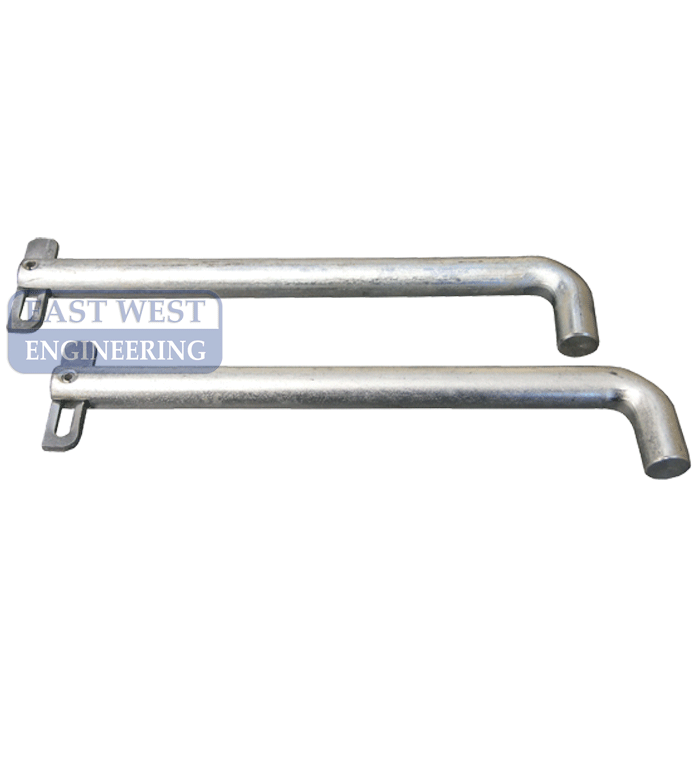

• Supplied with toggle locking pins for securing to forks
• Fitted with rating plate
• Can be manufactured up to 16T capacity
• Zinc finish

Fork tines must be measured to ensure correct fit

Slippers used for general usage should be no longer than 167% of the supporting tine length. If the slippers are longer than 167%, then the usage of those slippers shall be restricted to their specified application. All slippers are sold as a pair.

Details

Model	WLL (kg)	Load Centre (mm)	Length (mm)	Maximum Tine Size (mm)	Minimum Tine Length (mm)	HCG (mm)	Weight / pair (kg)
FE1-16	2500	500	1600	100 x 45	960	694	42
FE1-18	2500	500	1780	100 x 45	1068	783	46
FE1-20	2500	500	2000	100 x 45	1200	893	52
FE1-24	2500	500	2400	100 x 45	1440	1092	61
FE2-16	4000	500	1600	130 x 50	960	733	60
FE2-18	4000	500	1780	130 x 50	1068	833	66
FE2-20	4000	500	2000	130 x 50	1200	915	74
FE2-24	4000	500	2400	130 x 50	1440	1132	88
FE3-18	5000	500	1780	155 x 55	1068	809	77
FE3-20	5000	500	2000	155 x 55	1200	919	86
FE3-24	5000	500	2400	155 x 55	1440	1118	102
FE3-30	5000	500	3000	155 x 55	1800	1418	126
FE4-18	8000	600	1780	160 x 65	1068	836	133
FE4-20	8000	600	2000	160 x 65	1200	922	148
FE4-24	8000	600	2400	160 x 65	1440	1136	177
FE4-30	8000	600	3000	160 x 65	1800	1436	221

NOTE: Fork tines must be measured to ensure correct fit.

The FE1 range suits a maximum 100x45mm fork size.
For fork sizes above this (even if you have a 2.5T forklift), you must order the next size up.
For example a 2.5T Forklift fitted with 125x45mm fork size suits the FE2 range.

If in doubt, please call East West Engineering for advice on 1800 061 998.
