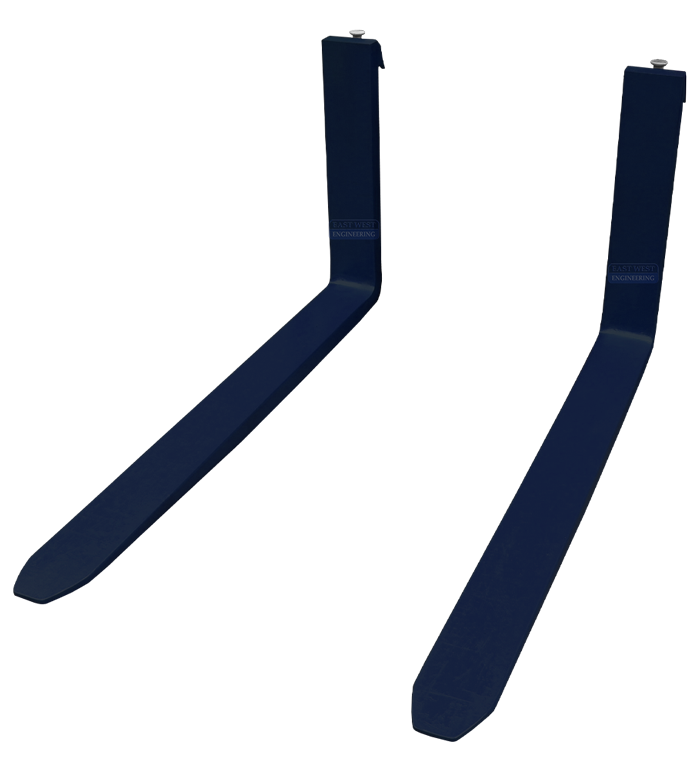

FA Fork Arms

Add to Favourites

Quick Overview

The FA Fork Arms are designed and manufactured in accordance with AS2359.1.

FEATURES:
• Manufactured from high tensile steel
• Light weight, slow wearing ensuring a long reliable service life
• Fitted with Standard ITA hooks
• Rotator Fork Arms (R) are manufactured to suit carriage rotators with an additional full load bearing block (3rd hook) allowing equal rated load when fully inverted
• Random testing carried out in accordance with AS2359.1, clause 6.5
• Custom sizes available on request

When fitting fork arms ensure that the marking on the fork arms is compatible with the forklift rating. Each fork arm is stamped on the side with the relevant information. The rating is for an individual fork arm and should be doubled to provide a total safe working load. The fitting of fork arms with a lower rating than the forklift truck could lead to failure, resulting in injury or death.

Details

Model	WLL/pair @ 500mm LC (kg)	Width (mm)	Thickness (mm)	Length (mm)	Mounting Class	Weight/ pair (kg)
FA15-107	1500	100	35	1070	Class 2 – 407mm	82
FA25-107	2500	120	40	1070	Class 2 – 407mm	112
FA25-120	2500	120	40	1200	Class 2 – 407mm	123
FA25-120R	2500	120	40	1200	Class 2 – 407mm	123
FA35-107	3500	125	50	1070	Class 3 – 508mm	152
FA35-120	3500	125	50	1200	Class 3 – 508mm	166
FA35-120R	3500	125	50	1200	Class 3 – 508mm	166
FA45-107	4500	150	50	1070	Class 3 – 508mm	179
FA45-120	4500	150	50	1200	Class 3 – 508mm	197
FA45-120R	4500	150	50	1200	Class 3 – 508mm	197
FA60-120	6000	150	60	1200	Class 4 - 635mm	260
FA60-120R	6000	150	60	1200	Class 4 - 635mm	260

* Fork Arms are supplied in a range of capacities and lengths.

** Always ensure that the rating of the Fork Arm is equal to or exceeds the rated lift capacity of the fork truck.
