DC-GR2-HPP Hydraulic Drum Rotator

Add to Favourites

Quick Overview

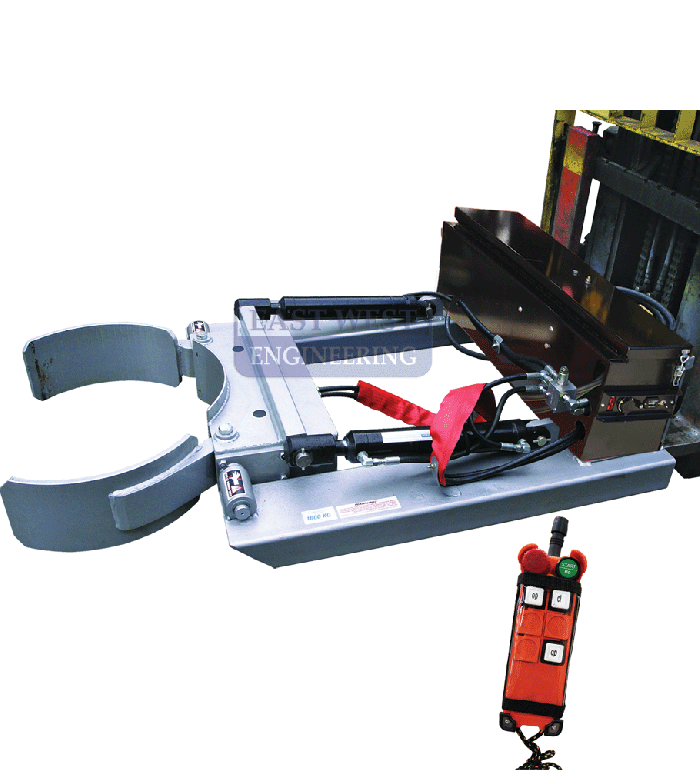

The DC-GR2-HPP Hydraulic Drum Rotator is fitted with a self contained battery/electric operated hydraulic power pack (HPP) to hydraulically grab, lift and rotate a 205 litre drum, allowing the safe and reliable emptying of drums without the need to connect to the forklift hydraulic system. This unit can pick a single drum from a pallet of 4, without disturbing the other 3.

FEATURES:
• Use with existing forklift to grab, lift and rotate a drum 130 degrees, allowing for emptying of product
• Allows safe transport of drums around the worksite
• Heavy lift capacity suits a 205 litre drum weighing up to 1000kg
• Fitted hydraulic power pack eliminates the need to connect to forklifts hydraulic system
• Operation of the attachment is via a remote controlled pendant
• Slip-on attachment allows quick connection to a forklift
• Commonly used in the food processing, recycling and mining industry
• Enamel paint finish

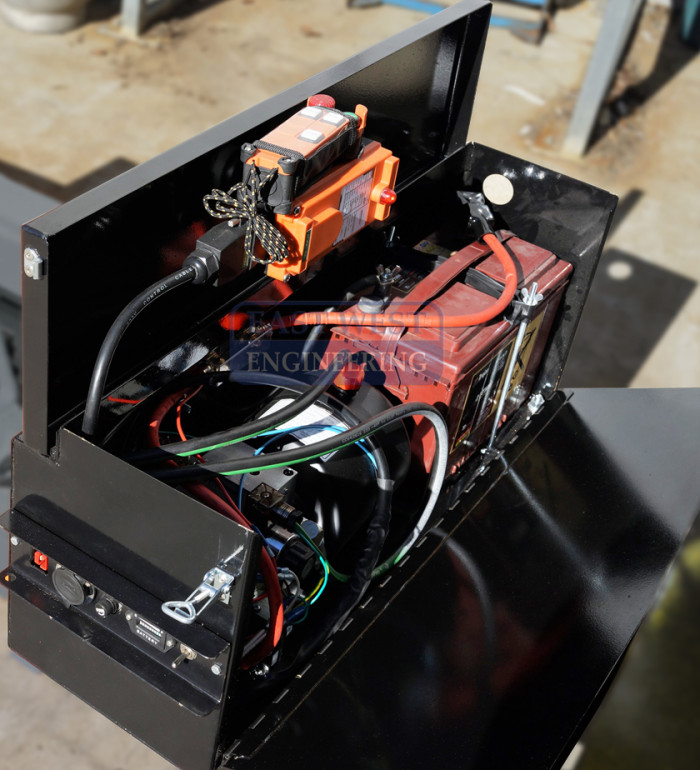

HYDRAULIC POWER PACK (HPP) FEATURES:
• Remotely controlled pendant (50m distance range) with spare pendant supplied
• 12-Volt DC Hydraulic Pump
• Battery & battery charger
• Robust cabinet box protects all components
• Quality hydraulic components
• Incorporated safety features include a two-button opening function and emergency stop
• 180 AMP fuse protects the electrical circuit whilst a secondary 10 AMP fuse adds further protection to the remote control system & solenoid coils

Details

Working Load Limit (WLL)	1000kg
Load Centre	1300mm
Rotation	130°
Unit Weight	295kg
Fork Pocket Size	185 x 65mm
Fork Pocket Centres	874mm
