RBC Bale Clamp

Add to Favourites

Quick Overview

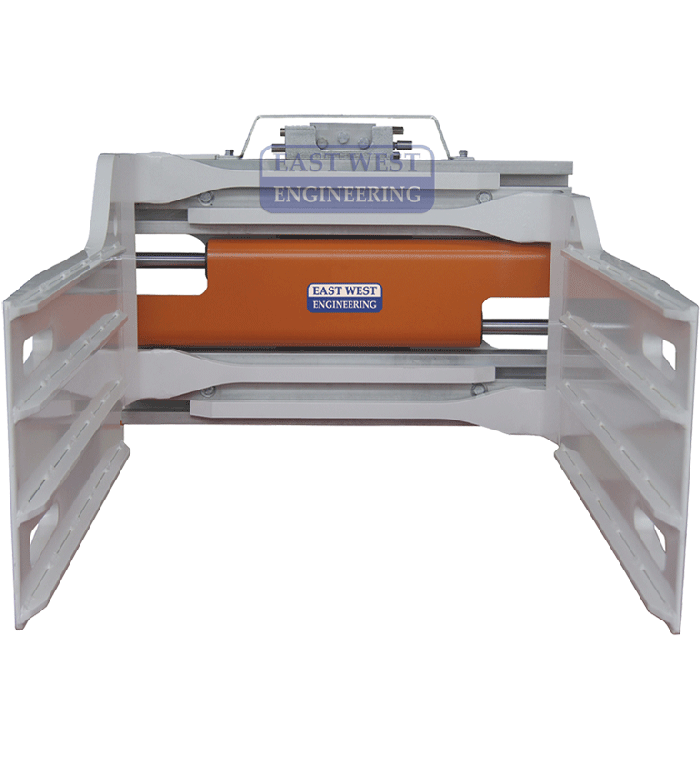

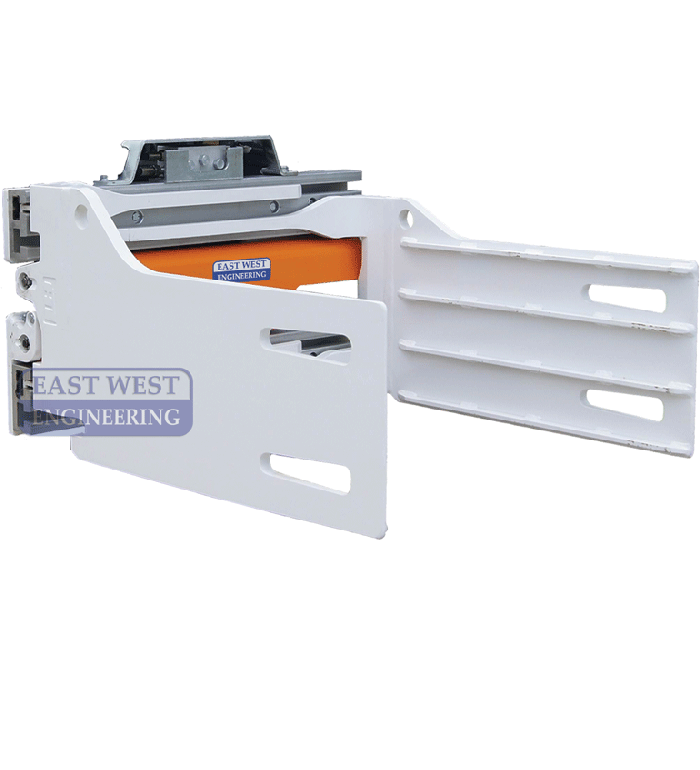

The RBC Bale Clamp is designed to efficiently handle baled products or blocks.

FEATURES:
• Enable forklift operator to clamp unpalletised loads

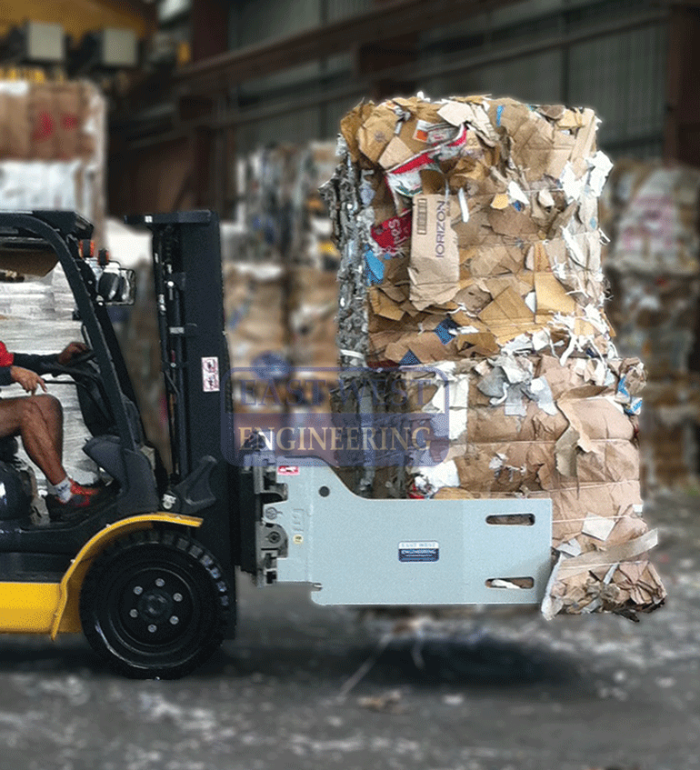

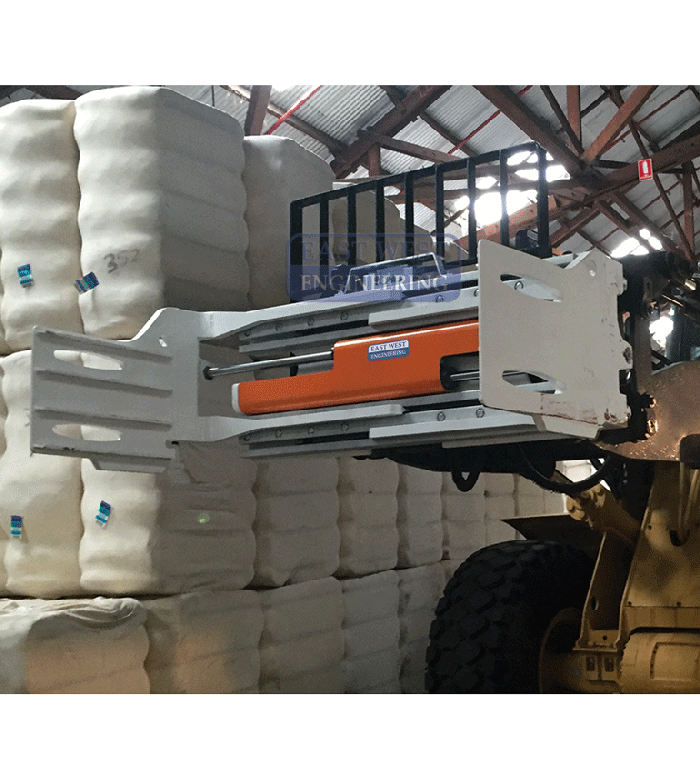

• Commonly used for handling baled products like waste paper, cotton, wool, textile and metal scrap bales
• Lateral sliding arm design for smooth clamping and sideshifting function
• Ribbed arms for secure grip and handling of load
• Available in a wide range of openings and arm lengths
• Maximum residual capacity due to minimum weight and lost load
• Cylinder protection to prevent damage
• Robust design
• Sideshift function

NOTE:

• Two additional hydraulic circuits required
• Opening range refers to the distance between arm tips
• Sideshift range: +/-100mm
• Hoses not included
• Please contact the forklift manufacturer for the residual capacity of attachment
• Further technical details available upon request, please call 1800 061 998

Details

Model	Capacity @ LC (kg @ mm)	Mounting Class	Opening Range (mm)	Arm Height (mm)	Arm Length (mm)	Frame Width (mm)	Arm Thickness (mm)	Lost Load (mm)	Unit Weight (mm)
RBC20D-B002	2000@500	II	450-1730	415	1180	1040	80	130	460
RBC20D-B004	2000@500	II	450-1730	415	780	1040	75	130	377
RBC20D-B007	2000@500	II/III	430-2260	415	1180	1600	80	130	545
RBC22D-C004	2200@500	II/III	490-2330	460	750	1600	75	146	610
RBC28D-C002	2800@500	III	580-1930	460	1180	1015	80	150	585
RBC28D-C004	2800@500	III	590-2110	460	1183	1200	80	150	620
RBC28D-C024	2800@500	III	490-2330	460	750	1600	75	150	610

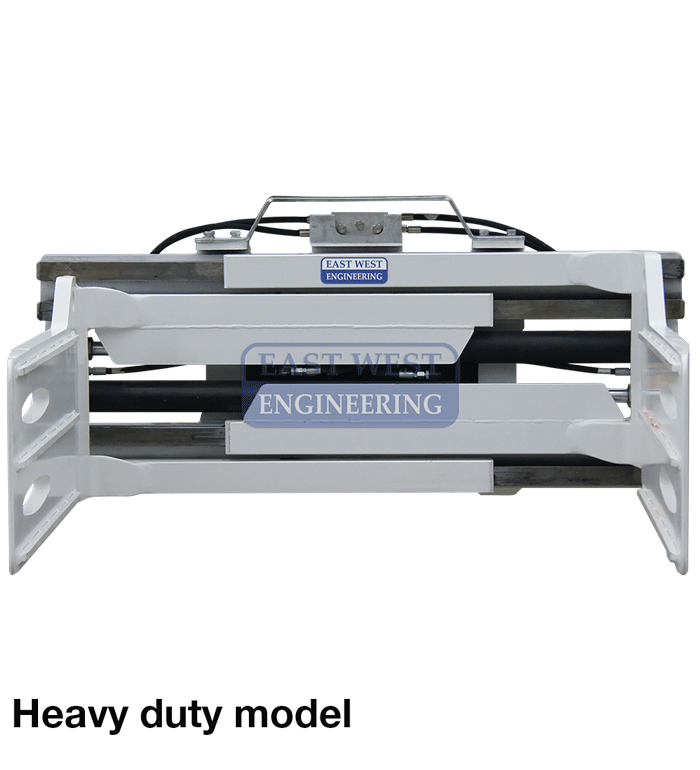

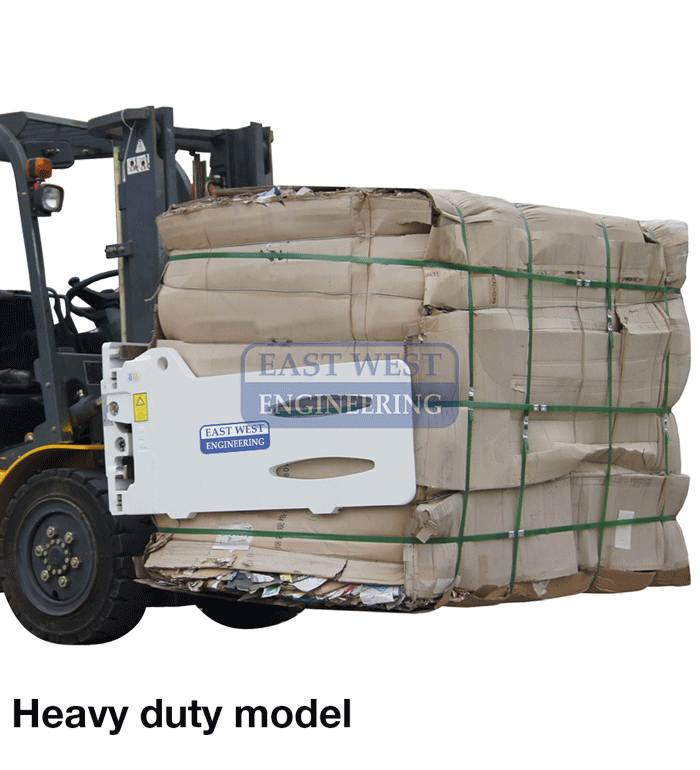

Heavy Duty Range
RBC30F-C001	3000@500	III	750-2100	460	1200	1265	85	140	776
RBC30F-C002	3000@500	III	460-2300	460	1200	1680	85	140	857
RBC30F-C003	3000@500	III	530-1880	460	1200	1130	85	140	720
RBC30F-C006	3000@500	III	610-2450	460	1200	1680	85	140	845
RBC30F-C007	3000@500	III	520-1870	460	900	1130	75	140	660
RBC35F-C006	3500@600	III	560-2630	460	1000	1820	95	162	1070
RBC35F-D001	3500@600	IV	690-2760	460	1350	1700	90	162	1150
RBC35F-D004	3500@600	IV	660-2560	460	1600	1540	95	162	1220
RBC35F-D006	3500@600	IV	560-2630	460	1000	1820	95	162	1070
RBC35F-D007	3500@600	IV	560-2630	460	1500	1820	95	162	1240
RBC50F-D001	5000@600	IV	580-2500	460	1600	1650	95	182	1530
