CEXL1726 Spreader Beam (5T)

Add to Favourites

Quick Overview

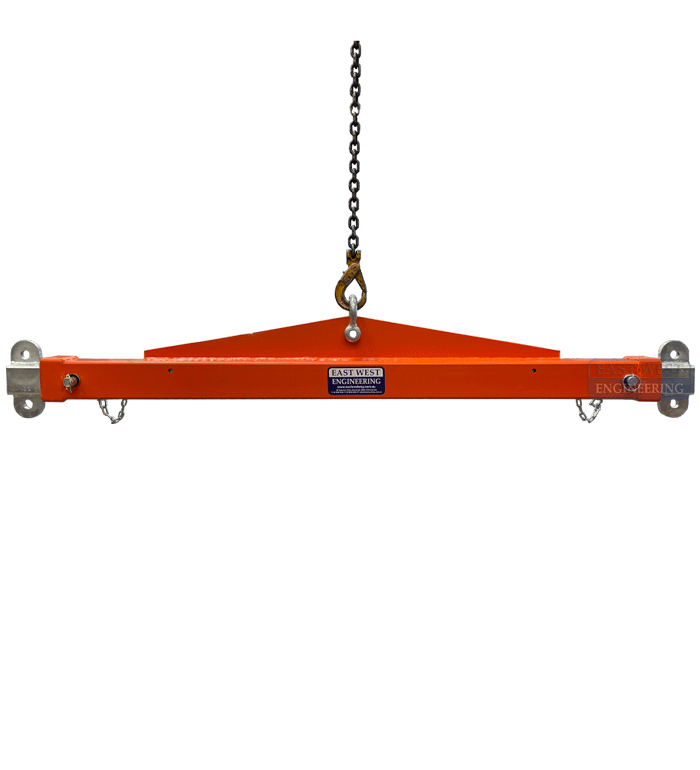

The CEXL1726 Crane Spreader Beam is designed to lift long loads via the centre single hook point (as a Lifting Beam), or end lifted using a 2 leg chain sling (as a Spreader Beam) by overhead crane.

FEATURES:
• Multi-tasking beam can be used as a Lifting Beam or Spreader Beam

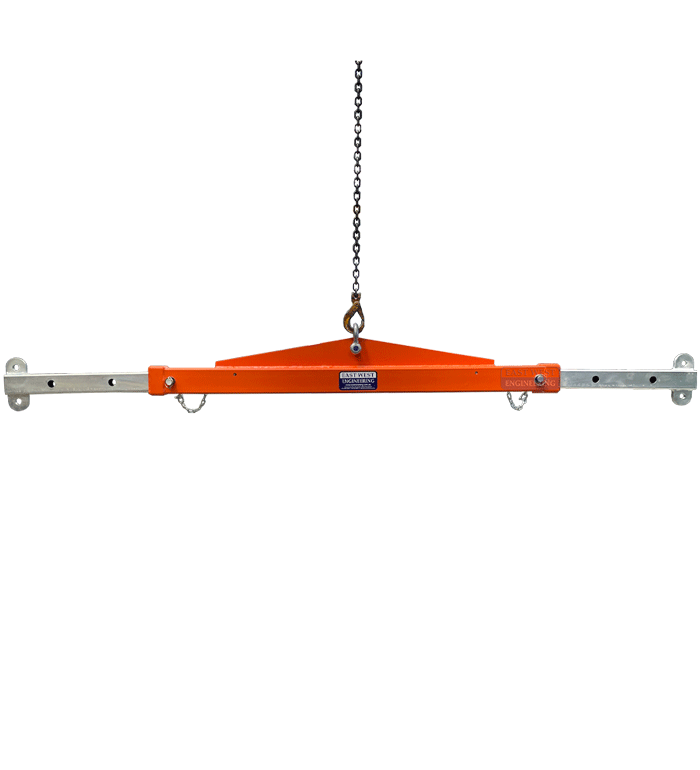

• Load connection points are adjustable to 3 positions by moving the extendable arms
• 1700, 2150 & 2600mm load centres
• Safety pins used to securely lock extendable arms in position
• Supplied standard with 2 safety swivel hooks
• Certified to the relevant Australian Standards
• Zinc finish on extendable arms, enamel paint finish on main body

EAST WEST ENGINEERING ARE THE DESIGNER OF THIS PRODUCT AND HAVE PROOF OF CONFORMANCE TO AUSTRALIAN STANDARDS AND CERTIFICATION. BEWARE OF COPY PRODUCTS

Details

Rated Capacity (RC) - 60° chain angle				Unit Weight (kg)
when used as	Fully Retracted (LC@1700mm)	Middle Position (LC@2150mm)	Fully Extended (LC@2600mm)	Unit Weight (kg)
Length	1775mm	2225mm	2675mm
Lifting Beam	3000kg	2000kg	1000kg	70
Spreader Beam	5000kg	5000kg	5000kg	70

NOTE: Spreader beam working load limit has been calculated on a 60° chain angle setup.
