CEMH-2T H-Frame Spreader Beam

Add to Favourites

Quick Overview

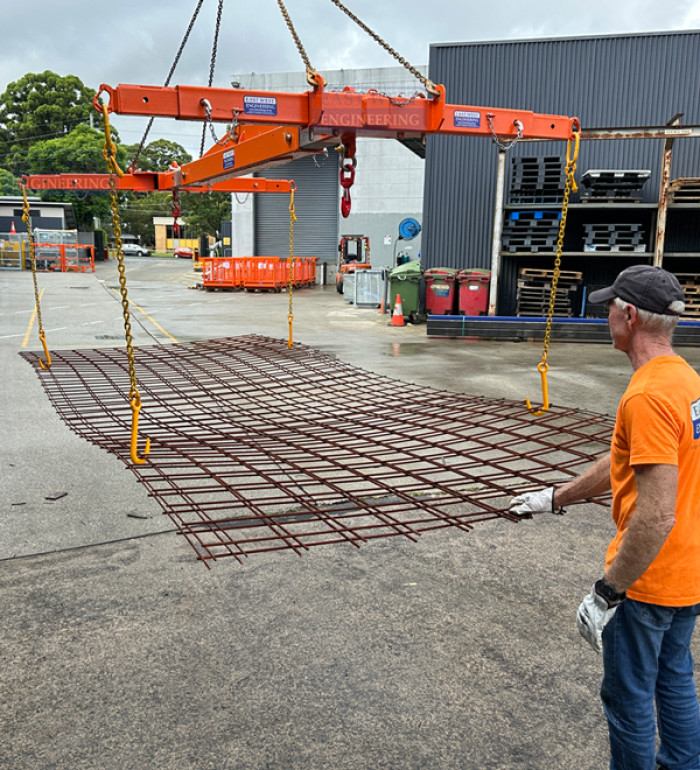

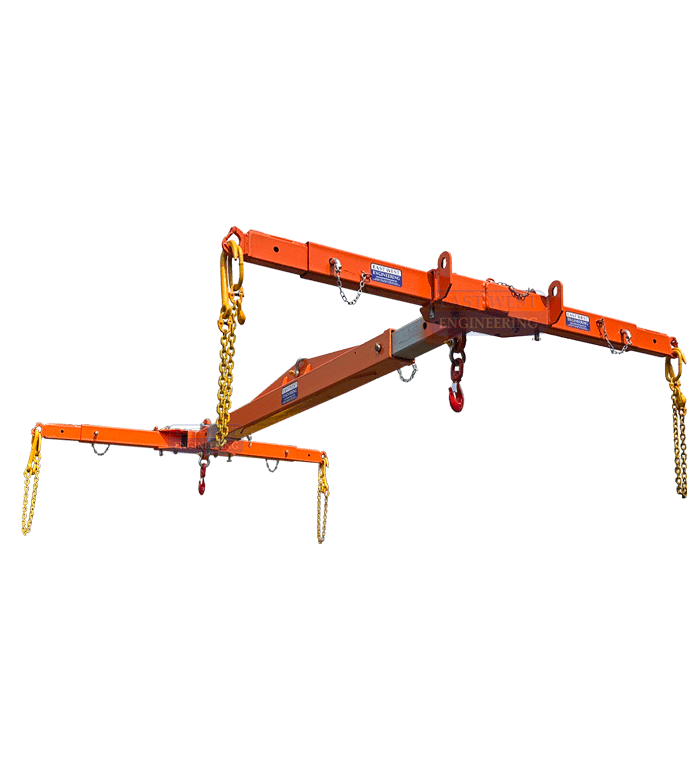

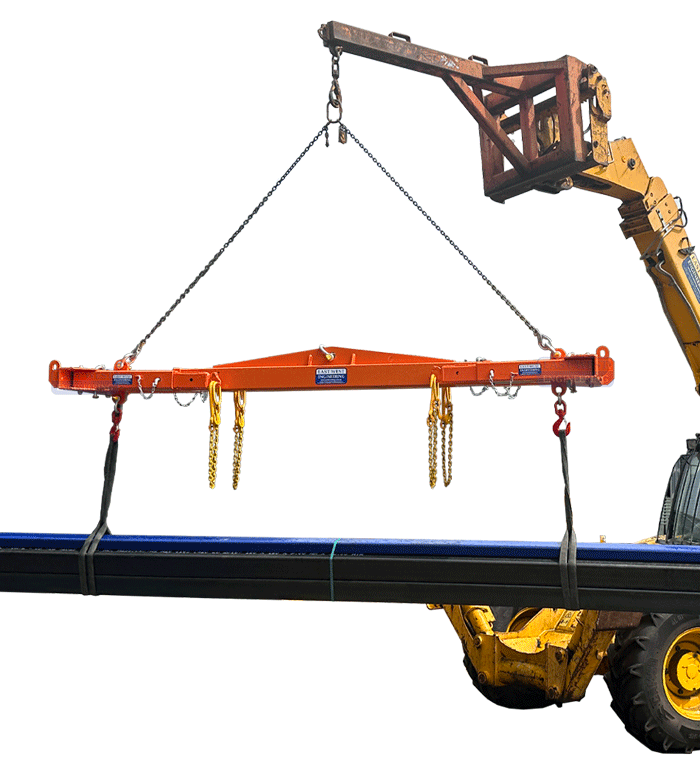

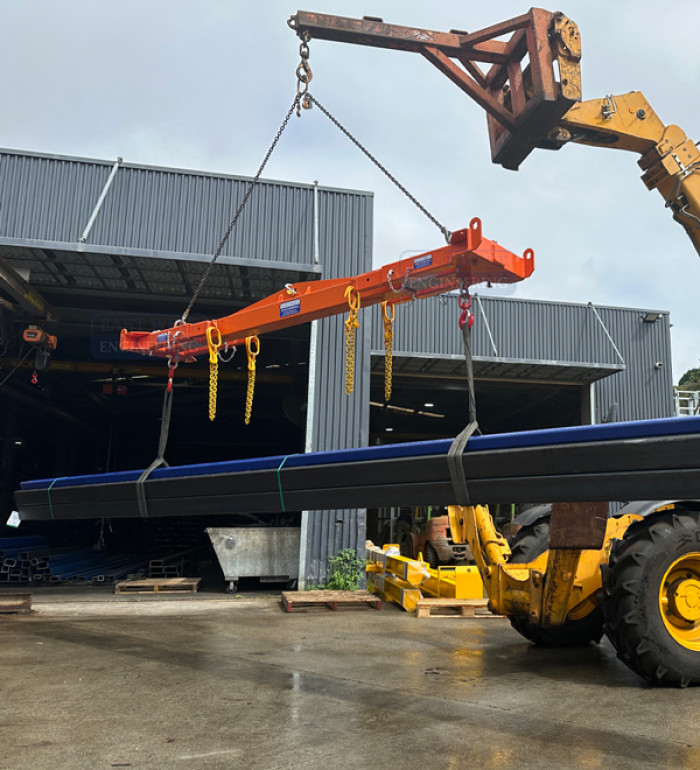

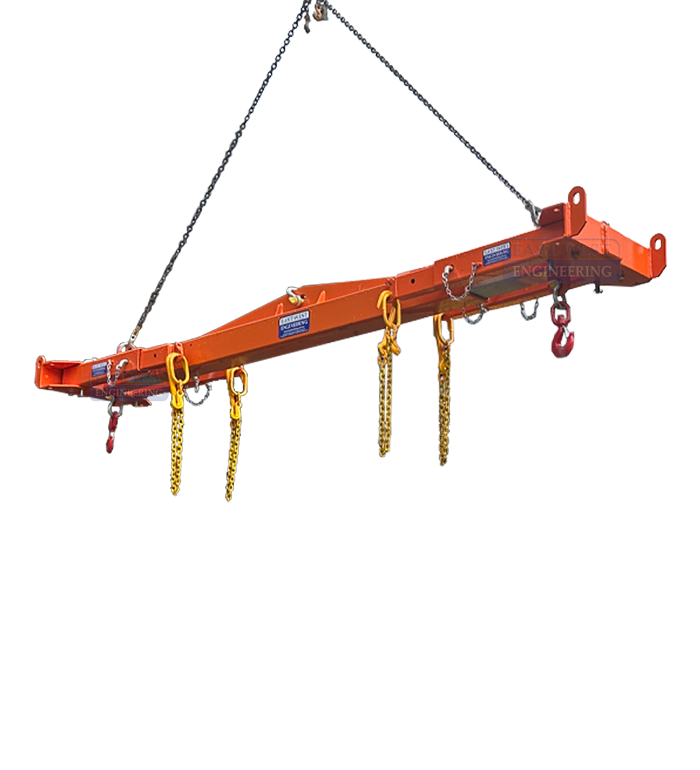

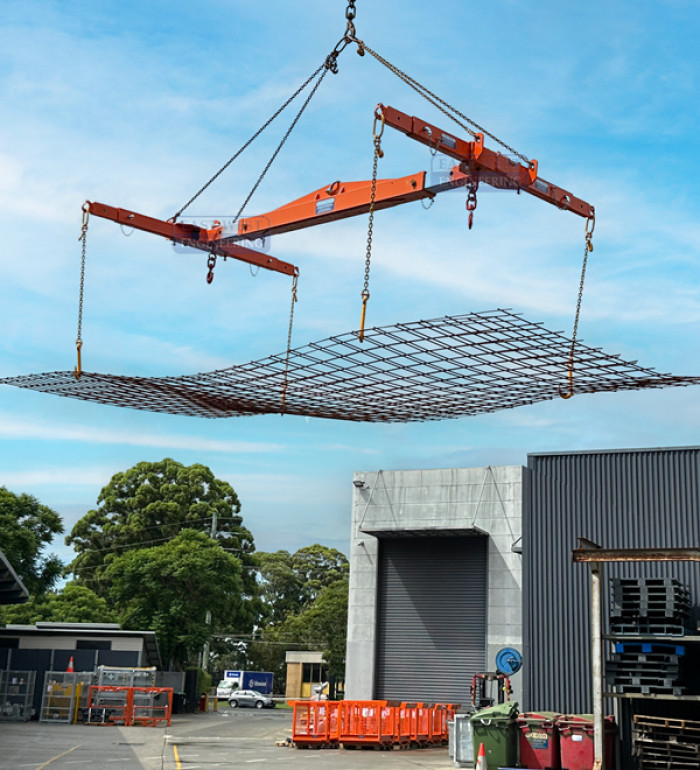

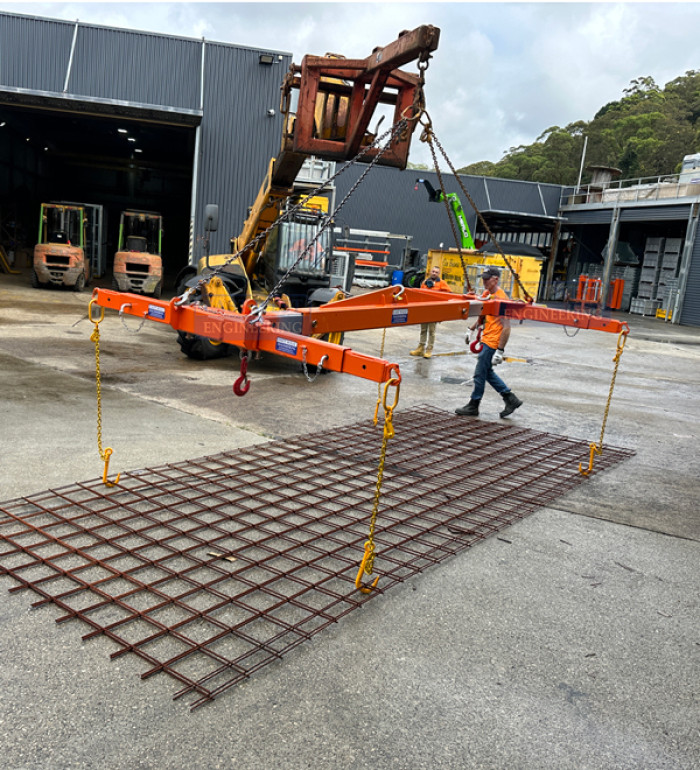

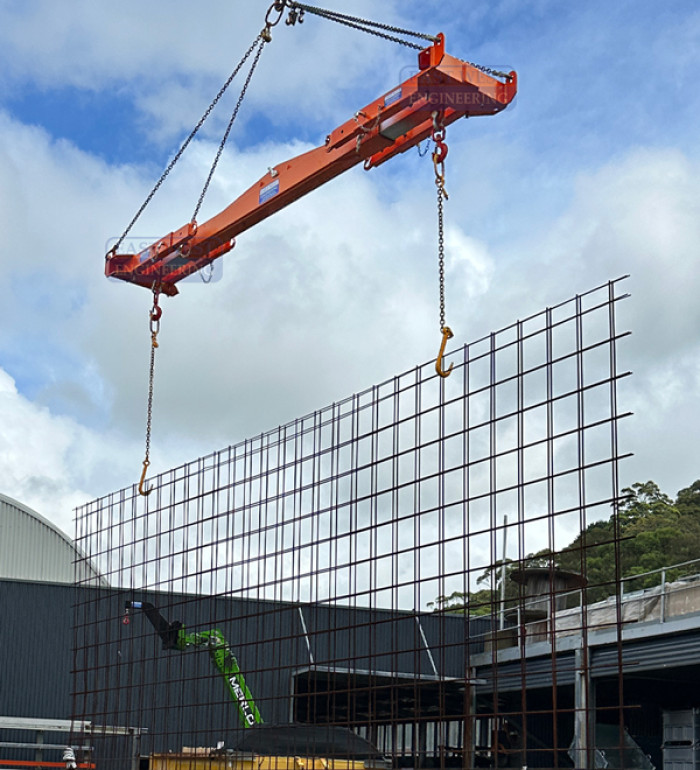

The CEMH-2T H-Frame Spreader Beam is designed for safe lifting of long, heavy loads by crane. With unique pivoting support arms, this spreader beam easily coverts into an H-Frame structure to suit wide loads such as reo mesh, bar and prefab structures. The H-shaped design provides greater stability and load distribution, minimising sway and risk of load shifting during lifting operations.

FEATURES:
• Suitable for single, 2 or 4 point lift depending on application
• Load connection points on main beam are adjustable to 3 positions
• H-Frame arms adjustable to 2 positions
• 1m chain & mesh hooks supplied
• Chain shortener allows adjustment of load depth
• H-shaped design provides greater stability when lifting heavy or oversized loads
• H-Frame arms fold into main beam for ease of transport and storage
• Ideal for lifting reo mesh, bar, machinery, industrial parts, construction materials such as steel beams and prefabricated structures etc
• Also available in model with fork pocket (CFMH-2T) for transporting unit around site by forklift
• Enamel paint finish

EAST WEST ENGINEERING ARE THE DESIGNER OF THIS PRODUCT AND HAVE PROOF OF CONFORMANCE TO AUSTRALIAN STANDARDS AND CERTIFICATION. BEWARE OF COPY PRODUCTS

Details

Rated Capacity (RC) - 60° chain angle				Unit Weight (kg)
When used as	Fully Retracted (LC@2380mm)	Middle Position (LC@3140mm)	Fully Extended (LC@3900mm)	Unit Weight (kg)
Length	2500mm	3260mm	4020mm
Lifting Beam (Single point)	6000kg	4500kg	2400kg	400
Spreader Beam (2 point)	10,000kg	10,000kg	10,000kg
H-Frame (Position 1 & 2))	2000kg	2000kg	2000kg

NOTE: Working load limit has been calculated on a 60° chain angle setup.
