CEL2439 Spreader Beam (9T)

Add to Favourites

Quick Overview

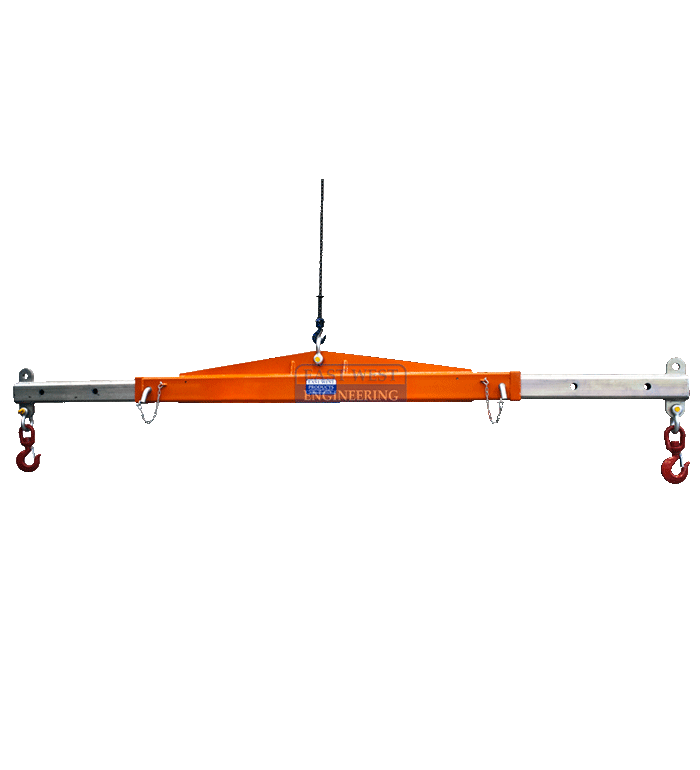

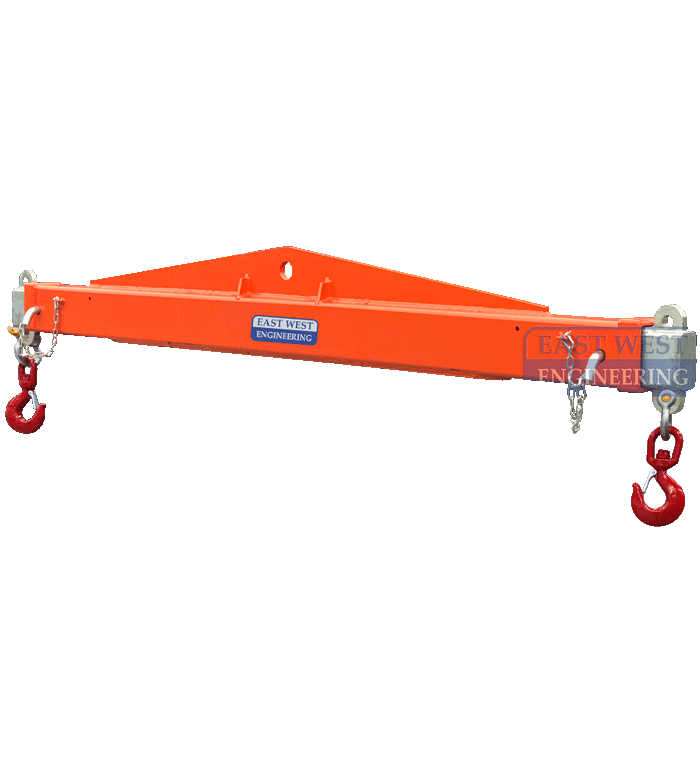

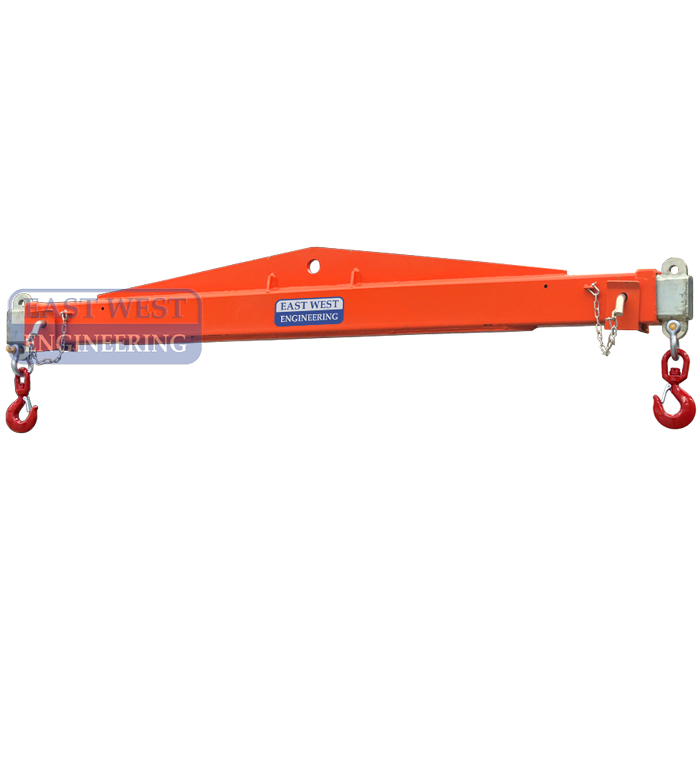

The CEL2439 Crane Spreader Beam is designed to lift long loads via the centre single hook point as a ‘Lifting Beam’, or end lifted using a 2 leg chain sling as a ‘Spreader Beam’ with a truck mounted or overhead crane.

FEATURES:
• Multi-tasking spreader beam
• Used as a 'Lifting Beam' by using the centre hook point
• Used as a 'Spreader Beam' when using the end hooks with a 2 leg chain sling
• Load connection points are adjustable to 3 positions
• Safety pins used to securely lock extendable arm in position
• Fitted with 2 safety swivel hooks
• Certified to the relevant Australian Standards
• Zinc finish on extendable arms, enamel paint finish on main body

EAST WEST ENGINEERING ARE THE DESIGNER OF THIS PRODUCT AND HAVE PROOF OF CONFORMANCE TO AUSTRALIAN STANDARDS AND CERTIFICATION. BEWARE OF COPY PRODUCTS

Details

Rated Capacity (RC) - 60° chain angle				Unit Weight (kg)
when used as	Fully Retracted (LC@2405mm)	Middle Position (LC@3165mm)	Fully Extended (LC@3925mm)
Length	2500mm	3260mm	4020mm
Lifting Beam	4500kg	2500kg	1300kg	140
Spreader Beam	9000kg	7200kg	5600kg	140

NOTE: Spreader beam working load limit has been calculated on a 60° chain angle setup.
