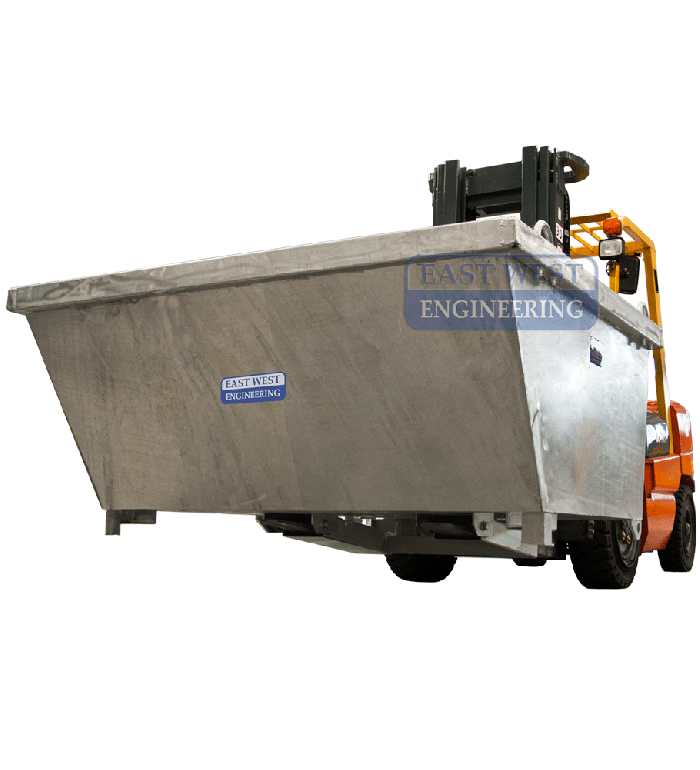

WFL Lever Release Tipping Bin

Add to Favourites

Quick Overview

The WFL Lever Release Tipping Bin is as an economical solution designed for heavy industrial and building waste collection and disposal.

FEATURES:
• 1500kg capacity is ideal for heavy waste including metal, timber, concrete, bricks and green waste
• Low profile design allows use in confined spaces

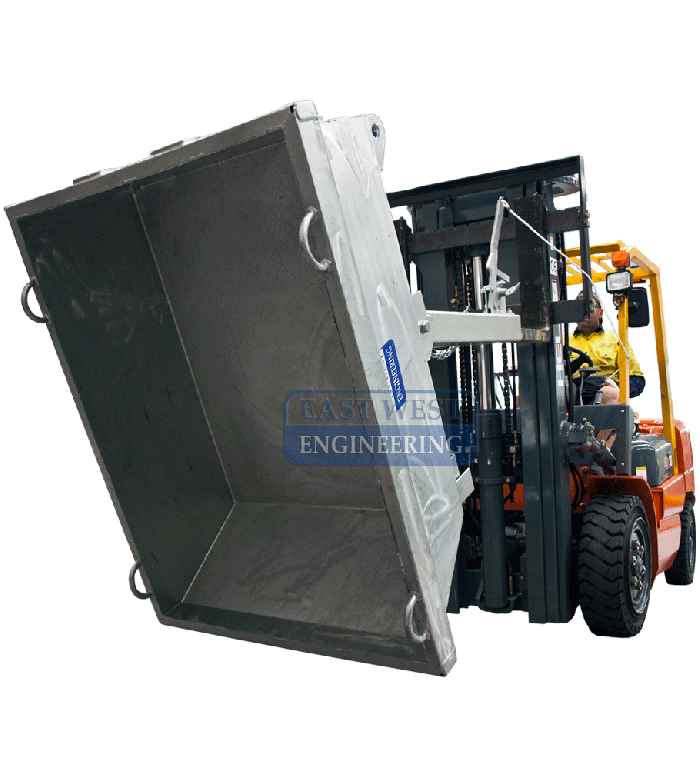

• Pull cord tipping mechanism activated safely from driver’s seat
• Custom built shock absorber prevents impact forces being transmitted to the forklift during emptying
• Manufactured from 3mm plate and feature reinforced edging and a catch handle
• Fitted standard with a removable drain plug
• Crane and upending lugs fitted as standard

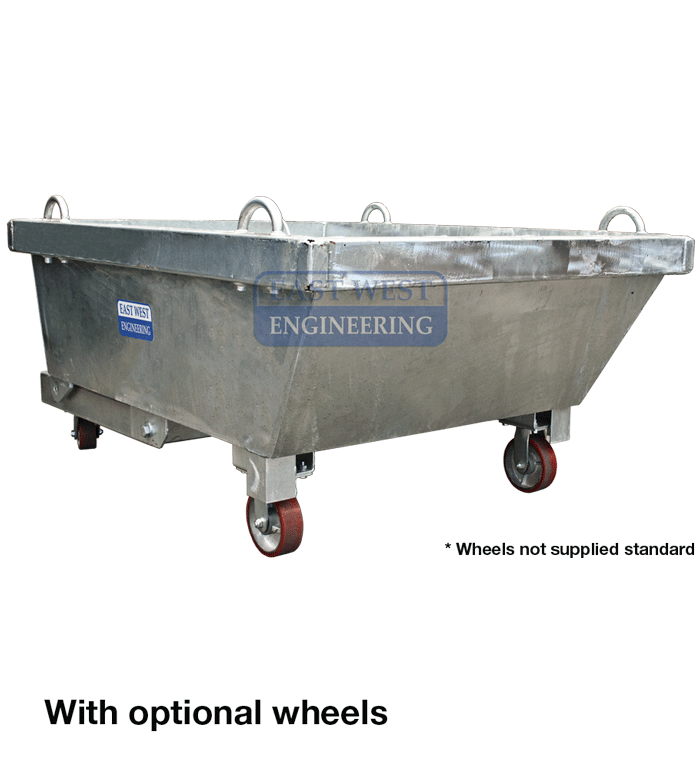

• Optional wheel kit and drain ball valve available for supply on request
• Galvanised finish

Due to transport safety requirements wheels are no longer pre-fitted. If ordered, optional wheel kits are supplied for fitment onsite, not fitted.

Details

Model	Working Load Limit (kg)	Capacity (cu.m)	Bin Length (mm)	Bin Width (mm)	Bin Height (mm)	Pocket Size (mm)	Pocket Centres (mm)	Unit Weight (kg)	Optional Wheel Kit Part #
WFL5X74	1500	0.35	1510	740	630	185 x 70	310	140	SC60011-005
WFL5X11	1500	0.59	1510	1150	630	185 x 70	695	165	SC60011-005
WFL9X74	1500	0.68	1715	740	980	185 x 70	310	180	SC60011-005
WFL9X11	1500	1.1	1715	1150	980	185 x 70	695	215	SC60011-005
WFL9X20	1500	2.1	1715	1986	980	185 x 70	695	275	SC60006-004
