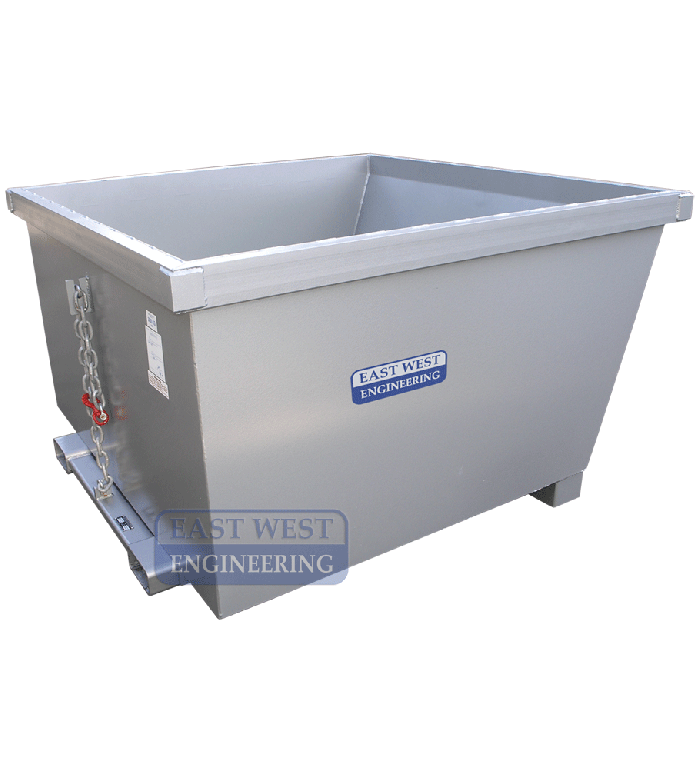

JSD Bulk Self Dumping Bin

Add to Favourites

Quick Overview

The JSD Bulk Self Dumping Bin is a bulk capacity bin designed for self dumping of heavy waste.

FEATURES:

Suitable for use with heavy waste up to 3000kg

Heavy duty construction made from 5mm plate and channel reinforcement

Oversized fork pockets to suit larger forklifts

Self dumping mechanism allows the operator to safely activate tipping cycle from driver’s seat

Fork pockets and safety chain for quick connection to a forklift

Optional crane lugs

Enamel paint finish

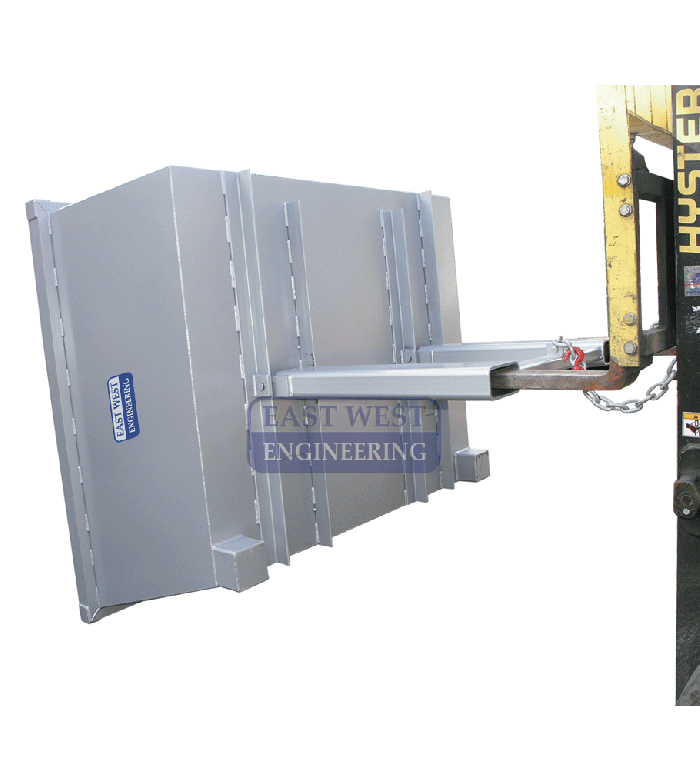

To empty, the operator catches the bin on the edge of the bulk container and reverses the forklift. When the tines clear the pivot point, raising the bin will permit a complete discharge of contents.

Details

Model	Working Load Limit (kg)	Capacity (cu.m)	O/A Length (mm)	O/A Width (mm)	O/A Height (mm)	Fork Pocket Size (mm)	Fork Pocket Centres (mm)	Unit Weight (kg)
JSD18	3000	3.2	1900	1910	1125	180 x 80	950	850
JSD24	3000	4.3	1900	2510	1125	180 x 80	950	950
JSD30	3000	5.4	1900	3110	1125	180 x 80	950	1050

* Larger sizes are available on request.
