CSD Self Dumping Bin

Add to Favourites

Quick Overview

The CSD Self Dumping Bin is an economical solution for most waste handling applications designed to allow emptying by forklift or overhead crane. Being a nesting bin, it uses minimum space during transport and storage.

FEATURES:

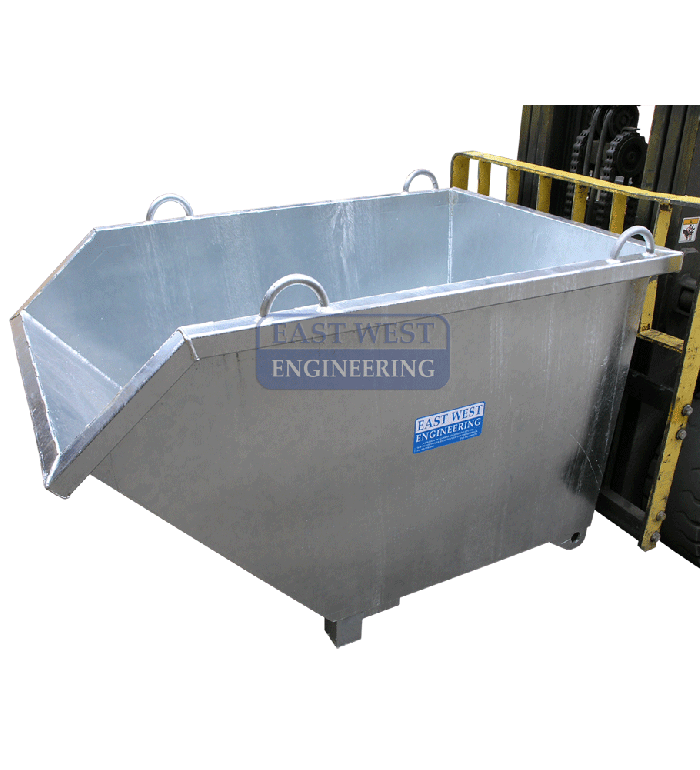

• Suitable for use with forklift or overhead crane
• Supplied standard with 4 crane lugs and upending lugs
• Self dumping mechanism allows the operator to safely activate tipping cycle from driver’s seat

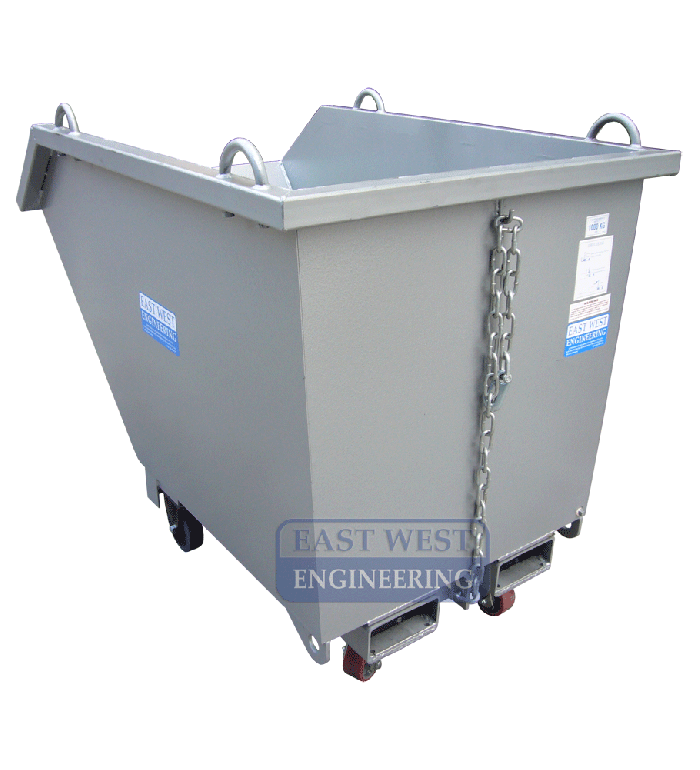

• Fork pockets and safety chain for quick connection to a forklift

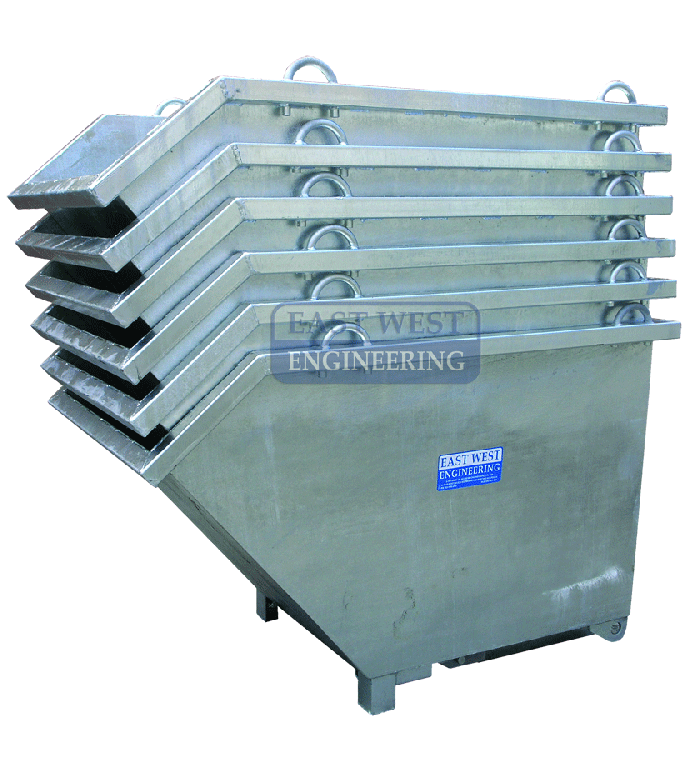

• Nesting bin design to save space when not in use
• Fitted with drain plug and wheel brackets (wheels not supplied unless ordered)
• Optional wheel kit available for supply on request
• Galvanised finish

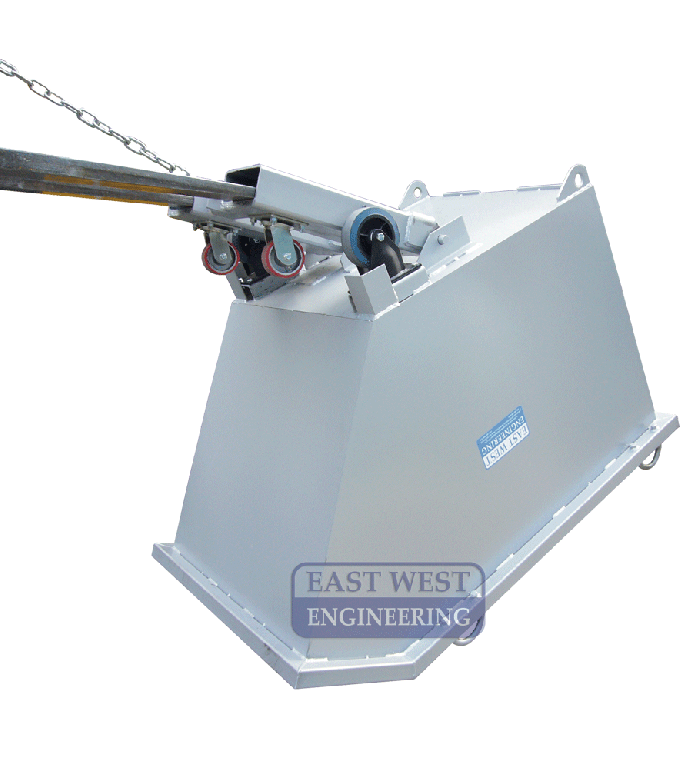

To empty, the operator catches the bin on the edge of the bulk container and reverses the forklift. When the tines clear the pivot point, raising the bin will permit a complete discharge of contents.

Due to transport safety requirements wheels are no longer pre-fitted. If ordered, optional wheel kits are supplied for fitment onsite, not fitted.

Details

Model	Working Load Limit (kg)	Capacity (cu.m)	Inside Width (mm)	Overall Dimensions (W x L x H mm)	Pocket Size (mm)	Pocket Centres (mm)	Unit Weight (kg)
CSD9	1500	0.95	900	1010 x 1570 x 1070	185 x 75	340	180
CSD12	1500	1.25	1200	1310 x 1570 x 1070	185 x 75	630	205

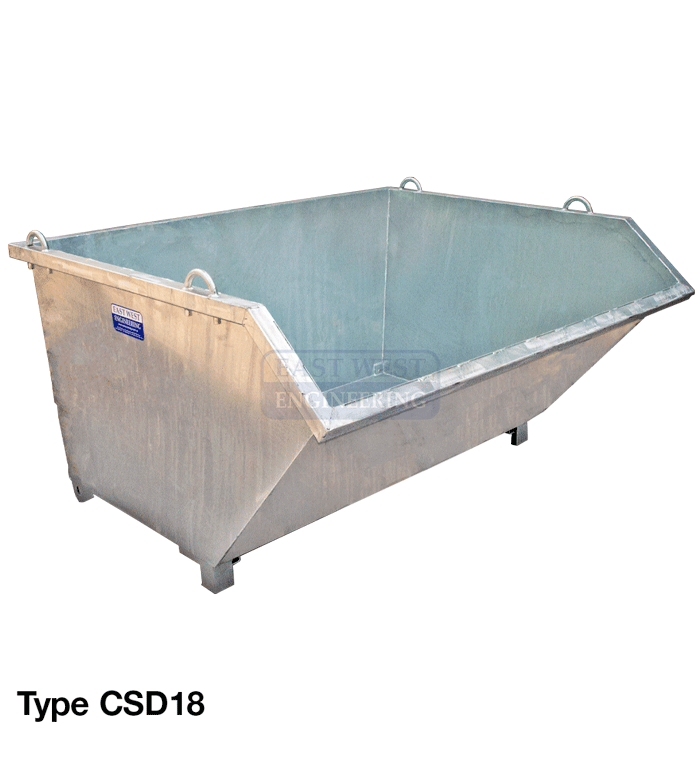

CSD18	1500	1.85	1800	1910 x 1570 x 1070	185 x 75	630	245

- Add 18kg for units fitted with optional wheels.
