BWB Bulk Waste Crane Bin

Add to Favourites

Quick Overview

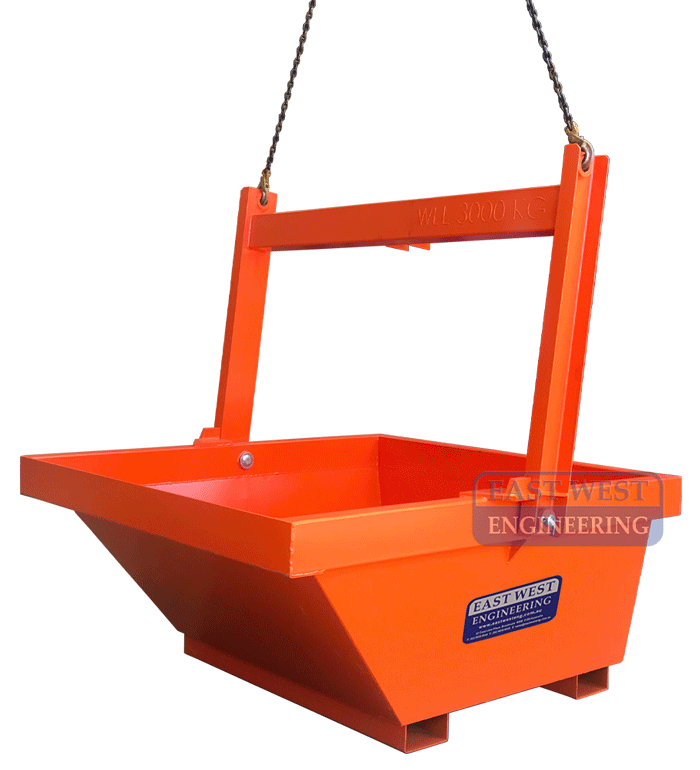

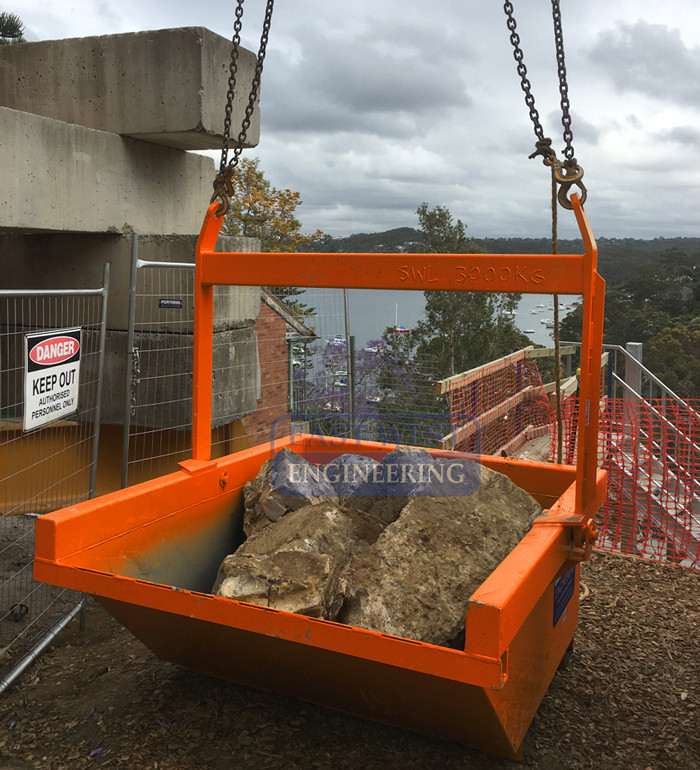

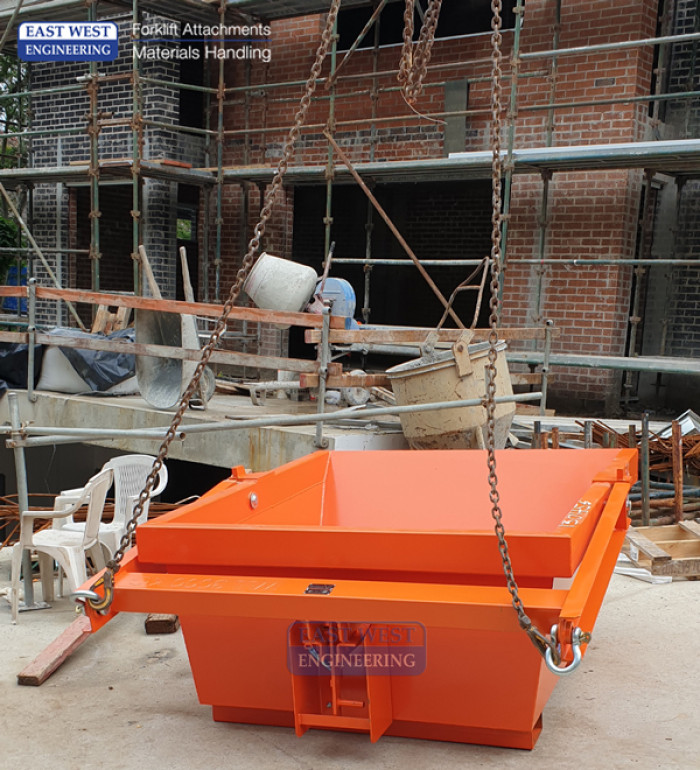

The BWB Bulk Waste Crane Bin is a heavy load crane bin, designed to allow transport and dumping of waste on building and mining sites where large capacities are required.

FEATURES:
• Heavy duty construction suits bulk waste such as sand, gravel, excavation waste and scrap metal

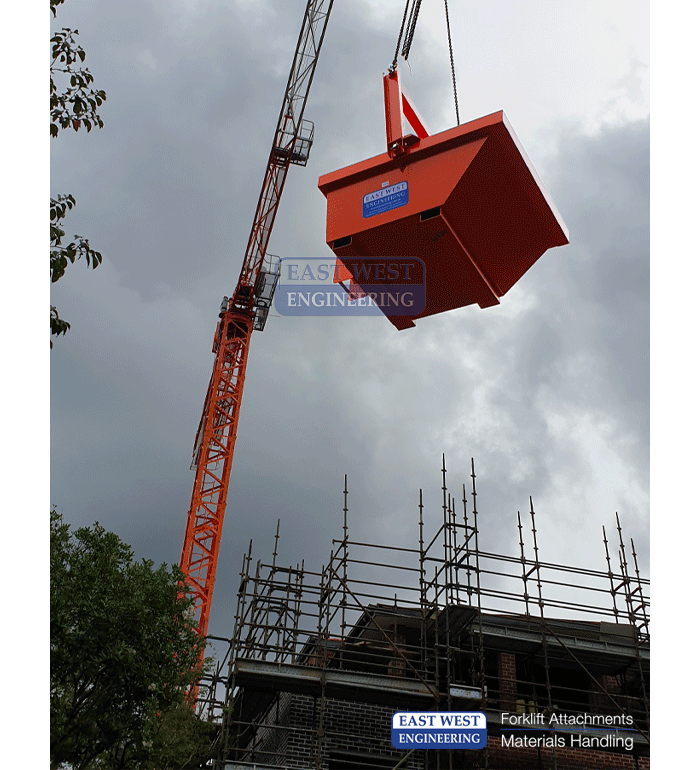

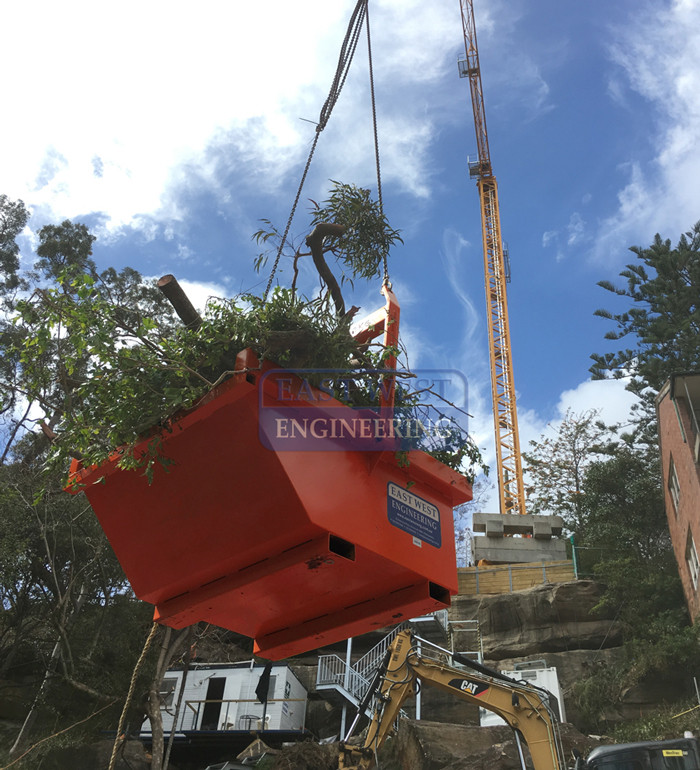

• For use with overhead crane
• Available in 4 sizes to suit small to large scale operations

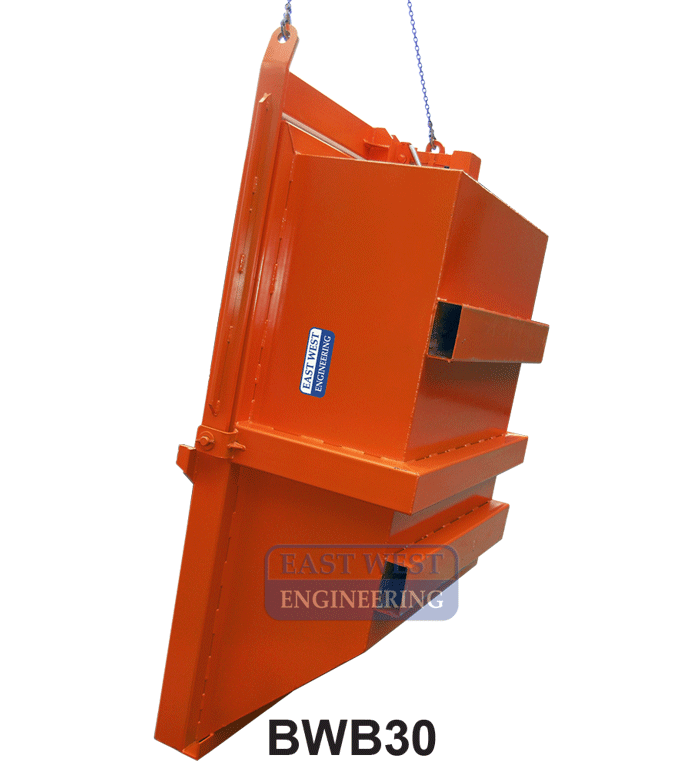

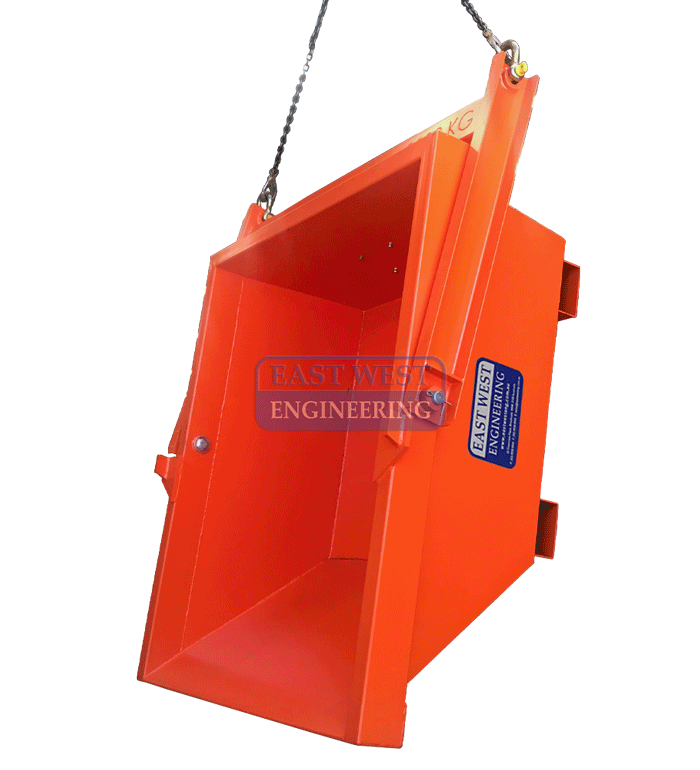

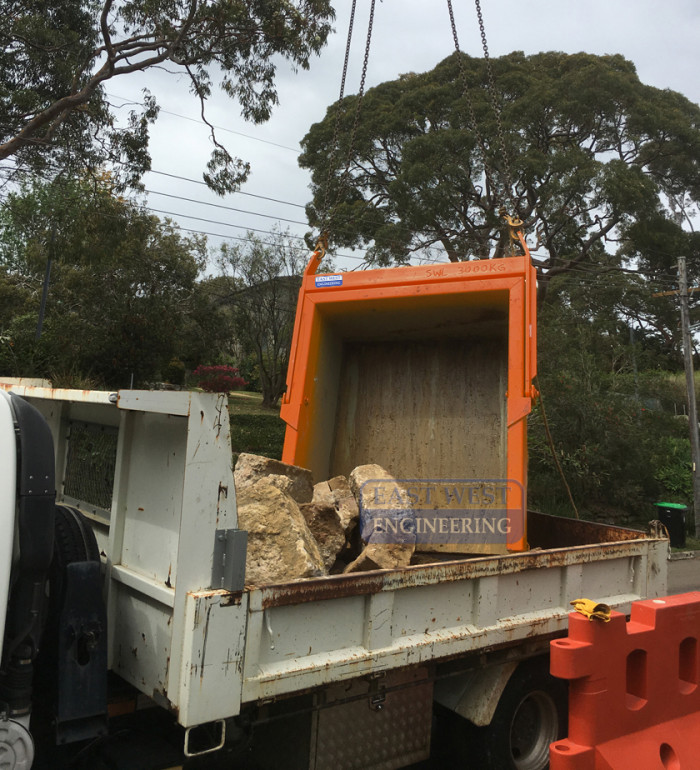

• Tip action operated by lowering and automatically locking the pivoting yoke at rear of bin
• Fitted with fork pockets to allow onsite transport by forklift

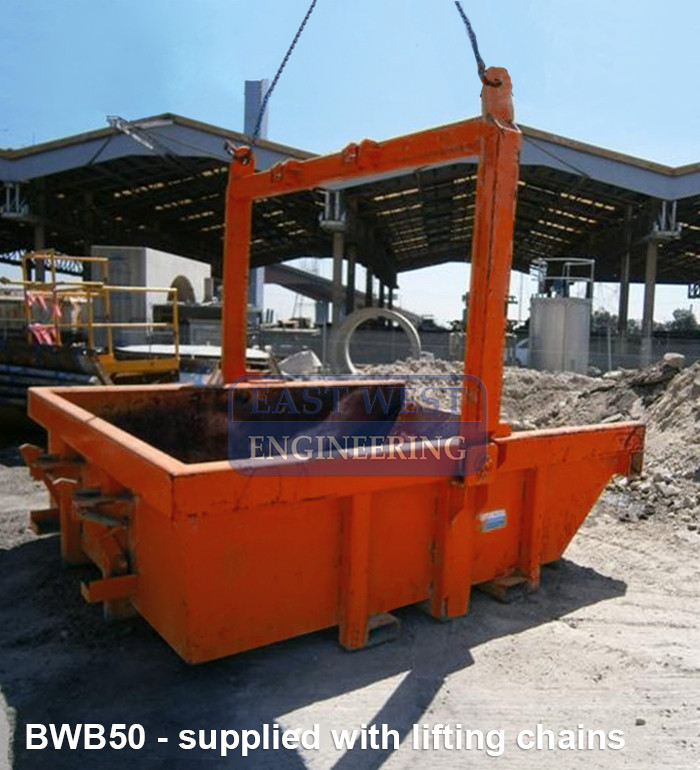

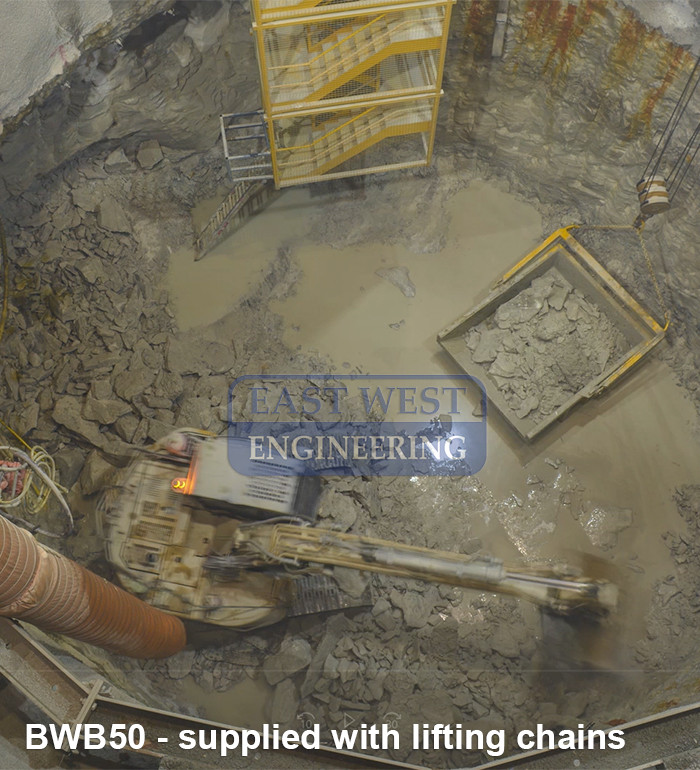

• Type BWB50 supplied with lifting chains
• Enamel paint finish

Details

Model	Working Load Limit (kg)	Capacity (cu.m)	Bin Width (mm)	Bin Length (mm)	Bin Height (mm)	Overall Dimensions** (mm)	Fork Pocket Size (mm)	Fork Pocket Centres (mm)	Unit Weight (kg)
BWB10	1500	0.8	1100	1855	850	1235 x 2195 x 915	185 x 85	700	245
BWB20	3000	1.5	1705	1890	855	1890 x 2225 x 920	185 x 85	900	510
BWB30	5000	3.0	1700	2510	905	1880 x 2850 x 975	185 x 85	950	825
BWB50	14,000	5.0	2620	3130	960	2940 x 3565 x 1055	180 x 80	950	2560

* Bin dimensions exclude pivoting yoke and locking mechanism. Further details available on request

** O/All dimensions with pivoting yoke in lock position
