SKH200 Bulk Bag Hopper

Previous

HBF Hopper Bin - Clamshell

SFH100 Bulk Bag Hopper - Flange

  • SFH100 Bulk Bag Hopper - Flange SFH100 Bulk Bag Hopper - Flange

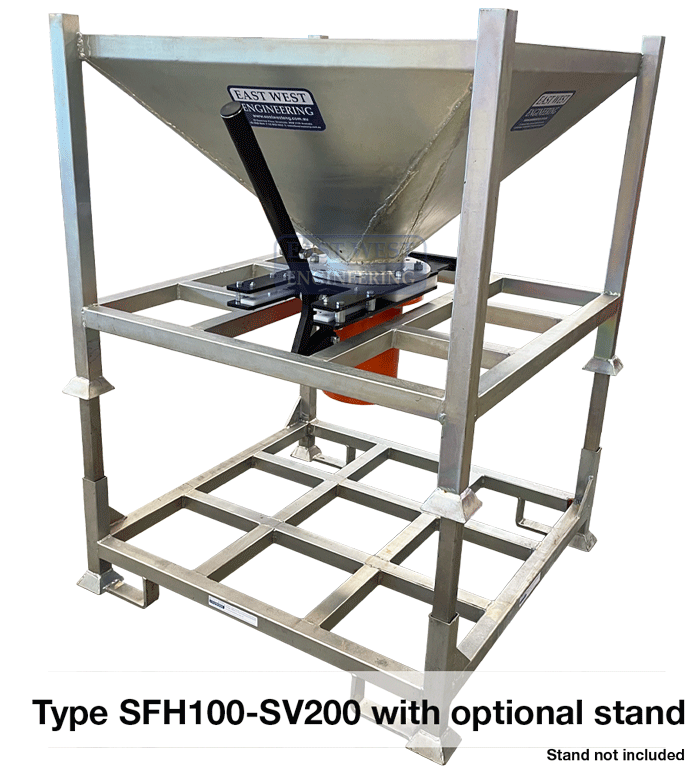

  • SFH100 Bulk Bag Hopper customised with a slide valve 200mm dia output and extension frame SFH100 Bulk Bag Hopper customised with a slide valve 200mm dia output and extension frame

Quick Overview

The SFH100 Bulk Bag Hopper is designed for the storage and dispensing of bulk materials. This flanged unit is designed to allow adaption to suit various bulk material handling requirements.

FEATURES:
• Ideal for handling granular products such as aggregate, sand, gravel or grain
• Available in models (SV) with slide valve fitted for controlling material flow and easy operation
• Available in model with vacuum head (SFH100-SV200V)
• Stacks 3 high when empty and 2 high when fully loaded
• Optional SKH-BP Bag Piercing Knife efficiently discharges materials from the bulk bag
• Zinc finish

Details

 Model


Working
Load Limit
(kg)
Capacity
(cu.m)

Slide
Valve
Fitted
Hopper
Opening
(NB)
Dimensions
L x W x D
 (mm)
Unit
Weight
 (kg)
 SFH100 1000 0.20 No 200 1180 x 1180 x 943 80
 SFH100-SV100 1000 0.20 Yes 100 1180 x 1180 x 943 127
 SFH100-SV200 1000 0.20 Yes 200 1180 x 1180 x 943 127
 SFH100-SV200V 1000 0.20 Yes Vacuum Head 1180 x 1180 x 943 130
