QSS25 Skid Steer Carriage

Add to Favourites

Quick Overview

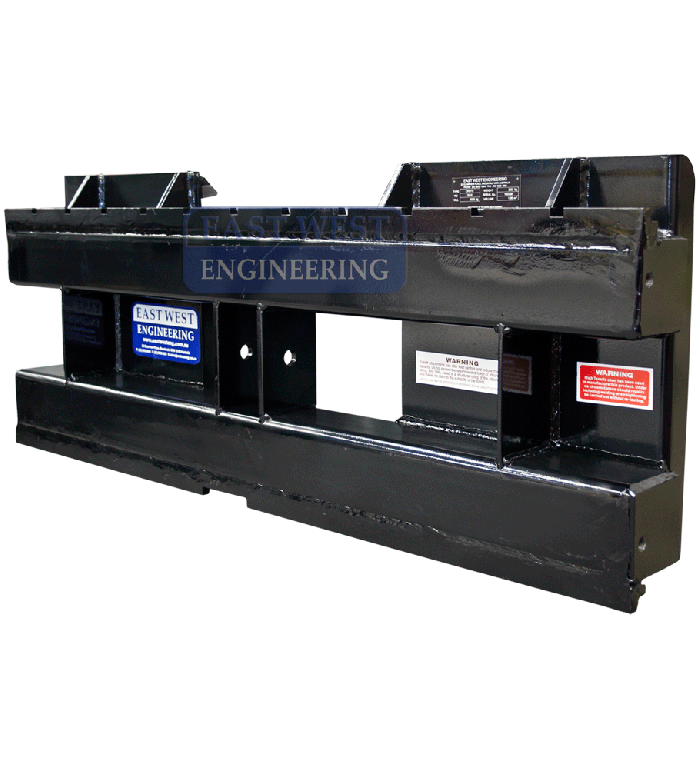

The QSS25 Skid Steer Carriage is a heavy duty Class 2 fork carriage designed to suit skid steer and track loaders.

FEATURES:
• Universal skid steer hitch suits most models incl. CAT, Case, Bobcat, Gehl, Mustang, New Holland
• Designed to attach quickly to your skid steer
• Allows easy fitment of optional Q Series accessories
• Enamel paint finish

OPTIONAL Q SERIES ACCESSORIES:
• FA25-107E Fork Arms (Class 2, WLL 2500kg per pair, 125 x 35 x 1070mm long)

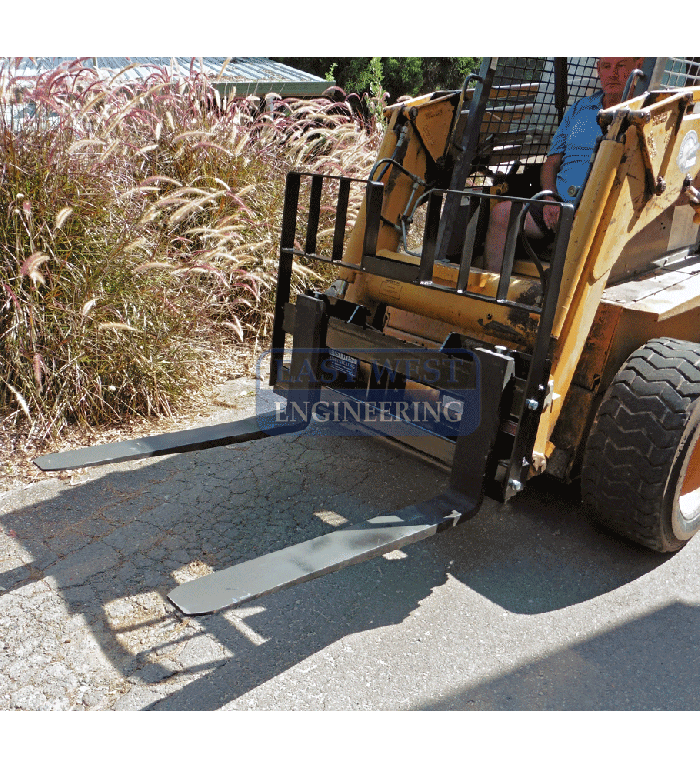

• QSS25LG Bolt-on Load Guard for additional operator safety
• QEH25LH 420mm Lifting Jib with hook & shackle (WLL 1500kg)
• QEH25LHX 1000mm Lifting Jib with hook & shackle (WLL 800kg)
• QEH25LHX2 1750mm Lifting Jib with hook & shackle (WLL 400kg)

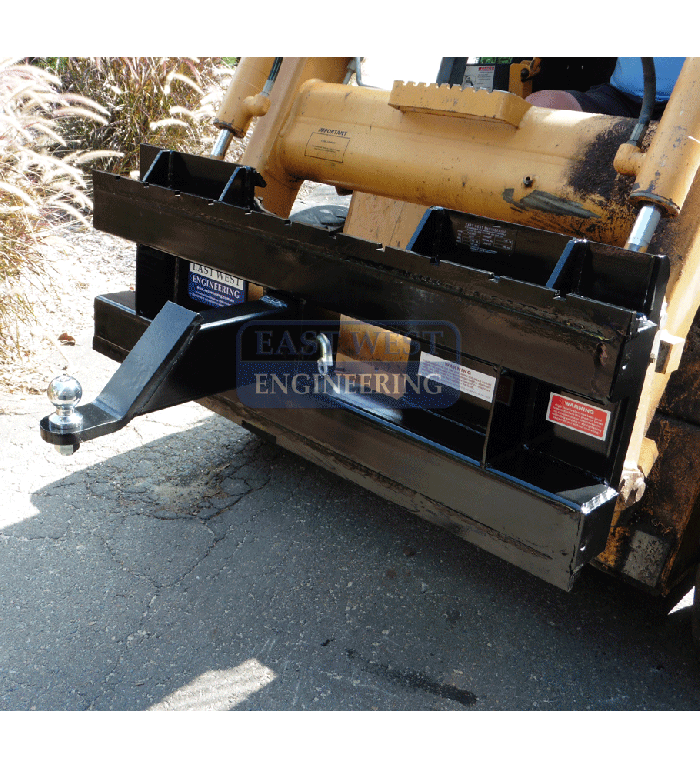

• QEH25TH Towing Hitch with towball (500kg tow capacity)
• QPH35 Pintle Hook Tow Hitch (500/2500kg tow capacity)
• QRP35 Drop Pin Tow Hitch (500/2500kg tow capacity)

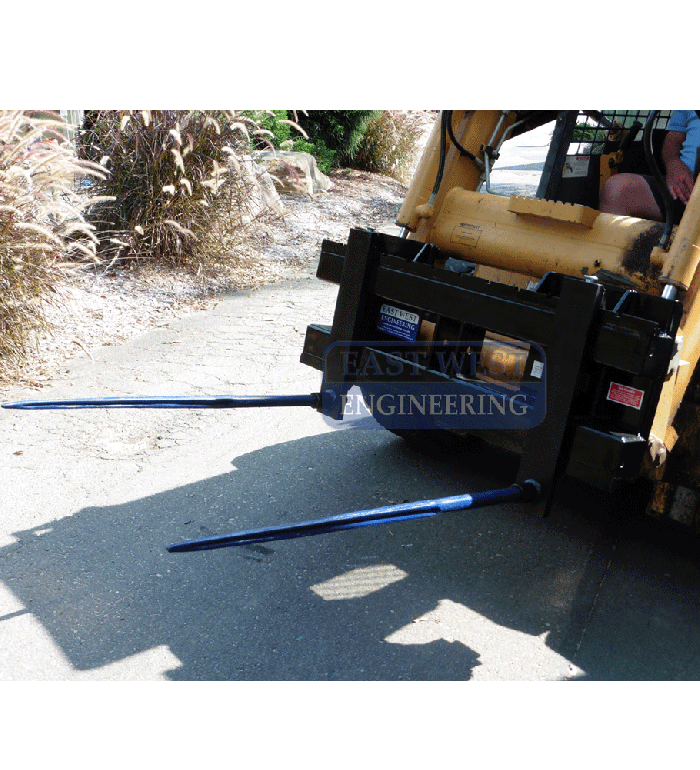

• QHB2 Bale Spear Attachment (2 spears)
• QHBV2 Vertical Bale Spear Attachment (2 spears)
• QHB4 Bale Spear Attachment (4 spears)
• FLF25-90 Bale Spear & Shank (WLL 250kg, Ø36 x 970mm clear length)
• FLF4-90 Bale Spear & Shank (WLL 400kg, Ø45 x 900mm clear length)
• FLF4-110 Bale Spear & Shank (WLL 400kg, Ø45 x 1100mm clear length)

Some models of skid steer do not fit standard skid steer attachments. Check with the manufacturer for compatibility. Actual lifting capacities are determined by the working capacity of the skid steer.

Details

	Working Load Limit (WLL)	2500kg
	Load Centre	500mm
	Carriage Width	1200mm
	Unit Weight	74kg
