QSC25-22 Wide Carriage - 2200mm

Add to Favourites

Quick Overview

The QSC25-22 Wide Carriage is a 2200mm wide Class 2 forklift carriage and is suitable for all machinery and agricultural applications where fork tines and other attachments are to be fitted.

FEATURES:
• Ideal for double pallet handling
• ISO/FEM Carriage Class 2 models
• Precision machined to suit Class 2 fork tines
• Available without hitch (blank) or in models to suit Forklift, Euro, 3PL, Skid steer, Burder or Challenge fitment
• Q-Fit carriage designed for easy fitment of optional accessories
• Made from high grade steel
• Fork arms sold separately

OPTIONAL Q SERIES ACCESSORIES:

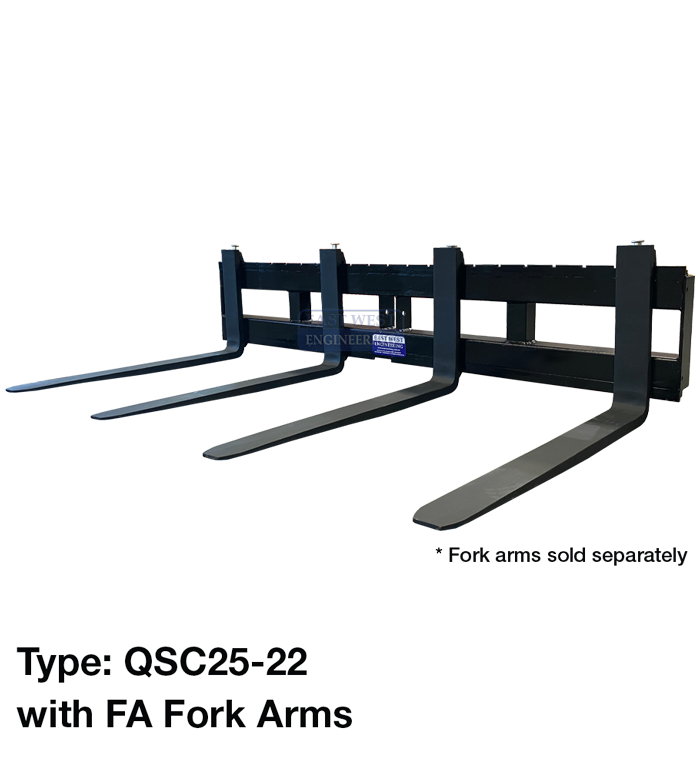

• FA25-107E Fork Arms (Class 2, WLL 2500kg per pair, 125 x 35 x 1070mm long)
• QEH25LH  420mm Lifting Jib with hook & shackle (WLL 1500kg)
• QEH25LHX 1000mm Lifting Jib with hook & shackle (WLL 800kg)
• QEH25LHX2 1750mm Lifting Jib with hook & shackle (WLL 400kg)
• QEH25TH Tow Hitch with towball (500kg tow capacity)
• QPH35 Pintle Hook Tow Hitch (500kg tow capacity)
• QRP35 Drop Pin Tow Hitch  (500kg tow capacity)
• QHB2 Bale Spear Attachment (2 spears)
• QHBV2 Vertical Bale Spear Attachment (2 spears)
• QHB4 Bale Spear Attachment (4 spears)
• FLF25-90 Bale Spear & Shank (WLL 250kg, Ø36 x 970mm clear length)
• FLF4-90 Bale Spear & Shank (WLL 400kg, Ø45 x 900mm clear length)
• FLF4-110 Bale Spear & Shank (WLL 400kg, Ø45 x 1100mm clear length)

Fork arms not included

Details

Model	To suit	ISO/FEM Class	Working Load Limit (kg)	Load Centre (mm)	Width (mm)	Unit Weight (kg)

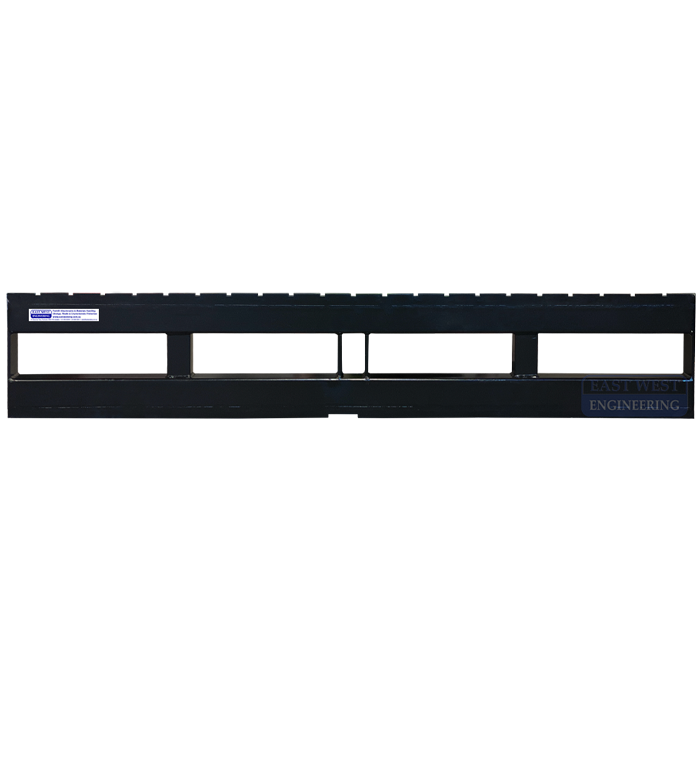

QSC25-22 *	Blank	2	2500	500	2200	100

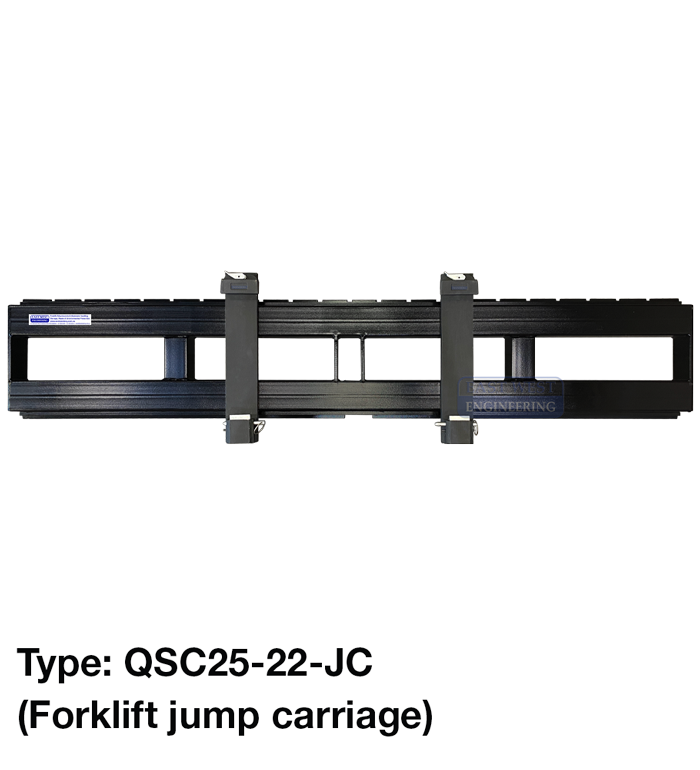

QSC25-22-JC **	Forklift	2	2500	500	2200	122

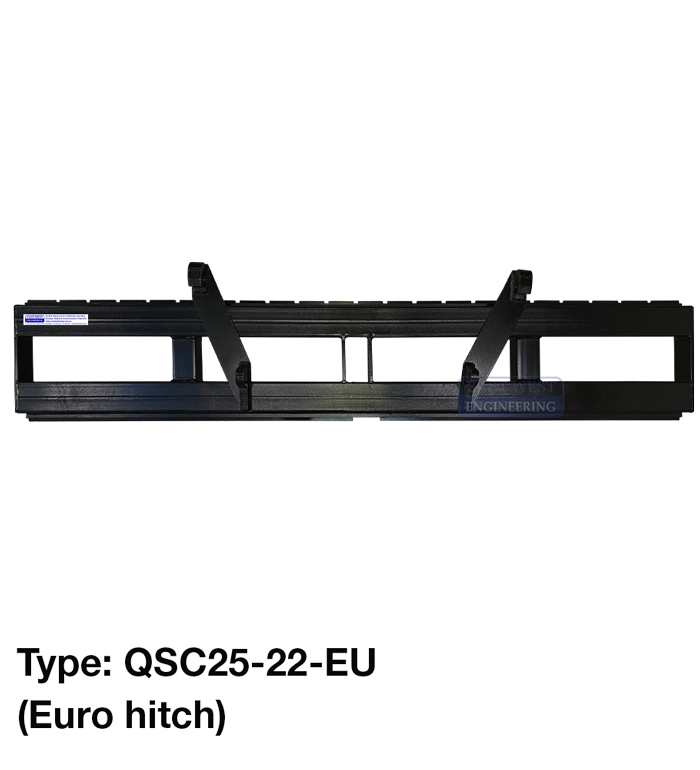

QSC25-22-EU	Euro Hitch	2	2500	500	2200	112

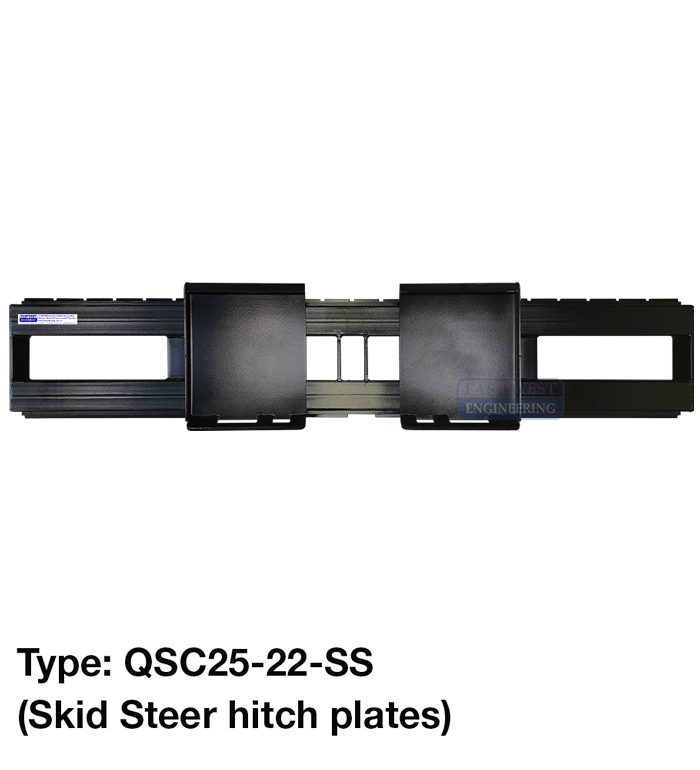

QSC25-22-SS	Skid Steer	2	2500	500	2200	119

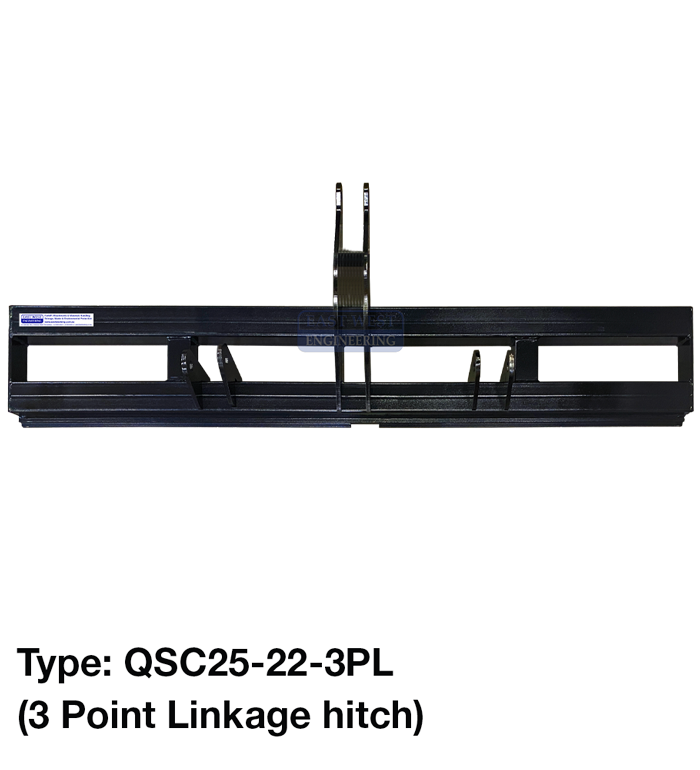

QSC25-22-3PL	3 Point Linkage	2	2500	500	2200	128

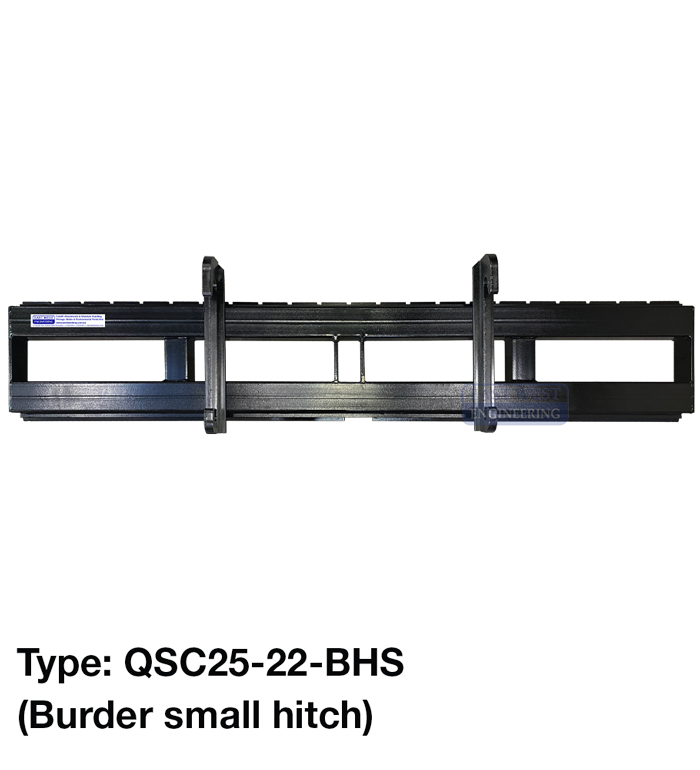

QSC25-22-BHS	Burder Small Hitch	2	2500	500	2200	112
QSC25-22-BHL	Burder Large Hitch	2	2500	500	2200	120

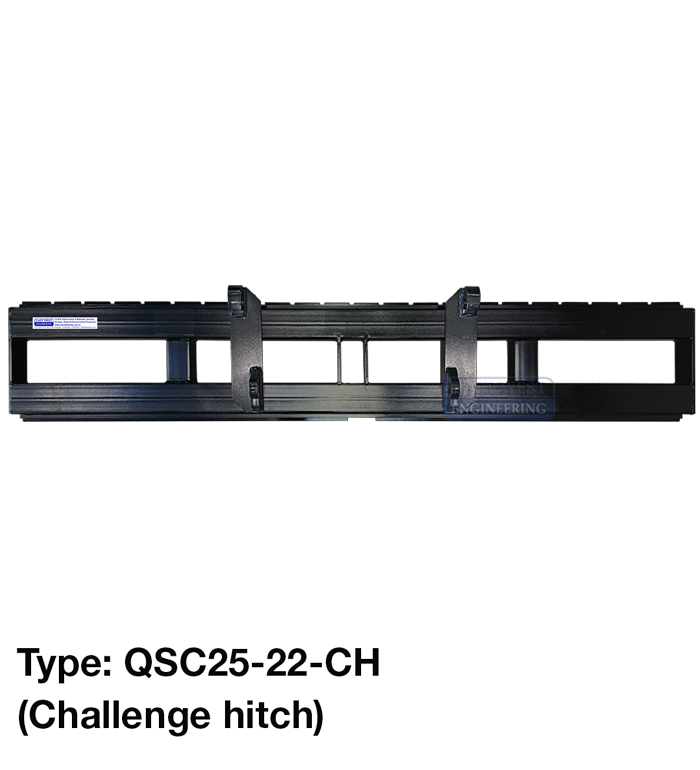

QSC25-22-CH	Challenge Hitch	2	2500	500	2200	112

* No hitch plates included. Customer to fit their specific hitch or brackets to suit machinery

** Jump Carriage fits to existing forklift carriage to provide wider carriage for short term use
