QSC Universal Carriage - 1200mm

Add to Favourites

Quick Overview

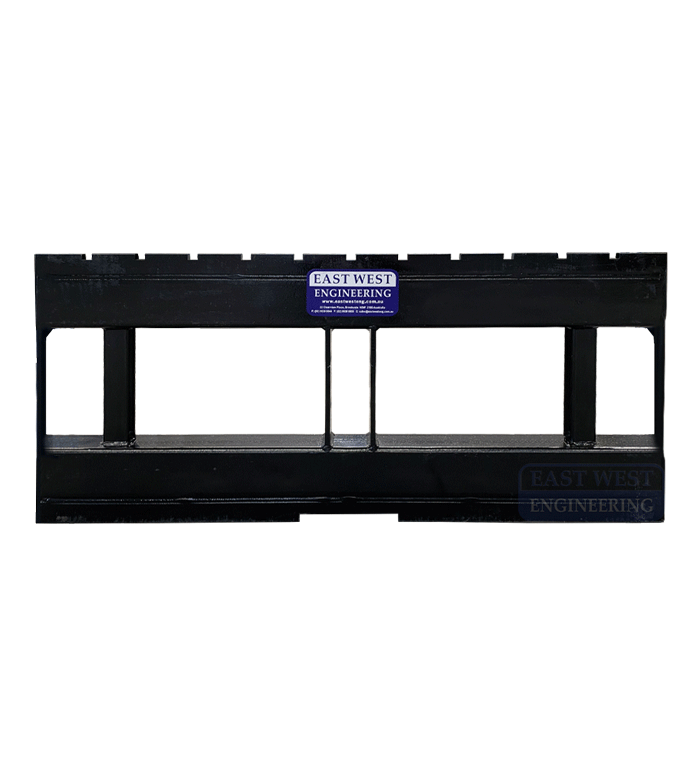

The QSC Carriage is a standard Class 2 or Class 3 (blank) forklift carriage and is suitable for all machinery and agricultural applications where fork tines and other attachments are to be fitted.

FEATURES:
• Universal (blank) fork carriage allowing fitment of specific hitch or brackets to suit
• ISO/FEM Carriage Class 2 & 3 models
• Precision machined to suit Class 2 or Class 3 fork tines
• Range of weld-on hitches available for fitment on request
• Q-Fit carriage designed for easy fitment of optional accessories
• Made from high grade steel

OPTIONAL Q SERIES ACCESSORIES:
• FA25-107E Fork Arms (Class 2, WLL 2500kg per pair, 125 x 35 x 1070mm long)
• QEH25LG Bolt-on Load Guard for additional operator safety
• QEH25LH  420mm Lifting Jib with hook & shackle (WLL 1500kg)
• QEH25LHX 1000mm Lifting Jib with hook & shackle (WLL 800kg)
• QEH25LHX2 1750mm Lifting Jib with hook & shackle (WLL 400kg)
• QEH25TH Tow Hitch with towball (500kg tow capacity)
• QPH35 Pintle Hook Tow Hitch (500/2500kg tow capacity)
• QRP35 Drop Pin Tow Hitch  (500/2500kg tow capacity)
• QHB2 Bale Spear Attachment (2 spears)
• QHBV2 Vertical Bale Spear Attachment (2 spears)
• QHB4 Bale Spear Attachment (4 spears)
• FLF25-90 Bale Spear & Shank (WLL 250kg, Ø36 x 970mm clear length)
• FLF4-90 Bale Spear & Shank (WLL 400kg, Ø45 x 900mm clear length)
• FLF4-110 Bale Spear & Shank (WLL 400kg, Ø45 x 1100mm clear length)

Details

Model	Working Load Limit (kg)	Load Centre (mm)	ISO/FEM Class	Width (mm)	Weight / pair (kg)
QSC25	2500	500	2	1200	54
QSC45	4500	500	3	1200	68

* Non--stocked items, longer leadtime applies
