QMC12 Mini Hitch Carriage

Add to Favourites

Quick Overview

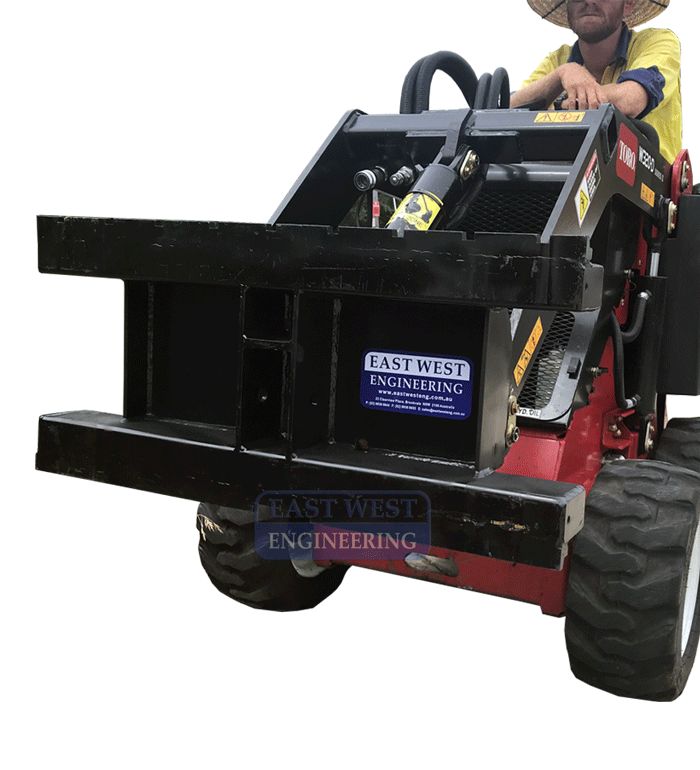

The QMC12 Mini Hitch Carriage is a Class 2 fork carriage fitted with a mini hitch coupling.

FEATURES:
• Designed to attach quickly to your mini skid steer loader
• Allows easy fitment of optional accessories
• Enamel paint finish

OPTIONAL Q SERIES ACCESSORIES:

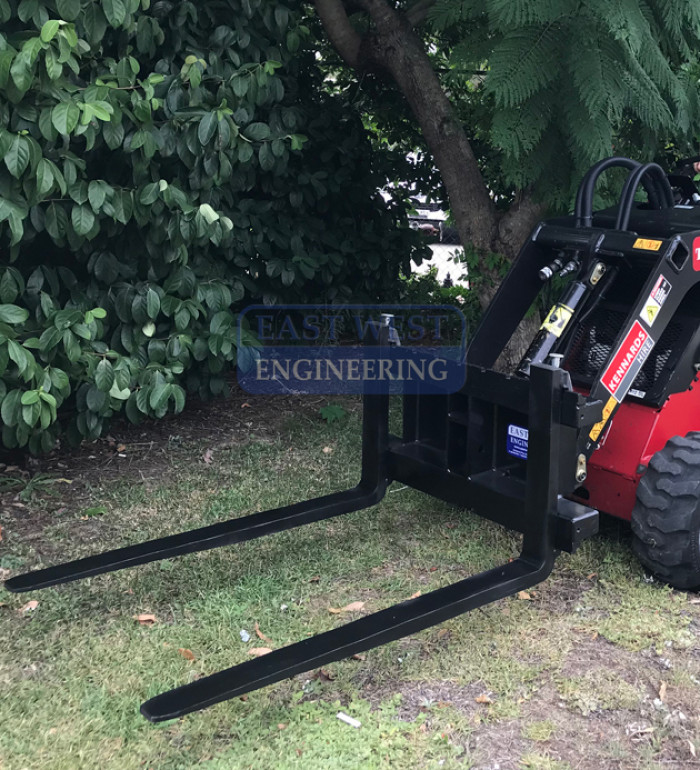

• FA15-107E Fork Arms (Class 2, WLL 1500kg per pair, 100 x 32 x 1070mm long)
• QMC12 Bolt-on Load Guard for additional operator safety

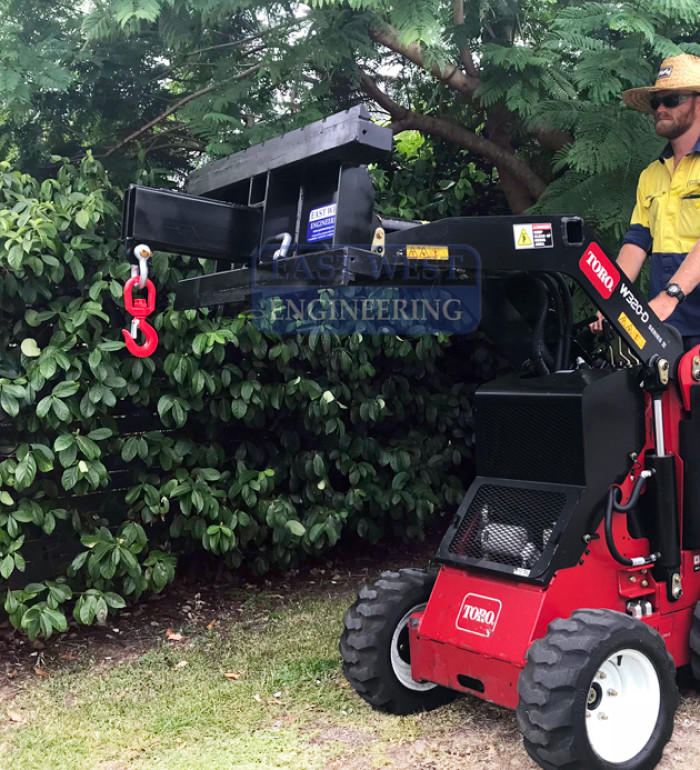

• QEH25LH 420mm Lifting Jib with hook & shackle (WLL 1500kg)
• QEH25LHX 1000mm Lifting Jib with hook & shackle (WLL 800kg)
• QEH25TH Towing Hitch with towball (500kg tow capacity)
• QPH35 Pintle Hook Tow Hitch (500/2500kg tow capacity)
• QRP35 Drop Pin Tow Hitch (500/2500kg tow capacity)
• QHB2 Bale Spear Attachment (2 spears)
• QHBV2 Vertical Bale Spear Attachment (2 spears)

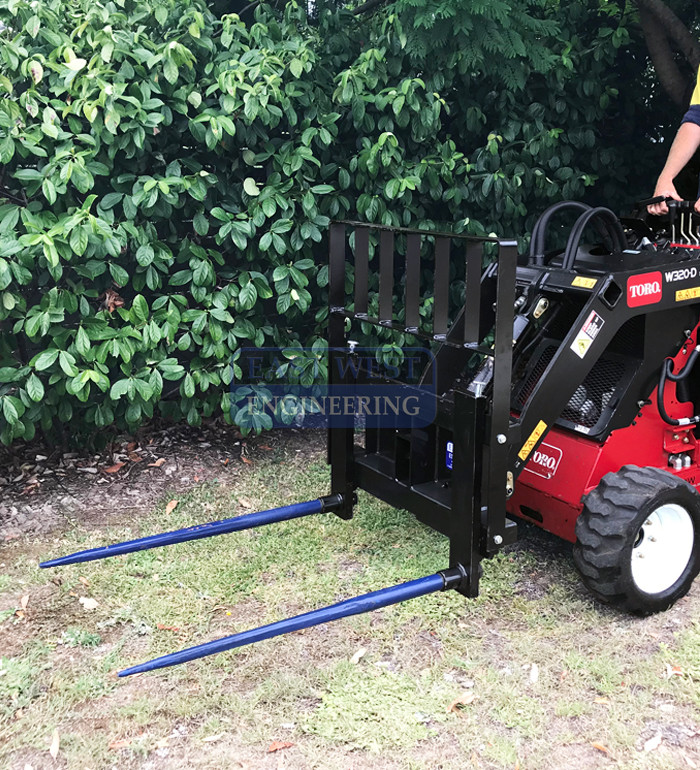

• FLF25-90 Bale Spear & Shank (WLL 250kg, Ø36 x 970mm clear length)
• FLF4-90 Bale Spear & Shank (WLL 400kg, Ø45 x 900mm clear length)
• FLF4-110 Bale Spear & Shank (WLL 400kg, Ø45 x 1100mm clear length)

Check with your manufacturer for compatibility. Actual lifting capacities are determined by the working capacity of the skid steer.

Details

Working Load Limit (WLL)	1200kg
Load Centre	500mm
Dimensions	884 (w) x 406mm (h)
Unit Weight	50kg

* Carriage only
