QHFC20 Hinged Fork Carriage

Add to Favourites

Quick Overview

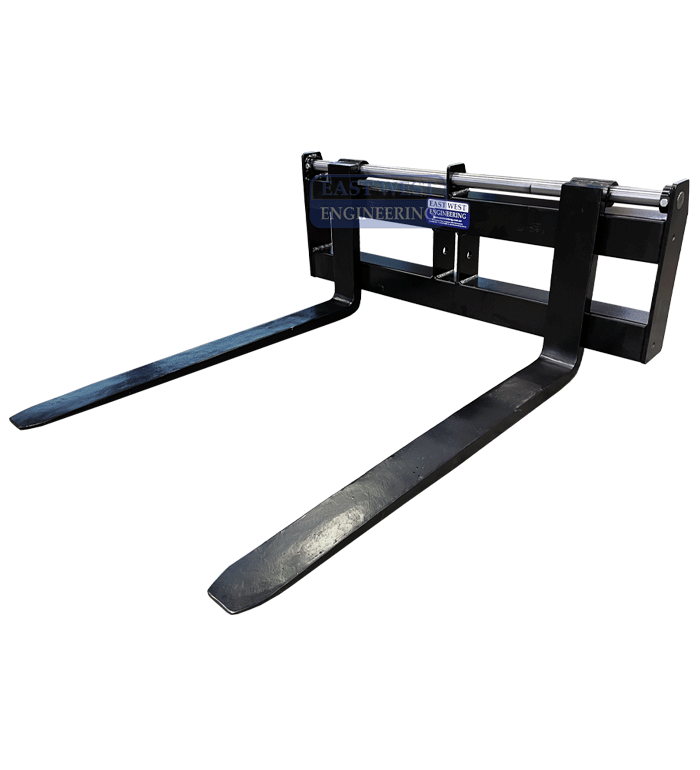

The QHFC20 Hinged Carriage is a heavy duty Class 2 fork carriage designed to suit a tractor, skid steer or track loaders and comes fitted with pin mounted fork tines.

FEATURES:
• Fitted with 125 x 32mm fork tines with a length of 1070mm
• Pin mounted fork tines prevent hook-up when reversing

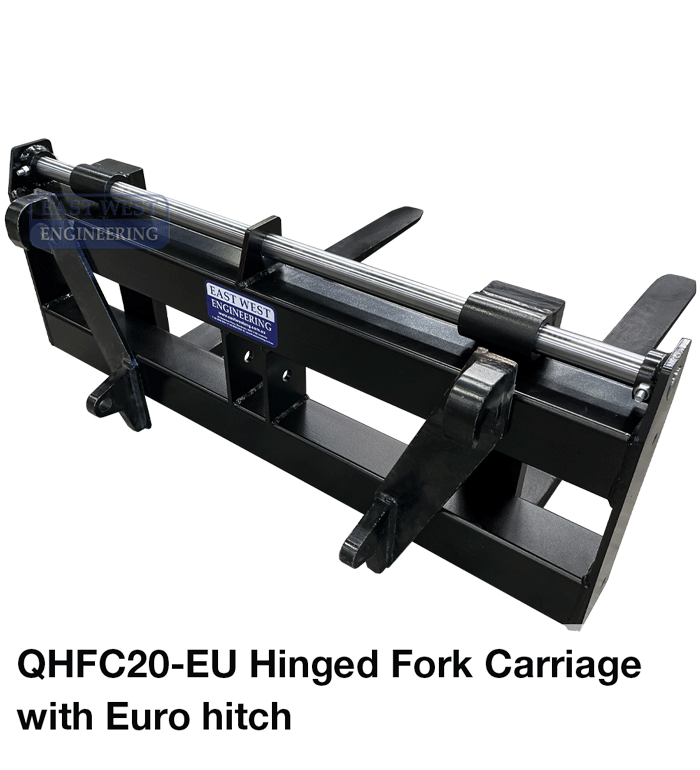

• Various hitch options available on request
• Q-Fit carriage designed for easy fitment of optional accessories
• Enamel paint finish

OPTIONAL Q-FIT ACCESSORIES:

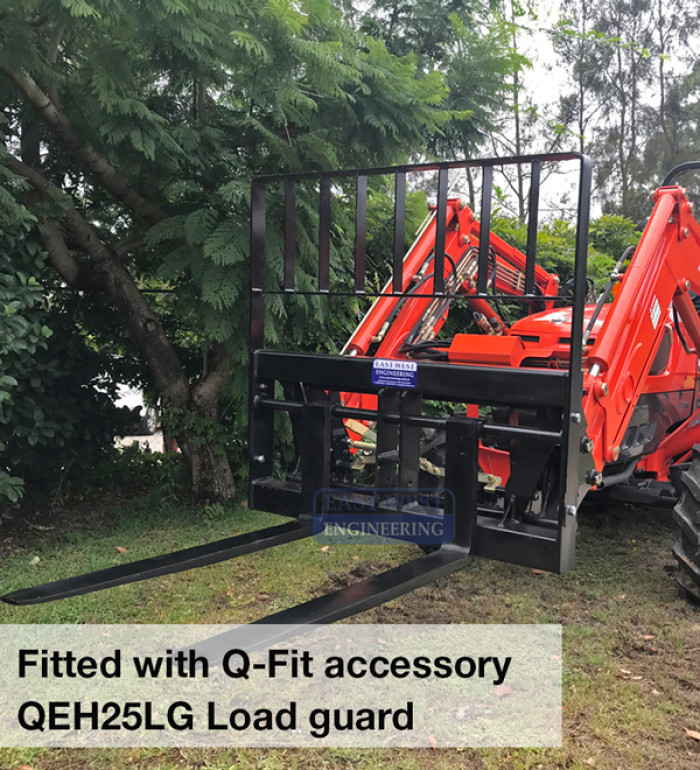

• QEH25LG Bolt-on Load Guard for additional operator safety
• QEH25LH 420mm Lifting Jib with hook & shackle (WLL 1500kg)

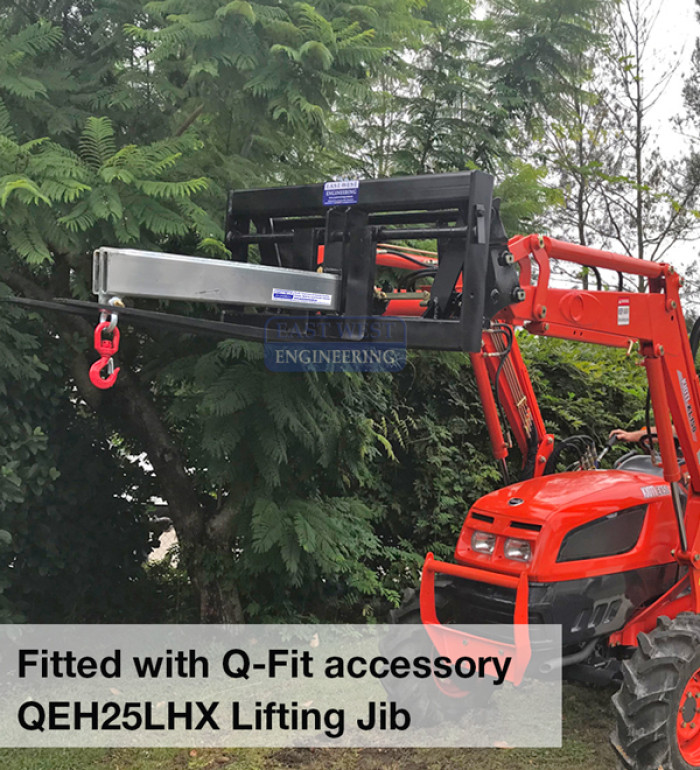

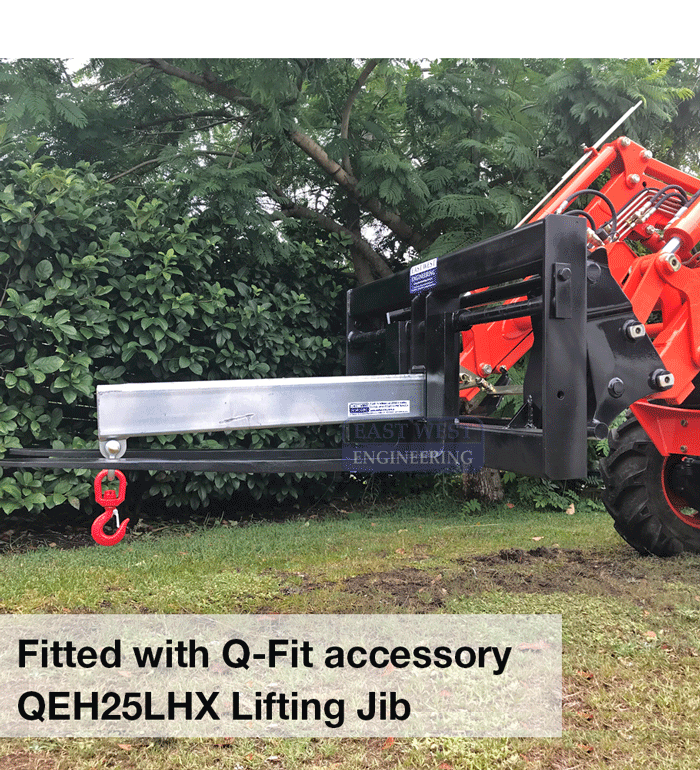

• QEH25LHX 1000mm Lifting Jib with hook & shackle (WLL 800kg)
• QEH25LHX2 1750mm Lifting Jib with hook & shackle (WLL 400kg)
• QEH25TH Towing Hitch with towball (500kg tow capacity)
• QPH35 Pintle Hook Tow Hitch (500/2500kg tow capacity)
• QRP35 Drop Pin Tow Hitch (500/2500kg tow capacity)
• QHB2 Bale Spear Attachment (2 spears)
• QHBV2 Vertical Bale Spear Attachment (2 spears)
• QHB4 Bale Spear Attachment (4 spears)

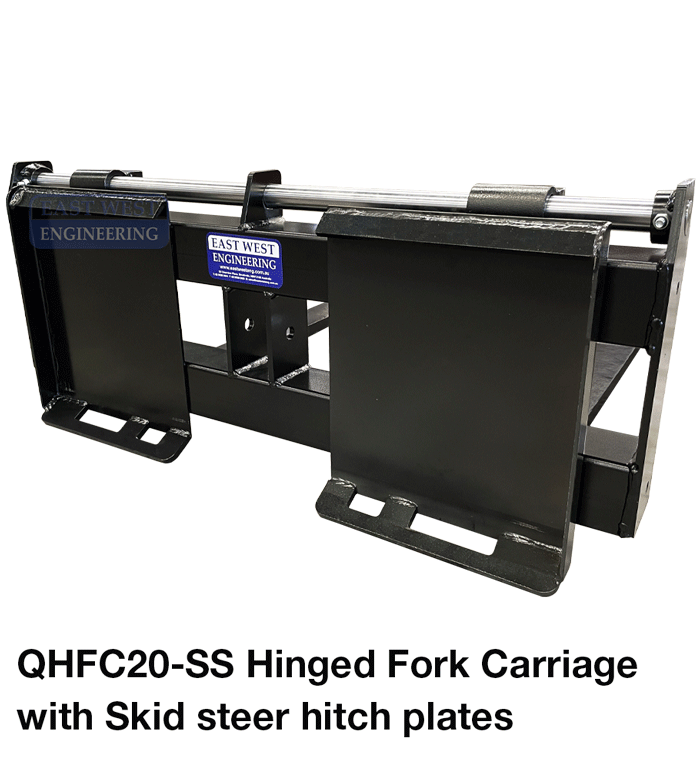

Some models of skid steer do not fit standard skid steer attachments. Check with the manufactuter for compatability. Actual lifting capacities are determined by the working capacity of the skid steer.

Details

	Working Load Limit (WLL)	2000kg
	Load Centre	500mm
	Carriage Width	1200mm
	Max. Fork Tine Spread	1150mm
	Unit Weight	127kg (excl. hitch)
