QFC150 Skid Steer Fork Carriage

Add to Favourites

Quick Overview

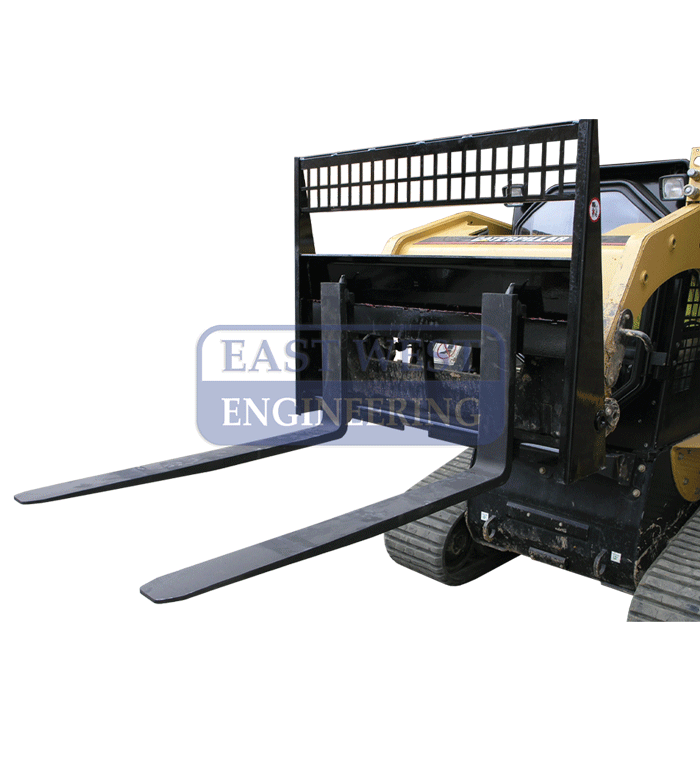

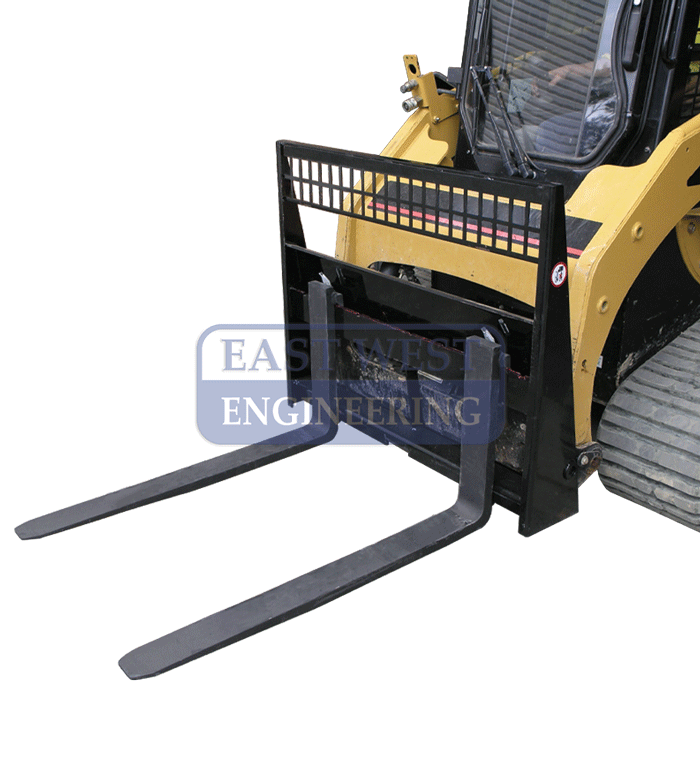

The QFC150 Skid Steer Fork Carriage is a versatile quick release Class 2 fork carriage and fork tine assembly complete with built-in loadguard designed to suit skid steer and track loaders

FEATURES:
• Universal skid steer hitch suits most models incl. CAT, Case, Bobcat, Gehl, Mustang, New Holland
• Heavy duty construction
• Supplied with fork arms (100 x 32 x 1070mm) for handling palletised goods
• Built-in load guard helps secure high loads and provides additional operator protection
• Designed in accordance with AS2359.1 and ISO 23206
• Enamel paint finish

Some models of skid steer do not fit standard skid steer attachments. Check with the manufactuter for compatability. Actual lifting capacities are determined by the working capacity of the skid steer.

Details

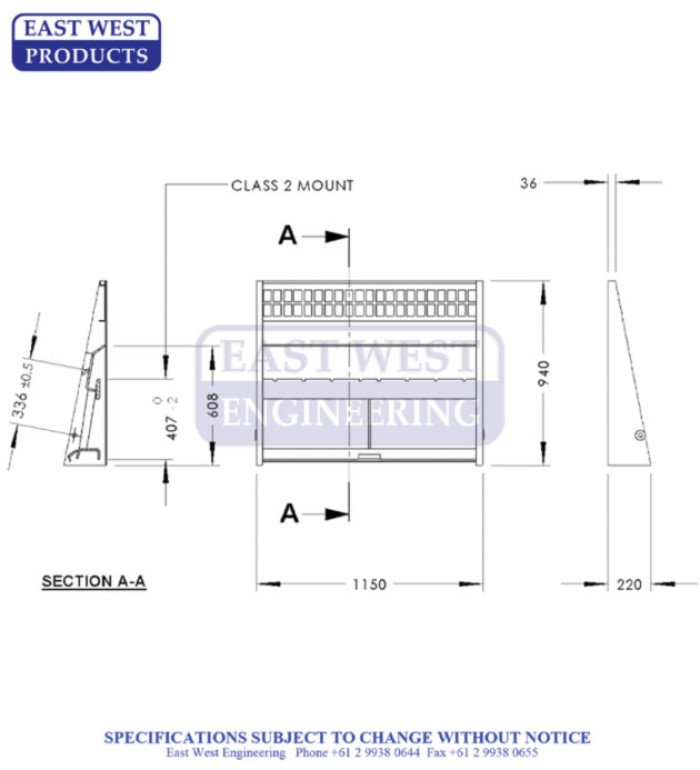

	Working Load Limit (WLL)	1500kg
	Load Centre	500mm
	Mounting Class	II
	Carriage Width	1150mm
	Load Guard Height	940mm
	Fork Arm Dimensions	100 x 32 x 1070mm
	Unit Weight	156kg
