QFB Skid Steer Bale Spear Carriage

Add to Favourites

Quick Overview

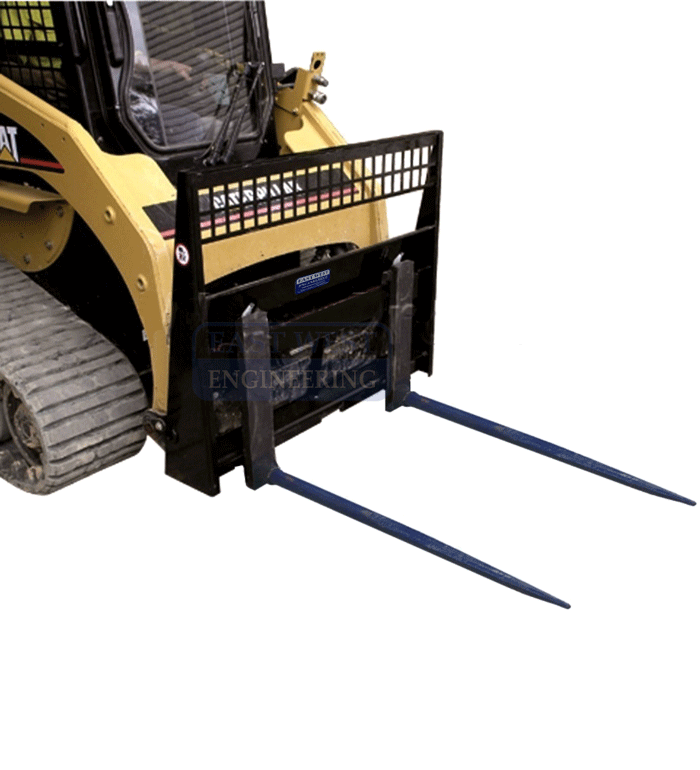

The QFB Skid Steer Bale Spear Carriage is a versatile quick release Class 2 carriage complete with built-in loadguard and 2 bale spear attached. The unique bale spear design allows for easy adjustment to any position on the carriage and can be removed quickly and replaced with optional fork arms (FA15-107) which turns the carriage into pallet forks. Fitted with a universal skid steer hitch this unit is designed to suit skid steer and track loaders.

FEATURES:
• Universal skid steer suits most models incl. CAT, Case, Bobcat, Gehl, Mustang, New Holland
• Heavy duty construction
• Supplied with bale spears for safe and easy handling of bales (round or square)
• Spears taper from front to back for easier penetration and removal from the bale
• Hook on bale spear design can be easily removed and replaced with fork arms
• Built-in load guard helps secure high loads and provides additional operator protection
• Designed in accordance with AS2359.1 and ISO 23206
• Enamel paint finish

Some models of skid steer do not fit standard skid steer attachments. Check with the manufactuter for compatability. Actual lifting capacities are determined by the working capacity of the skid steer.

Details

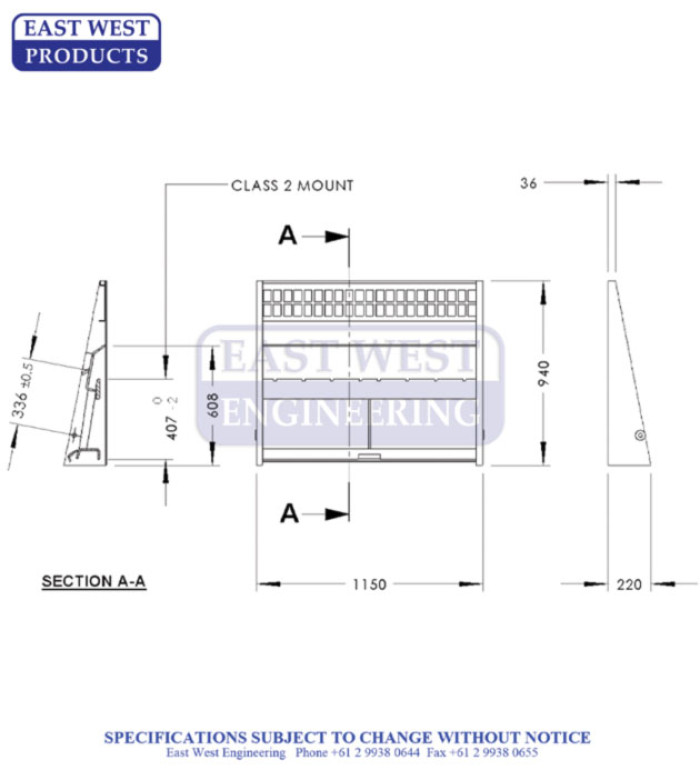

Model	Carriage WLL @ LC (kg @ mm)	Mounting Class	Carriage Width (mm)	Load Guard Height (mm)	Spear WLL @ LC (kg @ mm)	Spear Length (mm)	Spear Clear Tine Length (mm)	Spear Diameter (mm)	Sleeve Size	Unit Weight (kg)
QFB2590	1500@ 500	II	1150	940	250@500	1100	970	36	Conus I	148
QFB490	1500@500	II	1150	940	400@500	1050	900	45	Conus II	155
QFB4110	1500@500	II	1150	940	400@500	1250	1100	45	Conus II	157
