QEH25BC Hay Bale Grab

Add to Favourites

Quick Overview

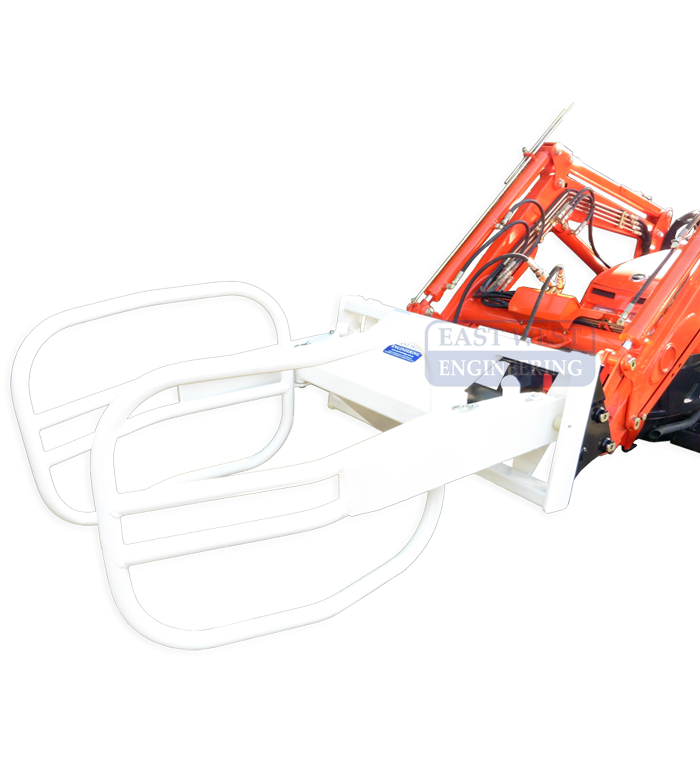

The QEH25BC Hay Bale Grab is designed for the easy handling and stacking of bales

FEATURES:
• Quick and easy transportation of bales
• Available in a range of models to suit machinery hitch type
• Ideal for wrapped bales of hay, cotton, silage or other bundled materials
• Curved arms firmly clamp the bale without damage to the wrapping
• Slim arm design allows close bale stacking
• Enamel paint finish

Also available in models to suit other hitch types on request

Hoses not included

Details

	Working Load Limit (WLL)	2500kg @ 500mm LC
	Alternative Rating	1250kg @ 1000mm LC
	Carriage Length	1200mm
	Opening Range	950-1650mm
	Arm Dimensions	1000(l) x 750(h)mm
	Unit Weight	255kg
