QEH25 Euro Hitch Carriage

Add to Favourites

Quick Overview

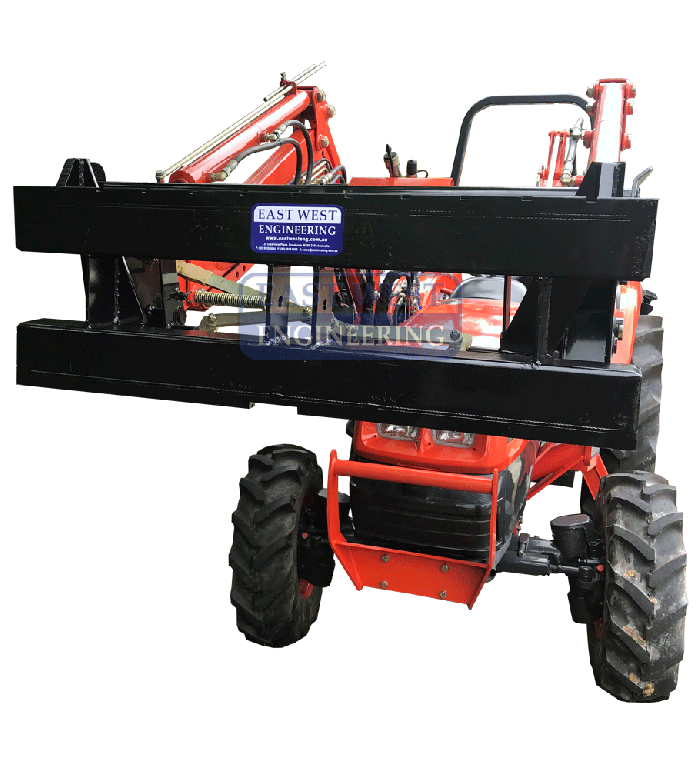

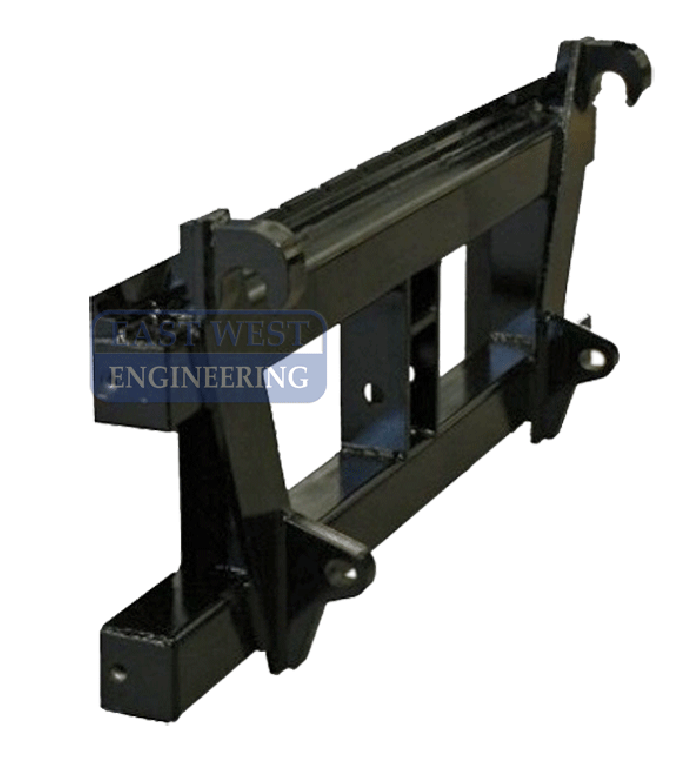

The QEH25 Euro Hitch Carriage is designed for the easy and safe handling of palletised goods when fitted to a tractor or loader fitted with a Euro 8 quick hitch.

FEATURES:
• Class 2, WLL 2500kg carriage
• Suits tractor or loader fitted with a Euro 8 quick hitch
• Comes fitted with Euro 8 hitch lugs for easy connection
• Q-Fit carriage designed for easy fitment of optional accessories
• High visibility design allows for safe operation
• Designed in accordance with AS2359.1 and ISO 23206

OPTIONAL Q SERIES ACCESSORIES:

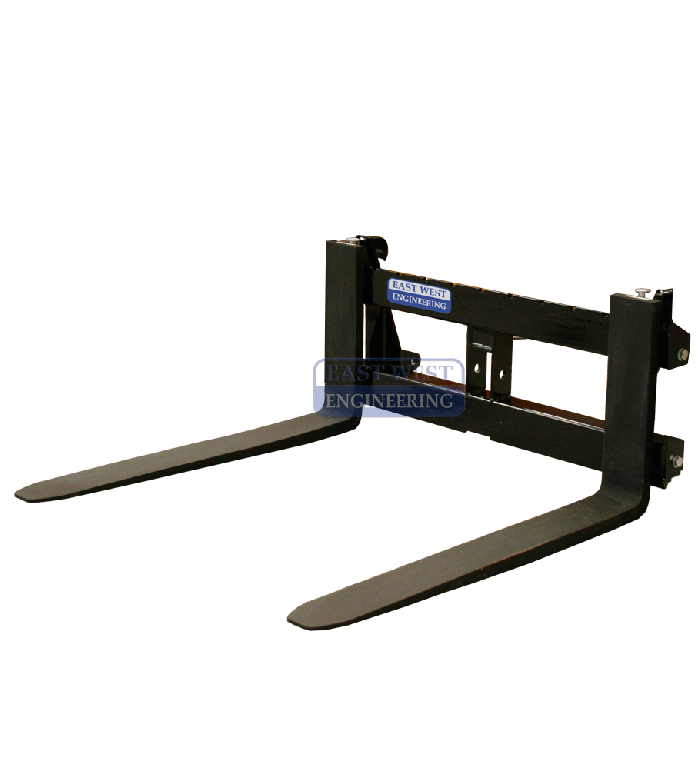

• FA25-107E Fork Arms (Class 2, WLL 2500kg per pair, 125 x 35 x 1070mm long)

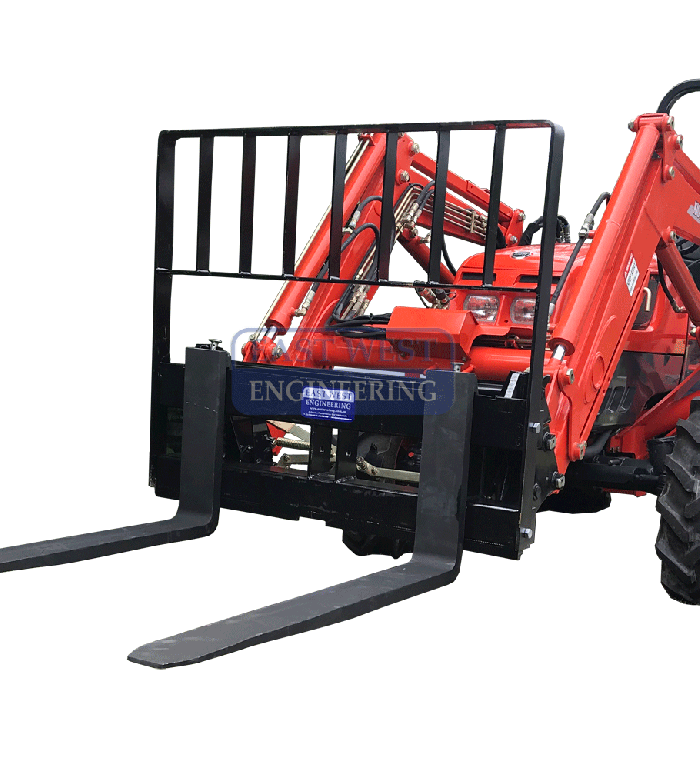

• QEH25LG Bolt-on Load Guard for additional operator safety

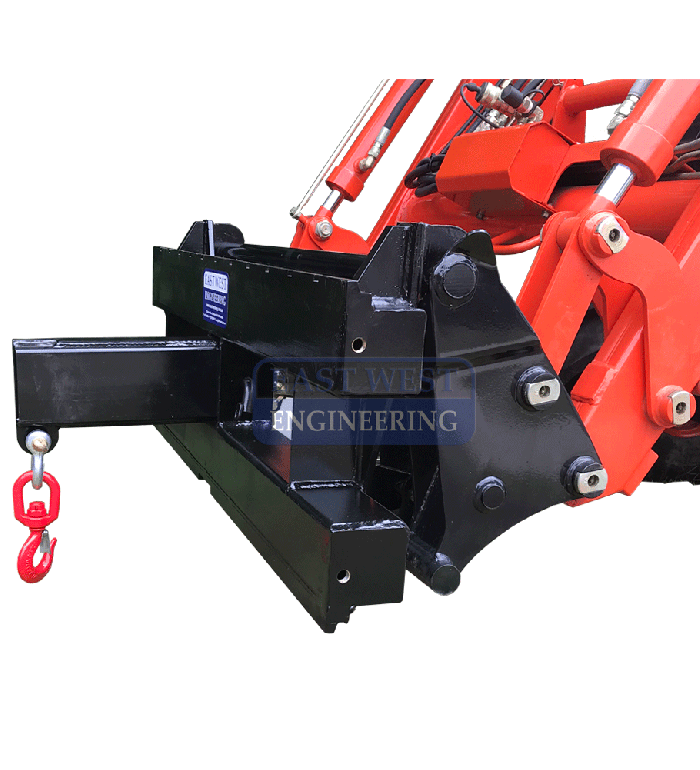

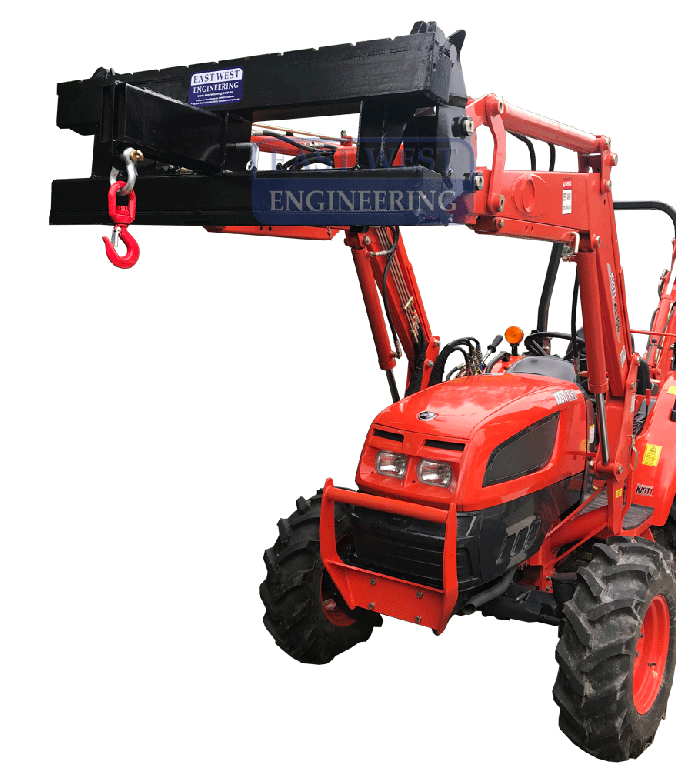

• QEH25LH 420mm Lifting Jib with hook & shackle (WLL 1500kg)
• QEH25LHX 1000mm Lifting Jib with hook & shackle (WLL 800kg)
• QEH25LHX2 1750mm Lifting Jib with hook & shackle (WLL 400kg)

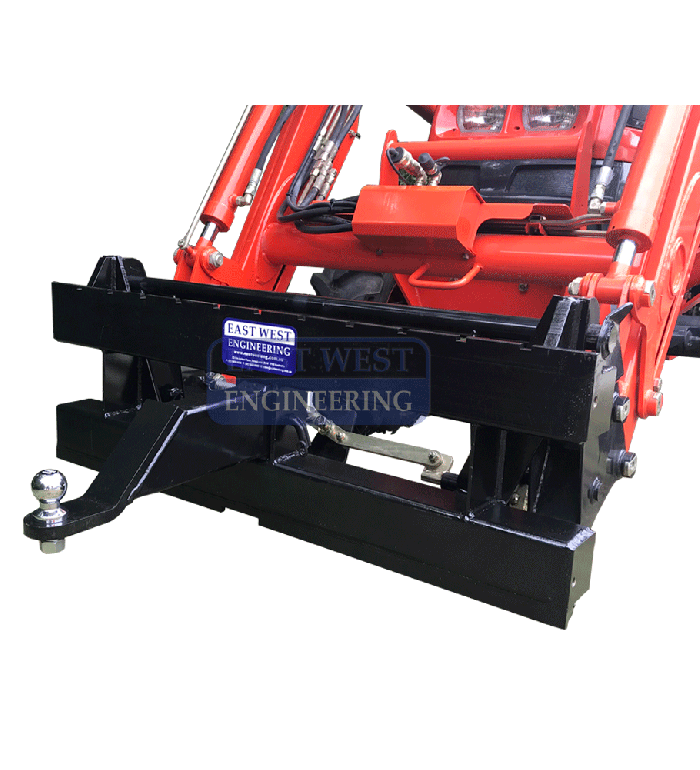

• QEH25TH Tow Hitch with towball (500kg tow capacity)
• QPH35 Pintle Hook Tow Hitch (500/2500kg tow capacity)
• QRP35 Drop Pin Tow Hitch (500/2500kg tow capacity)
• QHB2 Bale Spear Attachment (2 spears)
• QHBV2 Vertical Bale Spear Attachment (2 spears)
• QHB4 Bale Spear Attachment (4 spears)

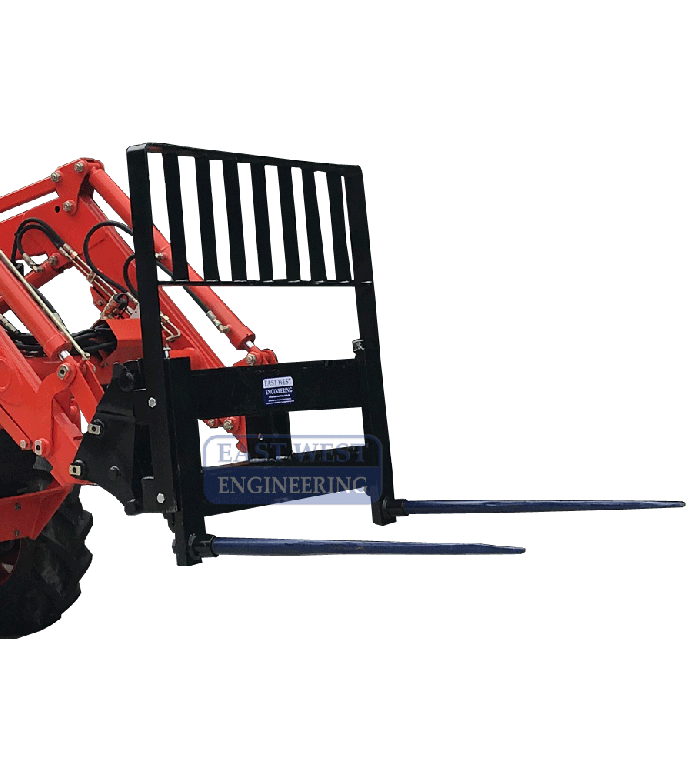

• FLF25-90 Bale Spear & Shank (WLL 250kg, Ø36 x 970mm clear length)
• FLF4-90 Bale Spear & Shank (WLL 400kg, Ø45 x 900mm clear length)
• FLF4-110 Bale Spear & Shank (WLL 400kg, Ø45 x 1100mm clear length)

- This hitch is for Euro 8 only
- Some tractor models do not fit standard euro hitch attachments. Check with the manufacturer for compatibility
- For Burder loaders, see models QBHS25 (Burder Style Small Hitch Carriage) & QBHL25 (Burder Style Large Hitch Carriage)
- For Challenge loaders, see model QCH25 (Challenge Style Hitch Carriage)
- Maximum load rating given is for the attachments only. Actual lifting capacities are determined by the working capacity of the tractor.
- Rating of the tractor should be confirmed by the truck manufacturer and residual capacity reduced if required

Details

	Working Load Limit (WLL)	2500kg
	Load Centre	500mm
	Carriage Width	1200mm
	Unit Weight	66kg
