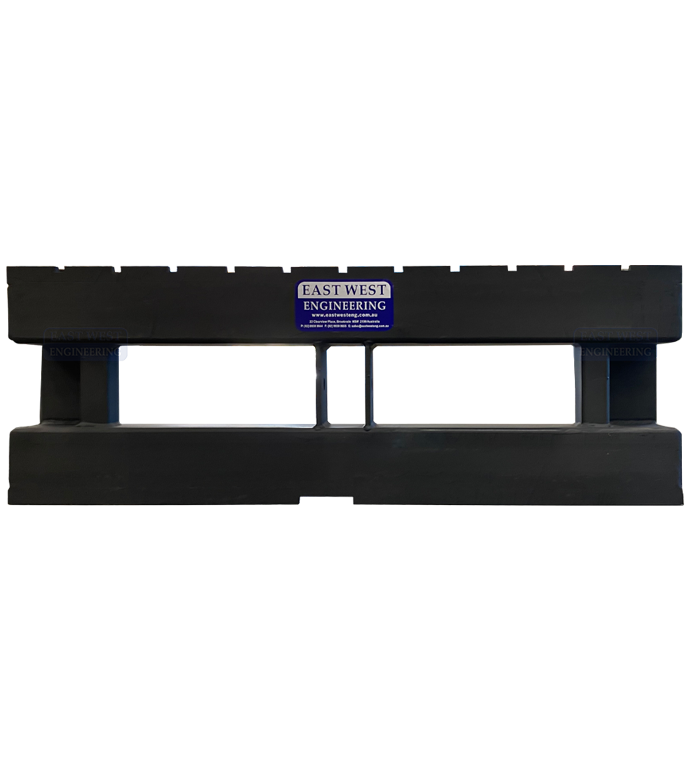

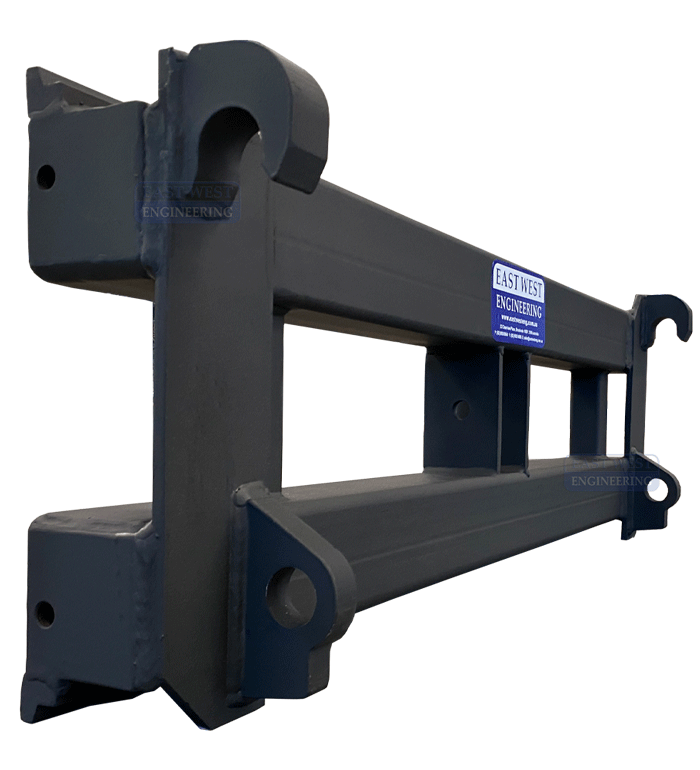

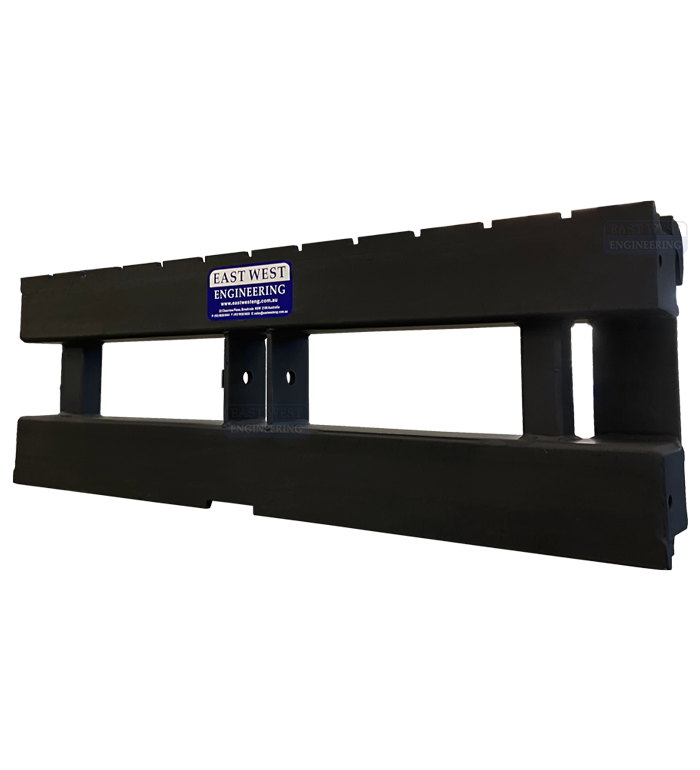

QCH25 Challenge Style Hitch Carriage

Add to Favourites

Quick Overview

The QCH25 Challenge Style Hitch Carriage is designed to suit Challenge loaders where fork tines or other attachments are to be fitted.

FEATURES:
• Suits Challenge loaders
• Challenge style lugs are fitted to rear of frame for easy connection and removal
• Designed for fast and easy fitment of Q Series accessories
• Made from high grade steel

OPTIONAL Q SERIES ACCESSORIES:
• FA25-107E Fork Arms (Class 2, WLL 2500kg per pair, 125 x 35 x 1070mm long)
• QEH25LG Bolt-on Load Guard for additional operator safety
• QEH25LH 420mm Lifting Jib with hook & shackle (WLL 1500kg)
• QEH25LHX 1000mm Lifting Jib with hook & shackle (WLL 800kg)
• QEH25LHX2 1750mm Lifting Jib with hook & shackle (WLL 400kg)
• QEH25TH Towing Hitch with towball (500kg tow capacity)
• QPH35 Pintle Hook Tow Hitch (500/2500kg tow capacity)
• QRP35 Drop Pin Tow Hitch (500/2500kg tow capacity)
• QHB2 Bale Spear Attachment (2 spears)
• QHBV2 Vertical Bale Spear Attachment (2 spears)
• QHB4 Bale Spear Attachment (4 spears)
• FLF25-90 Bale Spear & Shank (WLL 250kg, Ø36 x 970mm clear length)
• FLF4-90 Bale Spear & Shank (WLL 400kg, Ø45 x 900mm clear length)
• FLF4-110 Bale Spear & Shank (WLL 400kg, Ø45 x 1100mm clear length)

This hitch is for Challenge loaders only. Check measurements for compatibility with your machine.

Details

	Working Load Limit (WLL)	2500kg
	Load Centre	500mm
	Carriage Width	1200mm
	Lost Load	145mm
	Unit Weight	65kg
	Horizontal C of G	90mm
	Vertictal C of G	-142mm
