CSPN-SS Goods Cage - Sheet Sides

Add to Favourites

Quick Overview

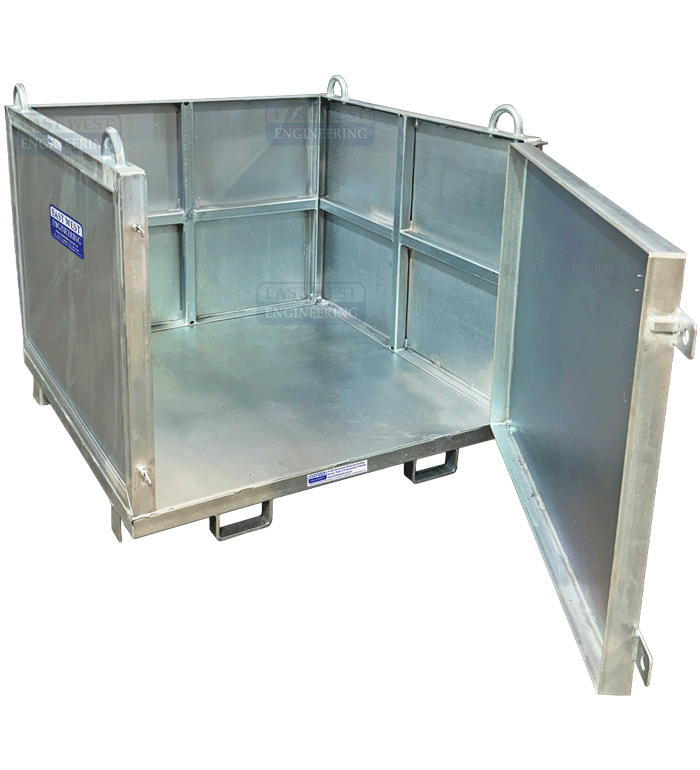

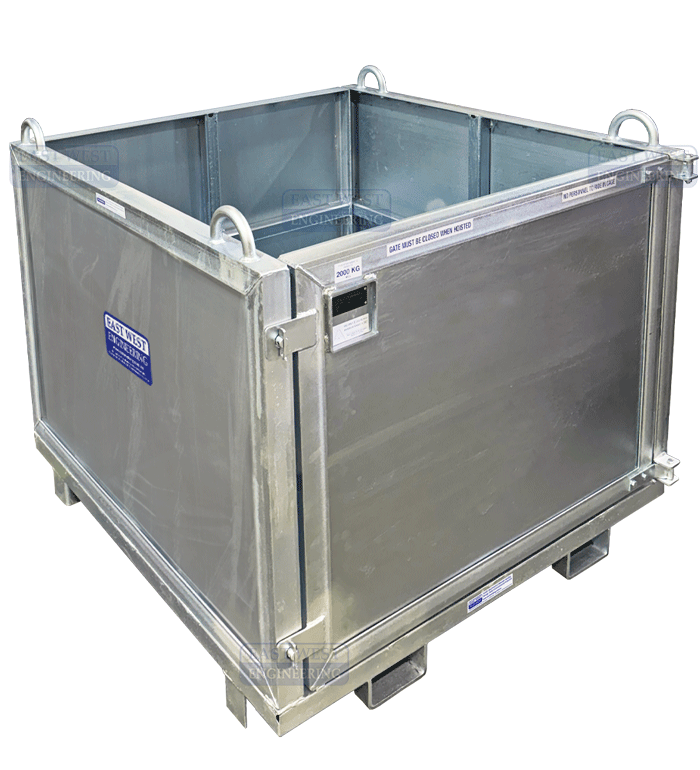

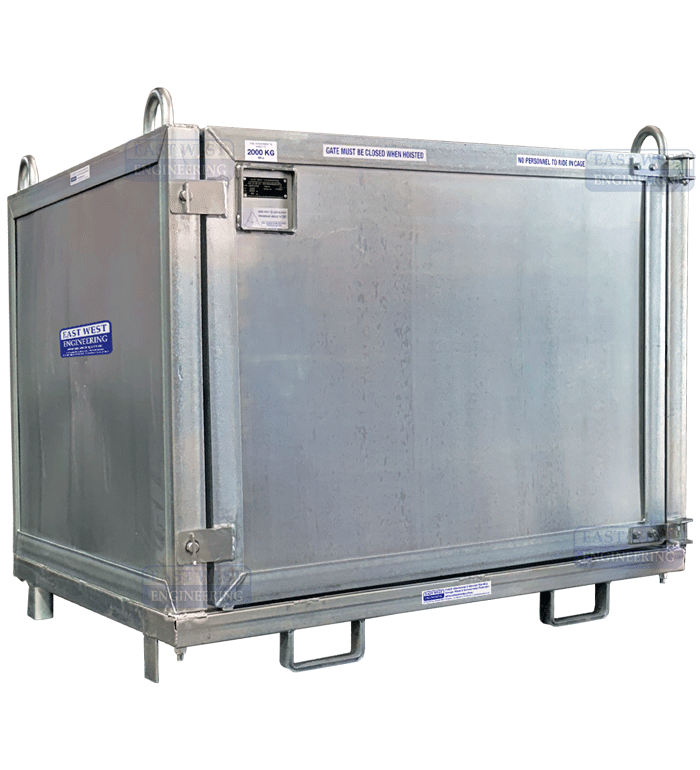

The CSPN-SS Sheet Side Goods Cage has been designed to safely store and transport loose or palletised goods by crane or forklift.

FEATURES:
• Suitable for use with loose or palletised goods
• Available in 1T and 2T capacity models
• Suits a 1200mm square pallet
• Sheet sides provide additional load protection
• Fully opening front gate for easy loading and unloading of palletised goods
• Stacking feet allow cages to be stacked 3 high when empty or 2 high when loaded
• Fitted with 4 point lift crane lugs and fork stirrups
• Optional Lifting Frame (CSPN-CL) enables single point lifting where head height is an issue
• Also available in model with mesh sides (CSPN)
• Zinc finish

Supplied standard as a fully assembled unit

Chains not included.

EAST WEST ENGINEERING ARE THE DESIGNER OF THIS PRODUCT AND HAVE PROOF OF CONFORMANCE TO AUSTRALIAN STANDARDS AND CERTIFICATION. BEWARE OF COPY PRODUCTS

Details

Model	Working Load Limit (kg)	Overall Dimensions (mm)	Gate Opening (mm)	Fork Stirrup Size (mm)	Fork Stirrup Centres (mm)	Unit Weight (kg)
CSPN-1TSS	1000	1350 x 1350 x 1155	1250	155 x 60	680	260
CSPN-2TSS	2000	1350 x 1350 x 1200	1220	155 x 75	680	310
