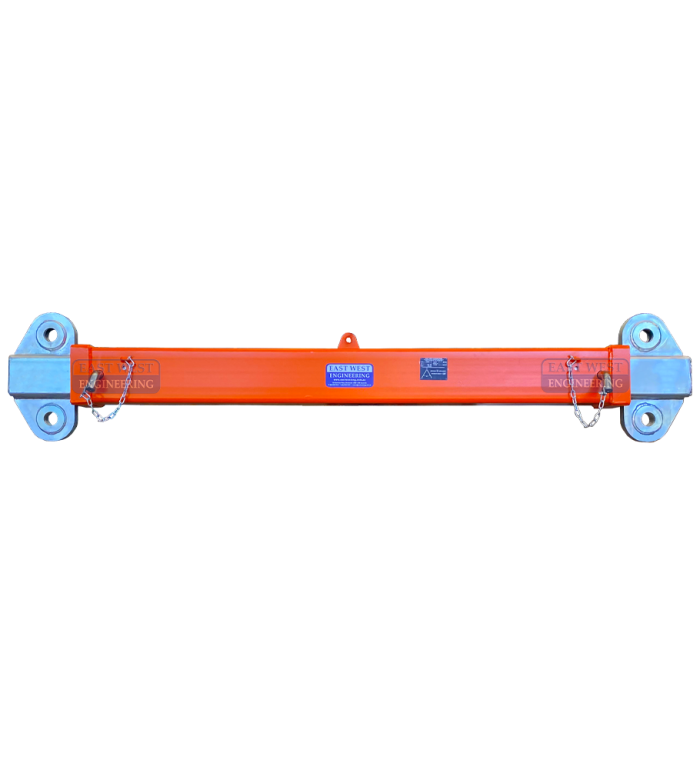

CEH2439 Spreader Beam (40T)

Add to Favourites

Quick Overview

The CEH2439 Crane Spreader Beam is designed to end lift long, heavy loads using a 2 leg chain sling as a ‘Spreader Beam’ by overhead crane.

FEATURES:
• Used to lift long heavy loads up to 40T
• End lift as a spreader beam via the end hooks and 2 leg chain sling

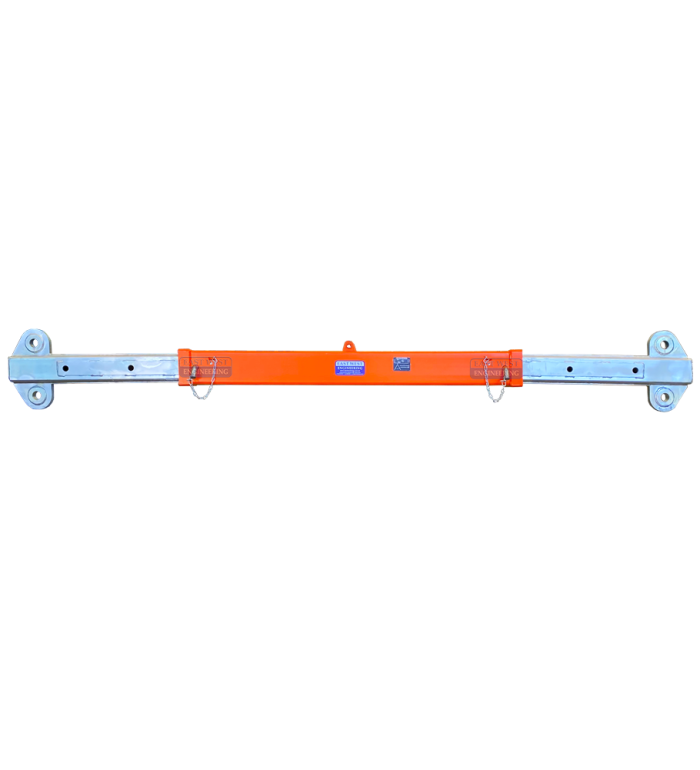

• Load connection points are adjustable to 3 positions

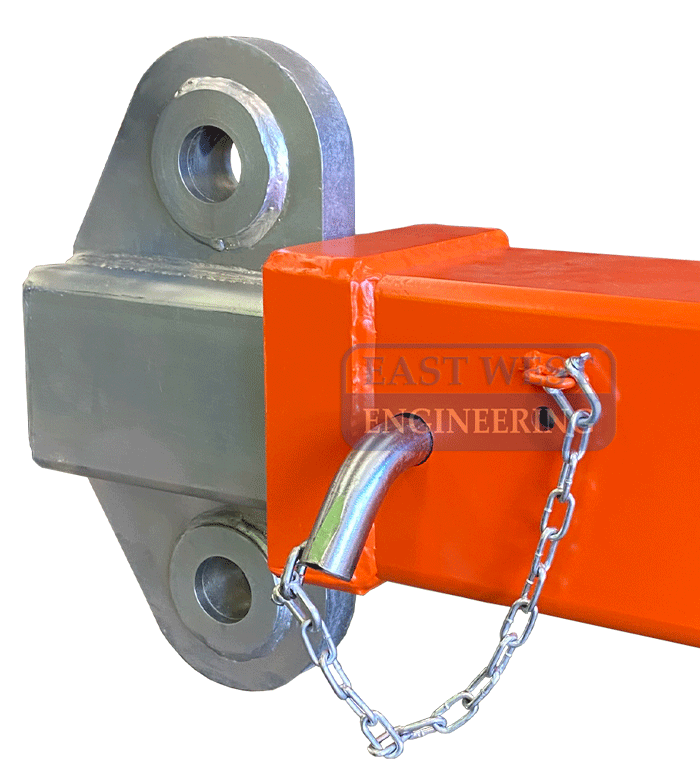

• Safety pins used to securely lock extendable arm in position
• Centre lifting point provided for transporting spreader beam
• 2 leg chain sling distributes the load weight making it more stable
• Sling angle can be controlled allowing you to reduce the risk of load damage
• Supplied with 2 retaining brackets for storage
• Certified to the relevant Australian Standards
• Zinc finish on extendable arms, enamel paint finish on main body

* Not for use with a forklift.
* Strictly for use as a spreader beam. Centre lifting point for is provided for transport purpose only, not for lifting under load.
* Lifting hooks and shackles NOT supplied.

EAST WEST ENGINEERING ARE THE DESIGNER OF THIS PRODUCT AND HAVE PROOF OF CONFORMANCE TO AUSTRALIAN STANDARDS AND CERTIFICATION. BEWARE OF COPY PRODUCTS

Details

Rated Capacity (RC)				Unit Weight (kg)
when used as	Fully Retracted (LC@2210mm)	Middle Position (LC@2970mm)	Fully Extended (LC@3730mm)	Unit Weight (kg)
Length	2500mm	3260mm	4020mm
Spreader Beam	40,000kg	40,000kg	20,000kg	308

NOTE: Working load limit has been calculated on a 60° chain angle setup.
