CCD Machinery Lifting Platform

  • CCD-9T-CEM Machinery Lifting Platform CCD-9T-CEM Machinery Lifting Platform
  • CCD-9T-CEM Machinery Lifting Platform CCD-9T-CEM Machinery Lifting Platform
  • CCD-9T-CEM Machinery Lifting Platform CCD-9T-CEM Machinery Lifting Platform
  • CCD Machinery Lifting Platform CCD Machinery Lifting Platform
  • CCD Machinery Lifting Platform CCD Machinery Lifting Platform

Quick Overview

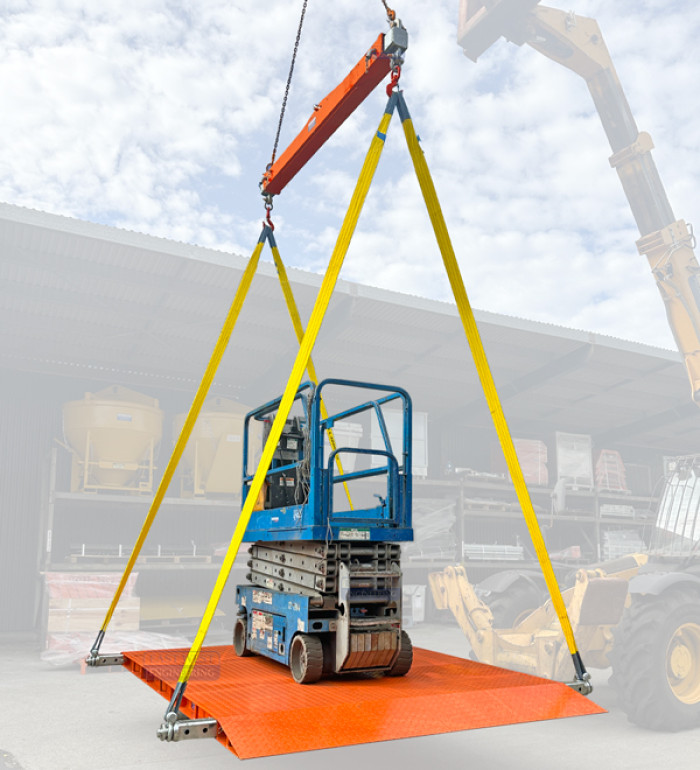

The heavy duty CCD Machinery Lifting Platform is designed to safely lift machinery, vehicles, equipment and other heavy or oversized loads by crane. Also ideal for use as a helicopter transport deck.

FEATURES:
• Allows easy transport and loading of machinery, vehicles, heavy equipment and other heavy or oversized loads

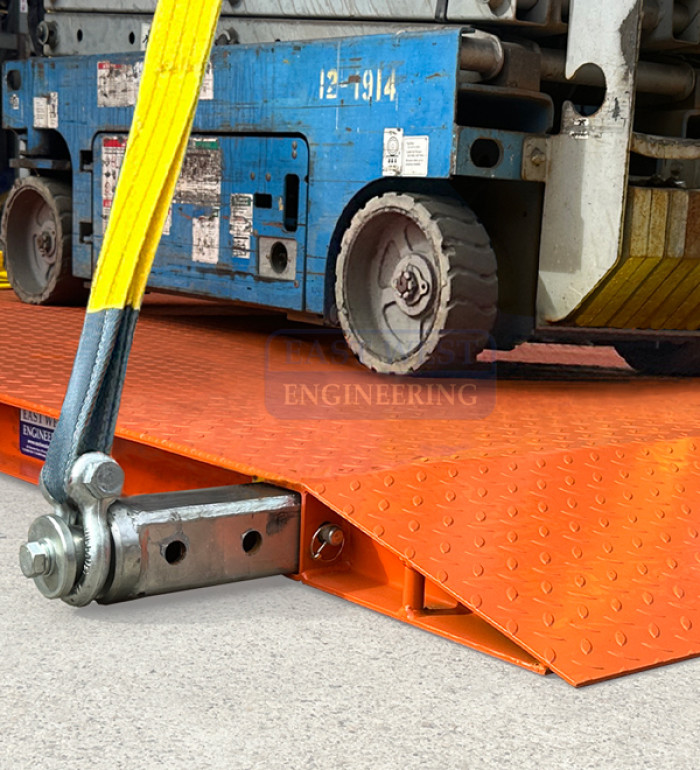

• Dual ramped ends allow easy drive-on, drive-off access
• Extendable crane pick up points allow for oversized loads
• 4 point lift lugs and fork pockets for easy transport and placement
Multiple tie down points allow various load sizes to be safely secured
• Reinforced underside to eliminate steel fatigue
• Can be transported on a standard width truck
• Durable non-slip tread plate

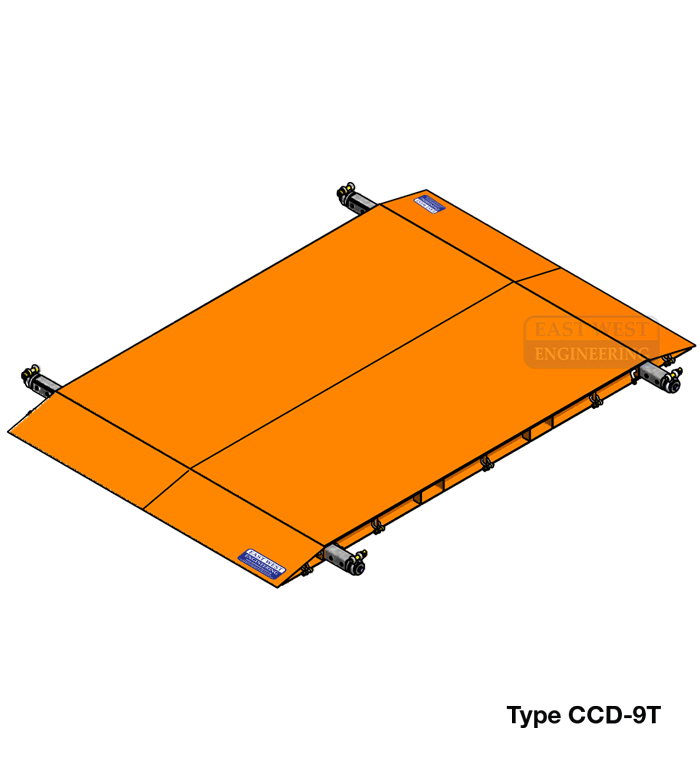

• Model (CCD) supplied as platform only

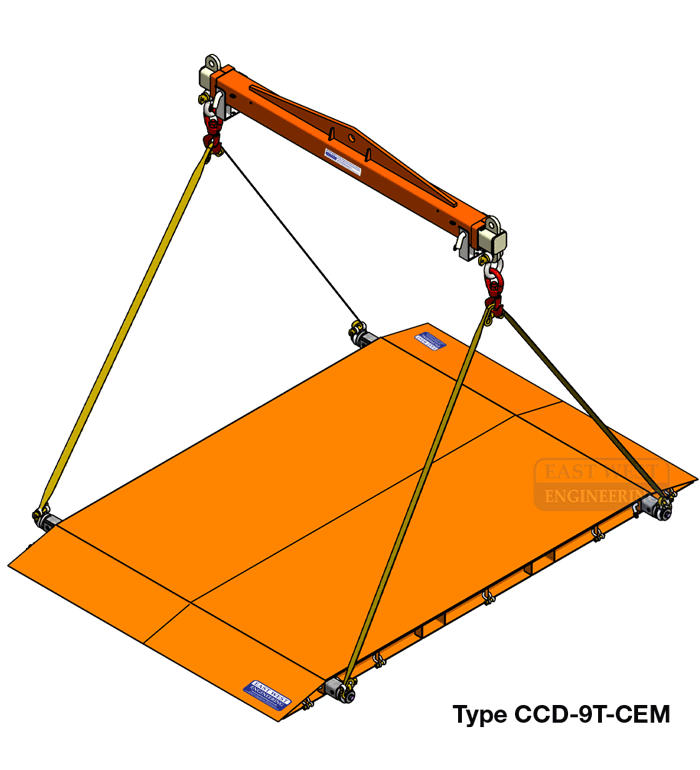

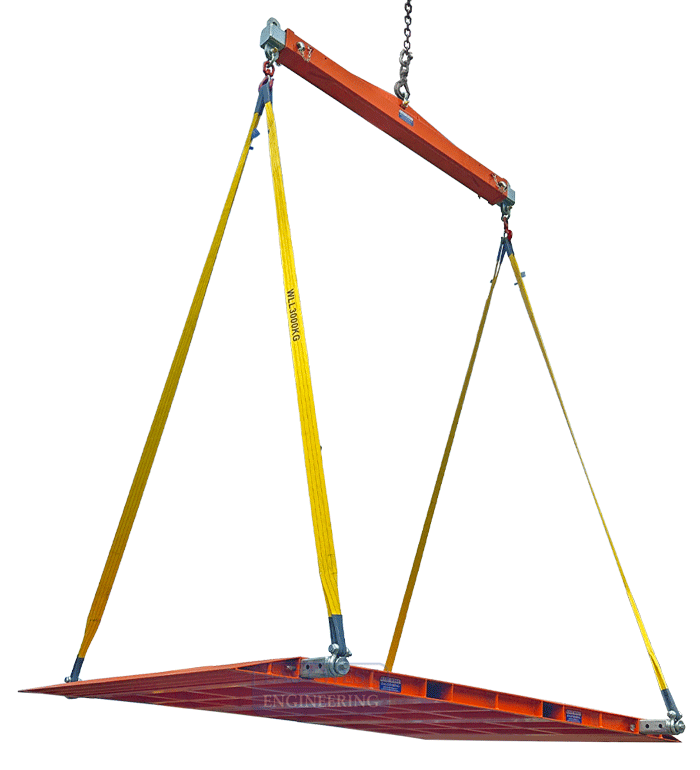

• Model (CCD-CEM) supplied with spreader beam and slings to allow a 4 point lift without contact of load, maximising usable platform space

• Zinc finish

Details


 CCD-3T  CCD-3T-CEL  CCD-9T  CCD-9T-CEM
 Working Load Limit (Platform)
 3000kg  3000kg  9000kg  9000kg
 Deck Size  3570(l) x 2300(w) mm 3570(l) x 2300(w) mm 3570(l) x 2300(w) mm 3570(l) x 2300(w) mm
 Spreader Beam  No  Yes  No  Yes
 Unit Weight (Platform / Spreader)  670kg  670kg / 140kg  805kg  805kg / 218kg
 Fork Pocket Size  180 x 80mm  180 x 80mm  180 x 80mm  180 x 80mm
 Fork Pocket Centres     930mm  930mm  930mm  930mm

NOTE: The spreader beam supplied in models CCD-3T-CEL (CEL2439) and CCD-9T-CEM (CEM2439) can be used separately.  See below Rated Capacity table for supplied spreader beam.


CEL2439
Rated Capacity (RC) - supplied with CCD-3T-CEL
Unit
Weight
(kg)
when used as

Fully Retracted
(LC@2405mm)
Middle Position
(LC@3165mm)
Fully Extended
(LC@3925mm)
Length
2500mm  3260mm
4020mm
Lifting Beam 4500kg
2500kg  1300kg  140
Spreader Beam 9000kg
7200kg
5600kg


CEM2439
Rated Capacity (RC) - supplied with CCD-9T-CEM
Unit
Weight
(kg)
 When used as

Fully Retracted
(LC@2380mm)
Middle Position
(LC@3140mm)
Fully Extended
(LC@3900mm)
Length
2500mm  3260mm
4020mm
 Lifting Beam 6000kg
4500kg  2400kg  218
 Spreader Beam 10,000kg
10,000kg 10,000kg
